Section 13 (Battery, Charging System And Starting System (12-Volt) - Hybrid (Hp6))
>>
Schematic Wiring Diagrams
>>
Starting and Charging Wiring Schematics
>>
Charging System (HP6)
Charging System (HP6)
WARNING:
This page is about a different variant/trim than selected.

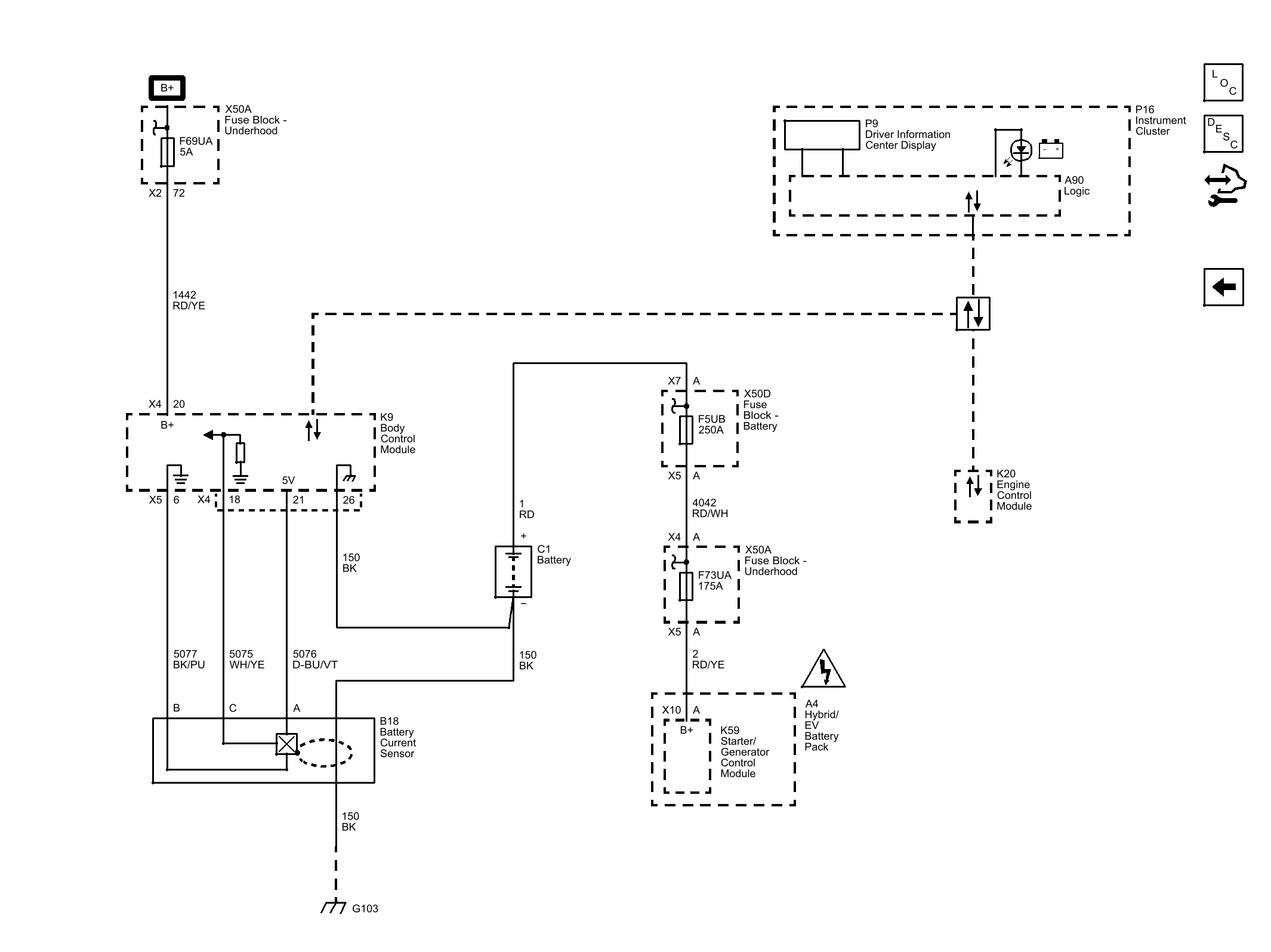

Fig 1: Charging (HP6)
Courtesy of GENERAL MOTORS COMPANY
