Front Wheel Seal Kit (Gen 1& 2)

WARNING: This page is about a different variant/trim than selected.

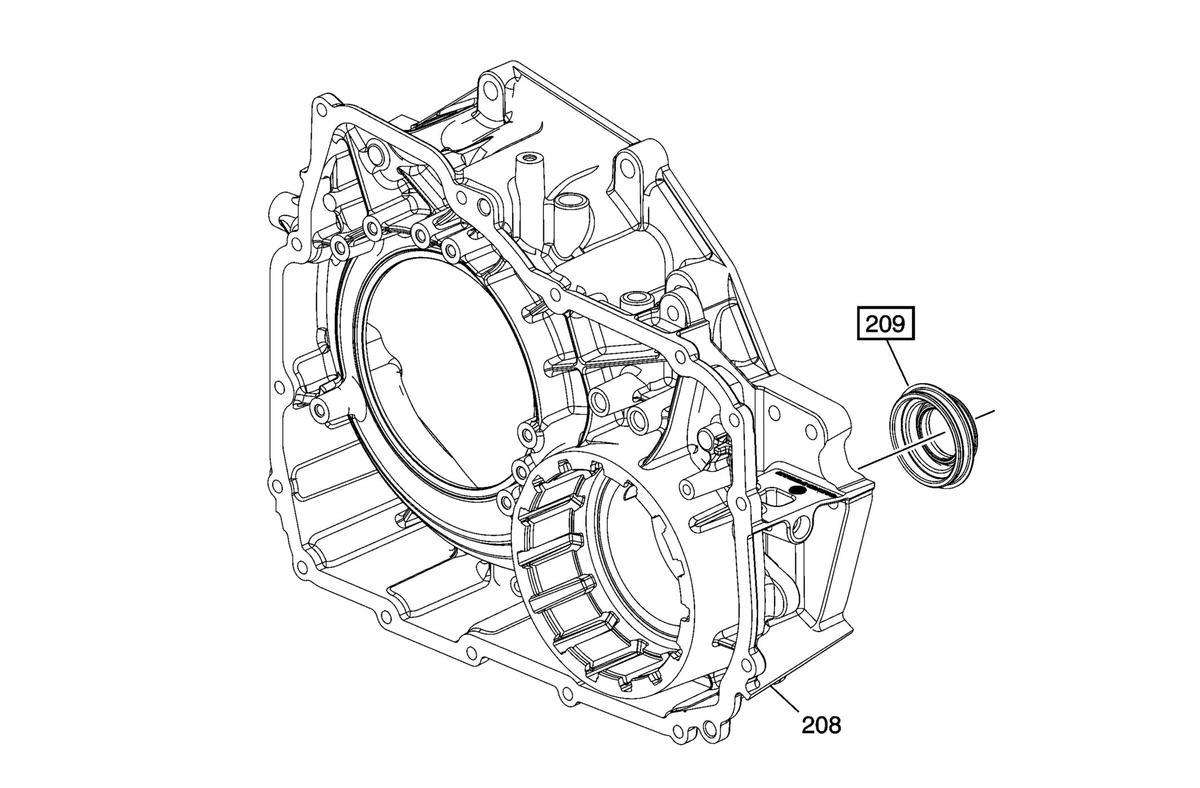

Fig 1: Front Wheel Seal Kit (Gen 1 And 2) 19258415

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

Front Wheel Seal Kit (Gen 1& 2)

Callout	Quantity	Component Name
209	1	Front Wheel Drive Shaft Oil Seal Assembly

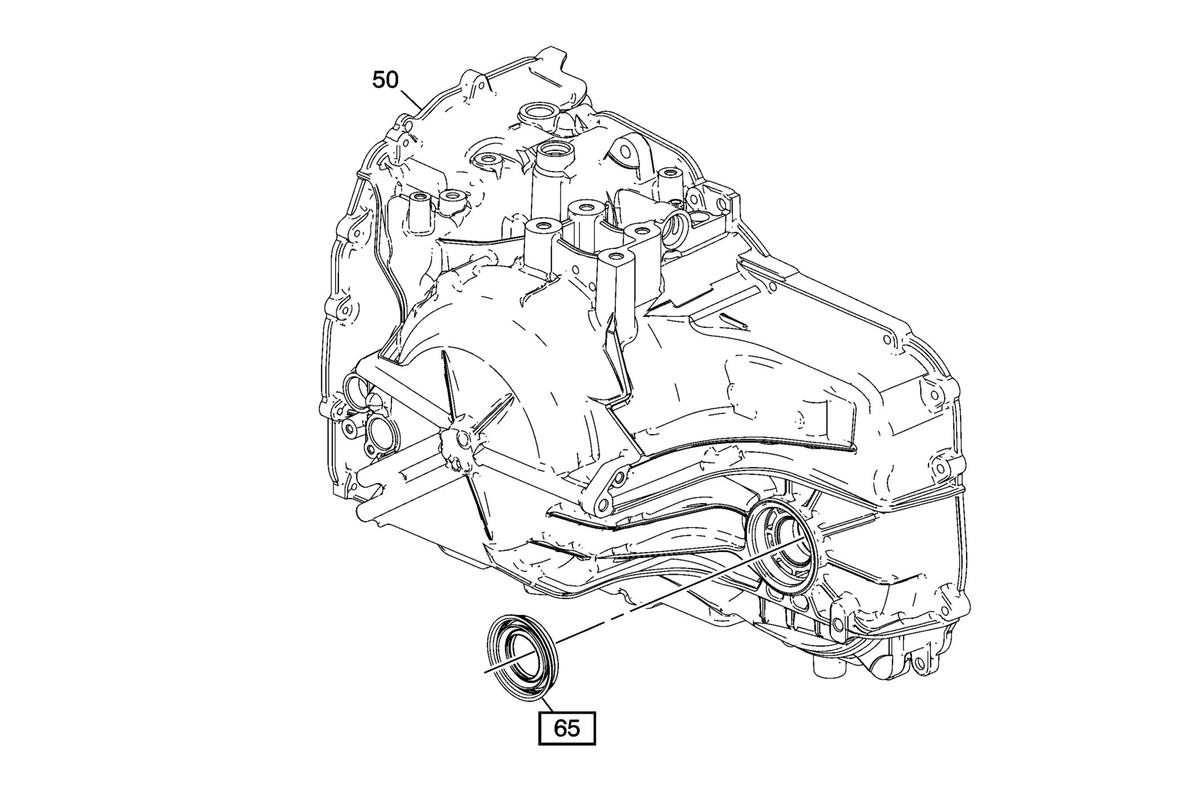

Fig 1: Front Wheel Seal Kit (Gen 1 And 2) 19258416

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

Front Wheel Seal Kit (Gen 1& 2)

Callout	Quantity	Component Name
65	1	Drive Shaft Oil Seal Assembly
