Control Valve Body Kit (Gen 1)
WARNING: This page is about a different variant/trim than selected.
NOTE:

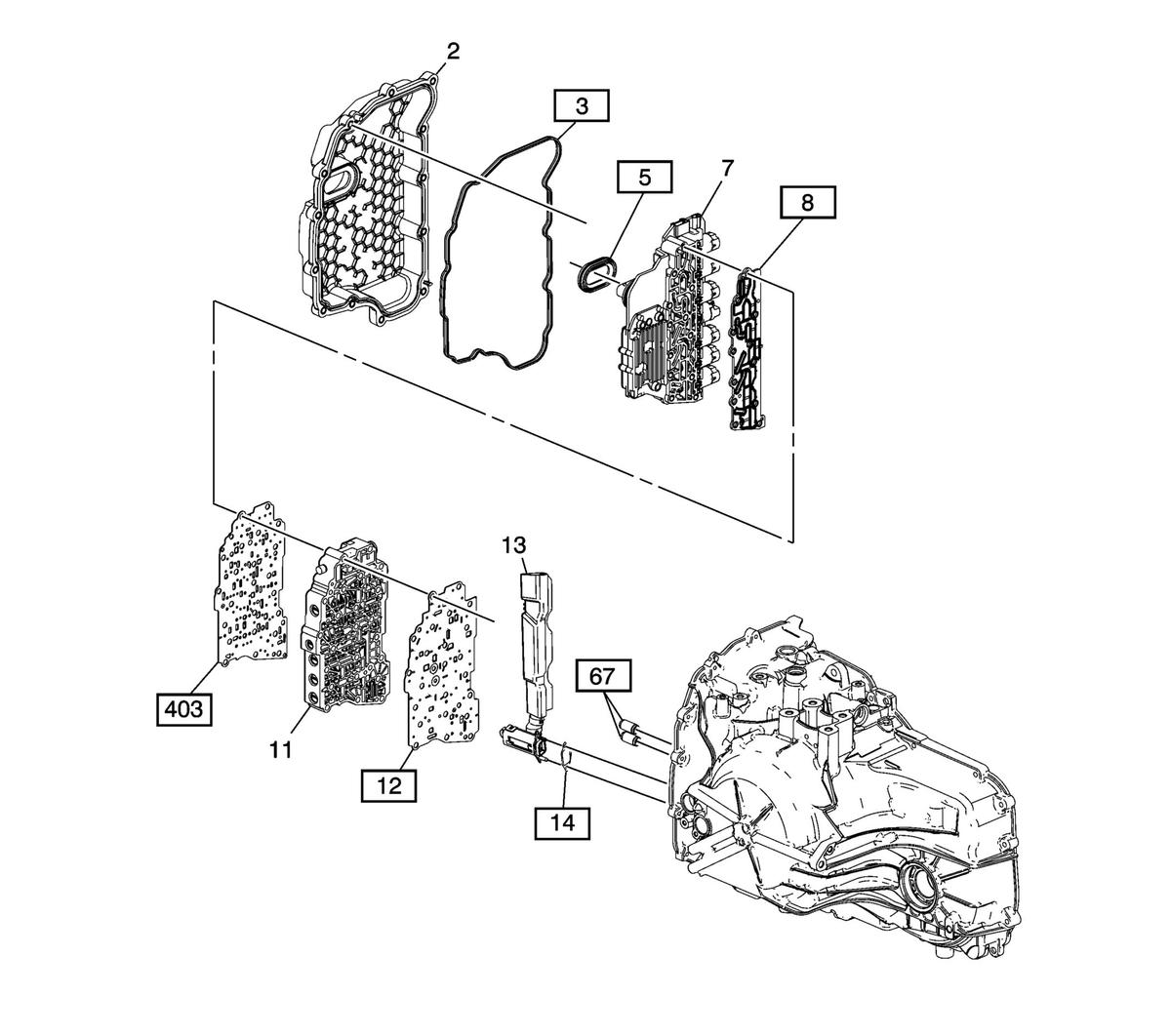

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Control Valve Body Kit (Gen 1)
| Callout | Quantity | Component Name |
|---|---|---|
| 3 | 1 | Control Valve Body Cover Gasket |
| 5 | 1 | Control Valve Body Cover Hole Seal |
| 8 | 1 | Control Valve Body Filter Plate Assembly |
| 12 | 1 | Control Valve Body Spacer Plate Assembly |
| 14 | 1 | A/Trans Fluid Level Control Valve Gasket |
| 67 | 2 | 1-2-3-4 and Low Reverse Clutch Fluid Passage Seal |
| 403 | 1 | Channel Plate to Valve Body Spacer Plate Assembly |
