Clutch Plate Package (Gen 1)
WARNING: This page is about a different variant/trim than selected.
NOTE:
Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

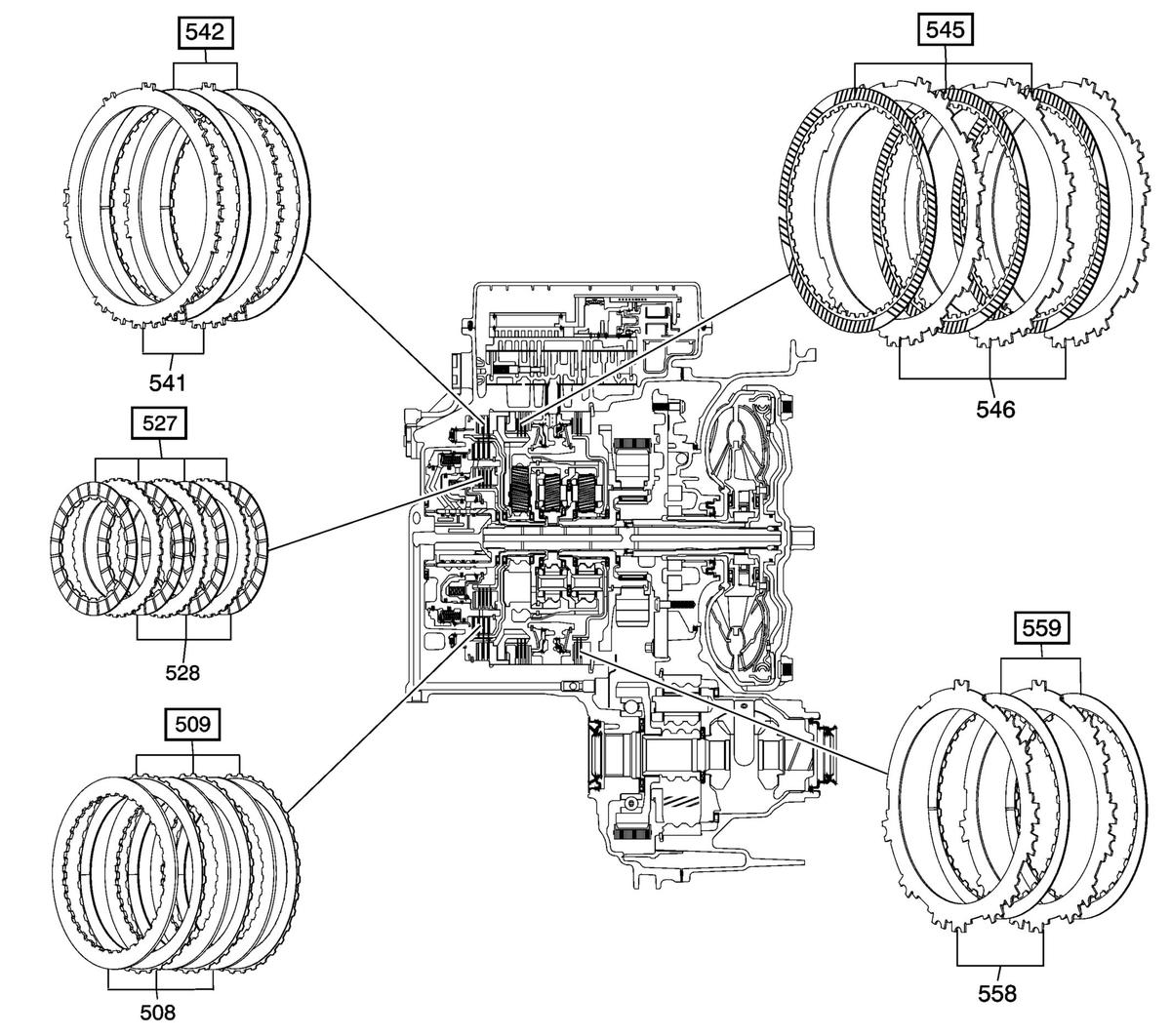

Clutch Plate Package (Gen 1)
| Callout | Quantity | Component Name |
|---|---|---|
| 509 | 3 | 3-5 Reverse Clutch (w/Friction Material) Plate Assembly |
| 527 | 4 | 4-5-6 Clutch (w/Friction Material) Plate Assembly |
| 542 | 2 | 2-6 Clutch (w/Friction Material) Plate Assembly |
| 545 | 3 | Low and Reverse Clutch (w/Friction Material) Plate Assembly |
| 559 | 2 | 1-2-3-4 Clutch (w/Friction Material) Plate Assembly |
