A/Trans Seal Kit (Gen 2) (2 of 2)
WARNING: This page is about a different variant/trim than selected.
NOTE:

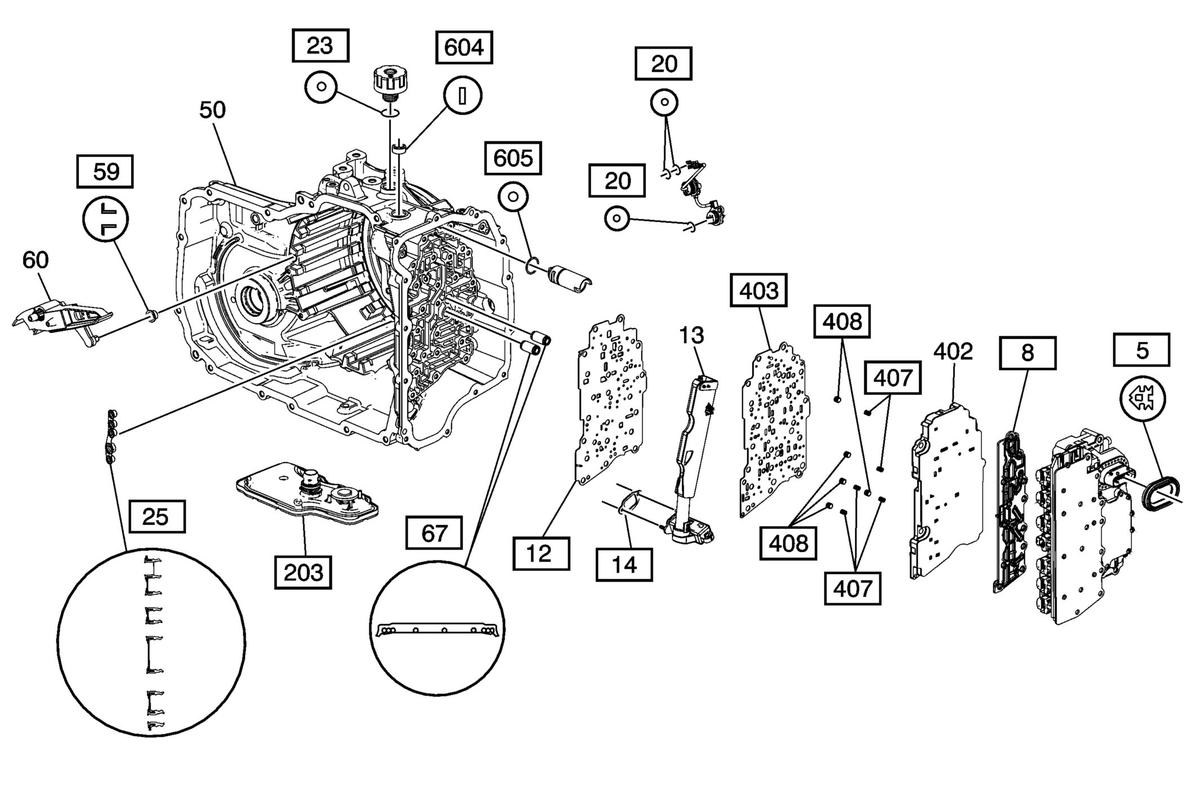

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
A/Trans Seal Kit (Gen 2) (2 of 2)
| Callout | Quantity | Component Name |
|---|---|---|
| 5 | 1 | Control Valve Body Cover Hole Seal |
| 8 | 1 | Control Valve Body Filter Plate Assembly |
| 12 | 1 | Control Valve Body Spacer Plate Assembly |
| 14 | 1 | A/Trans Fluid Level Control Valve Gasket |
| 20 | 3 | A/Trans Input Speed Sensor Assembly O-Ring Seal |
| 23 | 1 | Fill Cap Seal |
| 25 | 1 | A/Trans Fluid Pump Seal Assembly |
| 59 | 1 | Drive Link Lube Fluid Seal |
| 67 | 1 | 1-2-3-4 and Low Reverse Clutch Fluid Passage Seal |
| 203 | 1 | A/Trans Fluid Filter Assembly |
| 403 | 1 | Channel Plate to Valve Body Spacer Plate Assembly |
| 407 | 5 | Actuator Feed Accumulator Spring |
| 408 | 5 | Actuator Feed Accumulator Piston |
| 604 | 1 | Manual Shift Shaft Seal |
| 605 | 1 | Park Pawl Actuator Guide Seal |
