A/Trans Seal Kit (Gen 1& 2)

WARNING: This page is about a different variant/trim than selected.

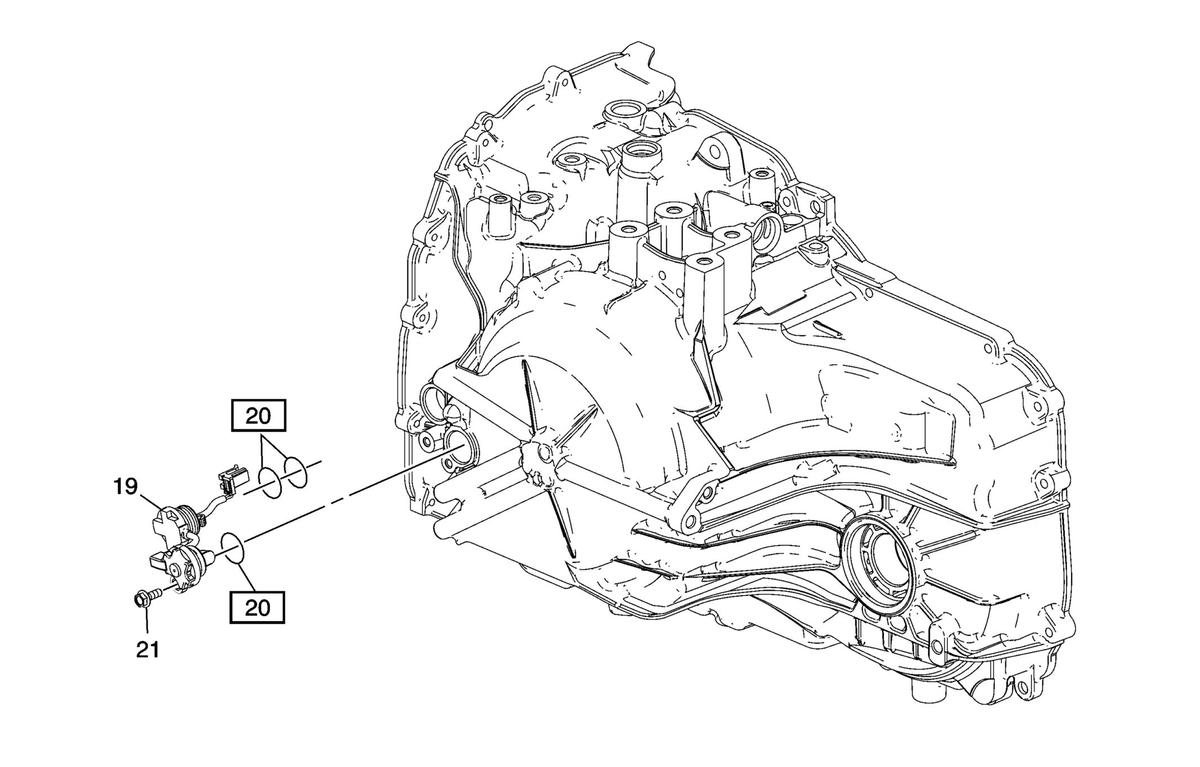

Fig 1: Automatic Trans Seal Kit (Gen 1 And 2) 24251028

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

A/Trans Seal Kit (Gen 1& 2)

Callout	Quantity	Component Name
20	3	A/Trans Input Speed Sensor Assembly O-Ring Seal
