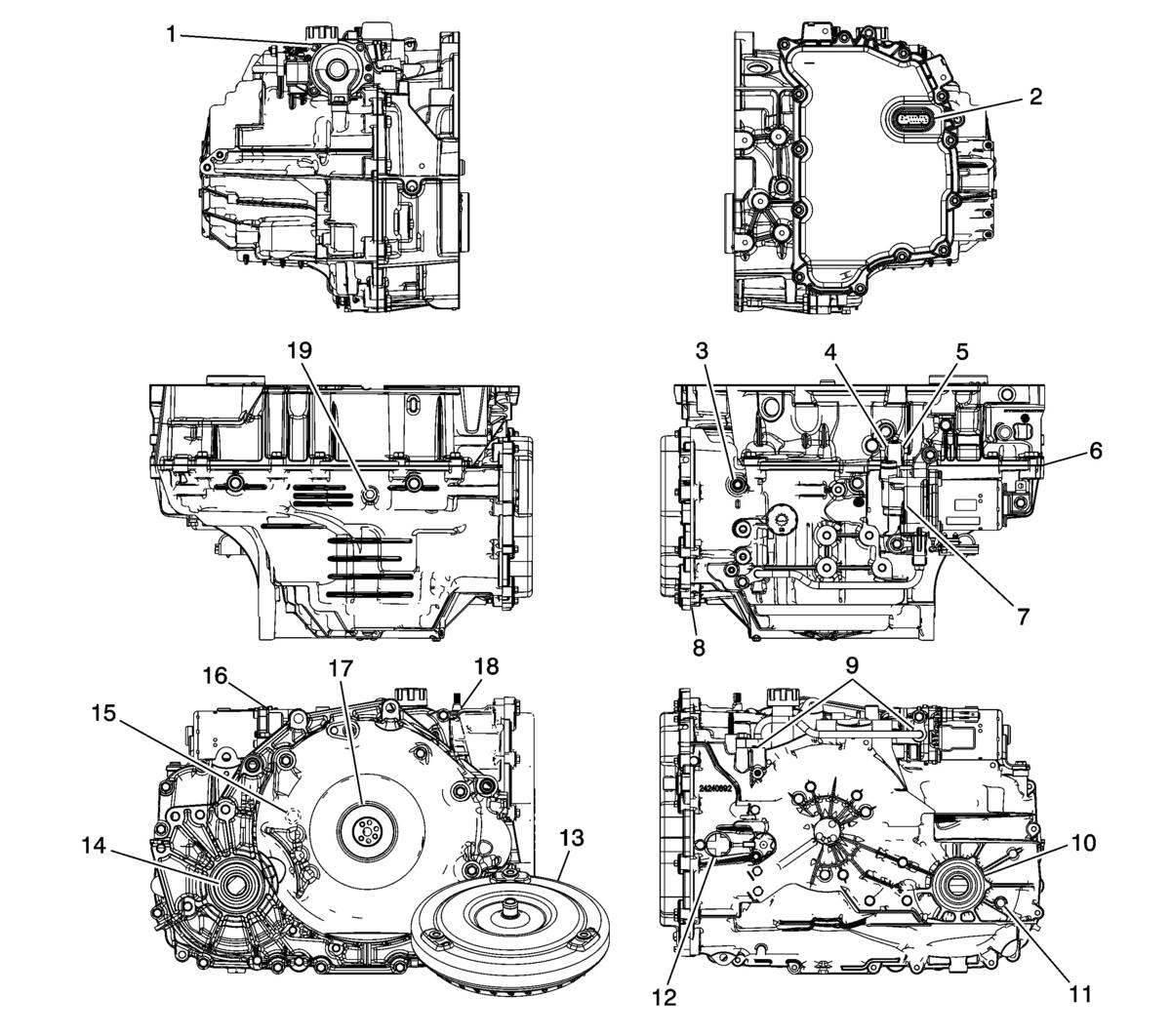

Leak Inspection Points Hybrid
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Fill Cap Seal |
| 2 | Control Valve Body Cover Hole Seal |
| 3 | Line Pressure Tap Plug |
| 4 | A/Trans Auxiliary Fluid Pump Gasket |
| 5 | A/Trans Auxiliary Fluid Pump Seal |
| 6 | Converter Housing to Case Joint |
| 7 | A/Trans Auxiliary Fluid Pump Cover Seal |
| 8 | Control Valve Body Cover Gasket |
| 9 | A/Trans Auxiliary Fluid Pump Outlet Pipe Seal Assembly |
| 10 | Drive Shaft Oil Seal Assembly |
| 11 | Oil Level Plug |
| 12 | A/Trans Input Speed Sensor Assembly O-Ring Seal |
| 13 | Torque Converter Assembly |
| 14 | Front Wheel Drive Shaft Oil Seal Assembly |
| 15 | A/Trans Auxiliary Fluid Inlet Pump Seal |
| 16 | A/Trans Auxiliary Fluid Pump Motor Cover Seal O-Ring |
| 17 | Torque Converter Fluid Seal Assembly |
| 18 | Manual Shift Shaft Seal |
| 19 | Drain Plug |
