Brake Apply, Internal Mode and Manual Shift Switch (except CZ2)

WARNING: This page is about a different variant/trim than selected.

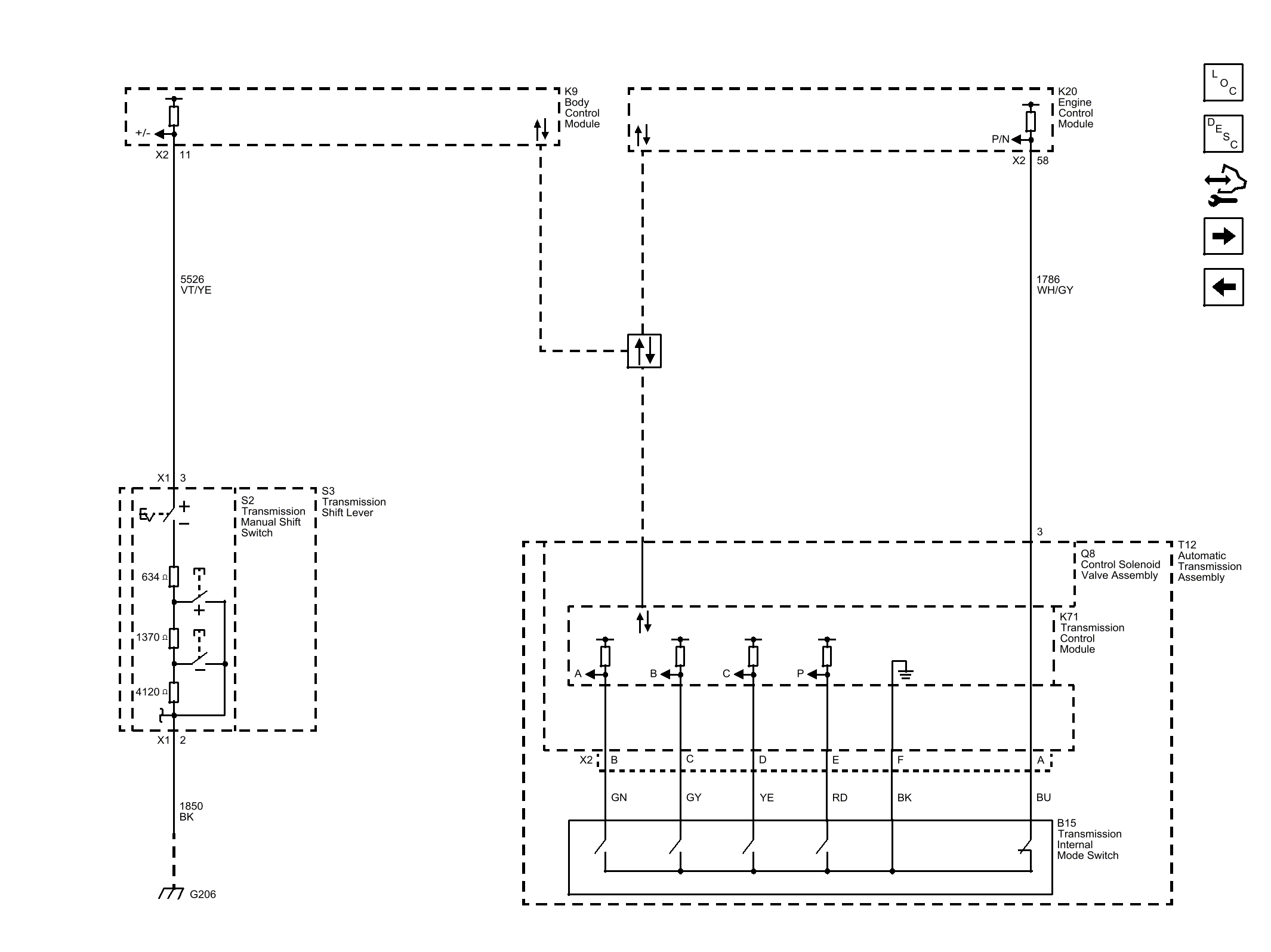

Fig 1: Brake Apply, Internal Mode and Manual Shift Switch (except CZ2)
GM3770315Courtesy of GENERAL MOTORS COMPANY
