Lower Crankcase Right View
WARNING: This page is about a different variant/trim than selected.

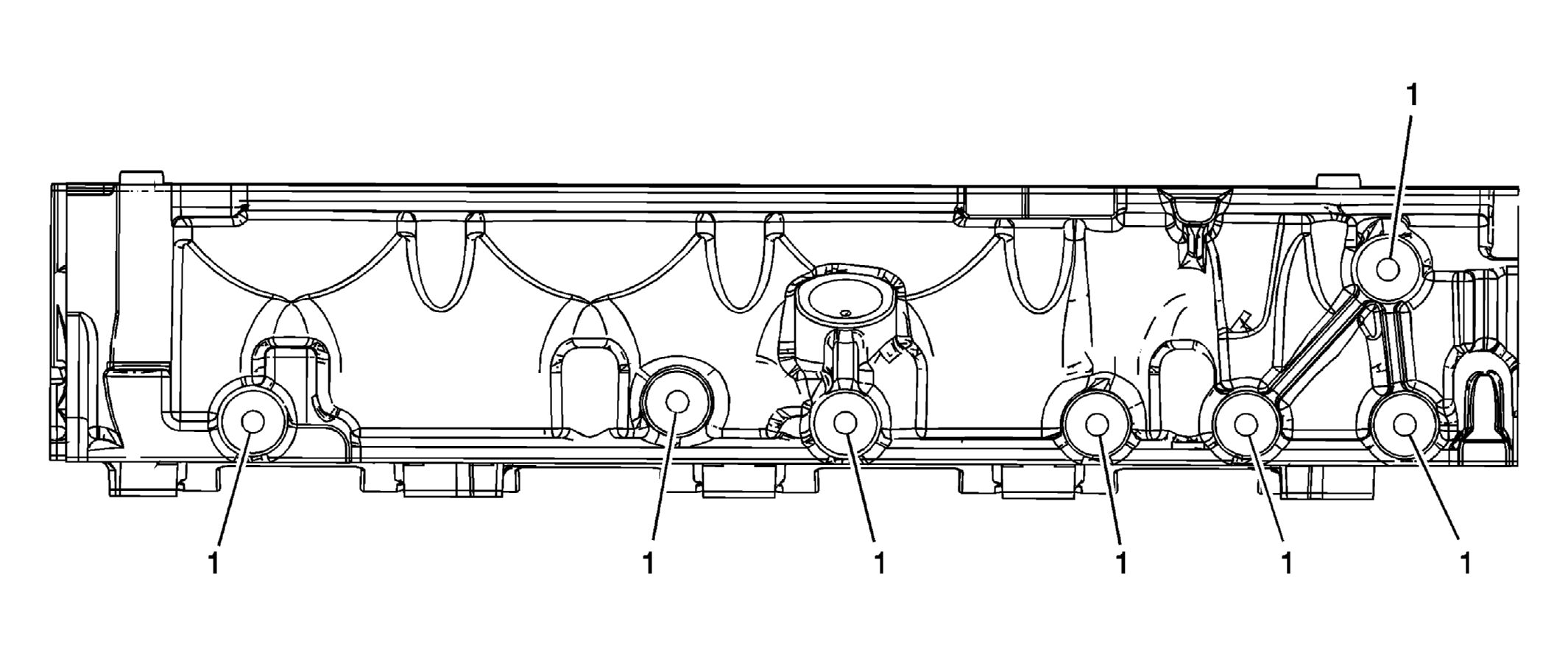

Courtesy of GENERAL MOTORS COMPANY Lower Crankcase Right View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN42385850 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M10 x 1.5 |
215 |
211 |
212 |
213 |
214 |
34 |
1.339 |
27 |
1.063 |
