Lower Crankcase Bottom View
WARNING: This page is about a different variant/trim than selected.

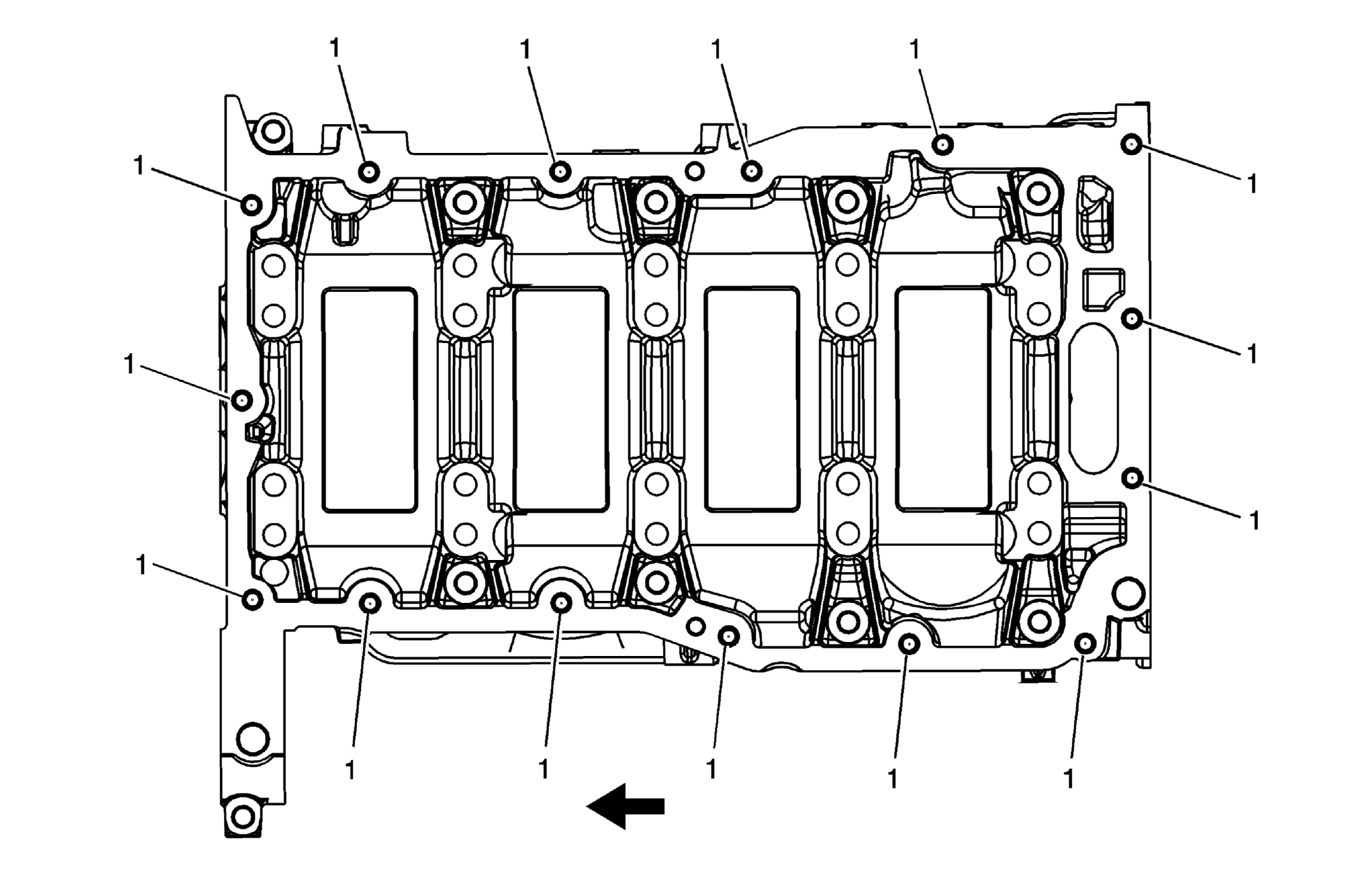

Courtesy of GENERAL MOTORS COMPANY Lower Crankcase Bottom View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN42385850 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M8 x 1.25 |
210 |
206 |
207 |
208 |
209 |
23.5 |
0.925 |
18.5 |
0.73 |
