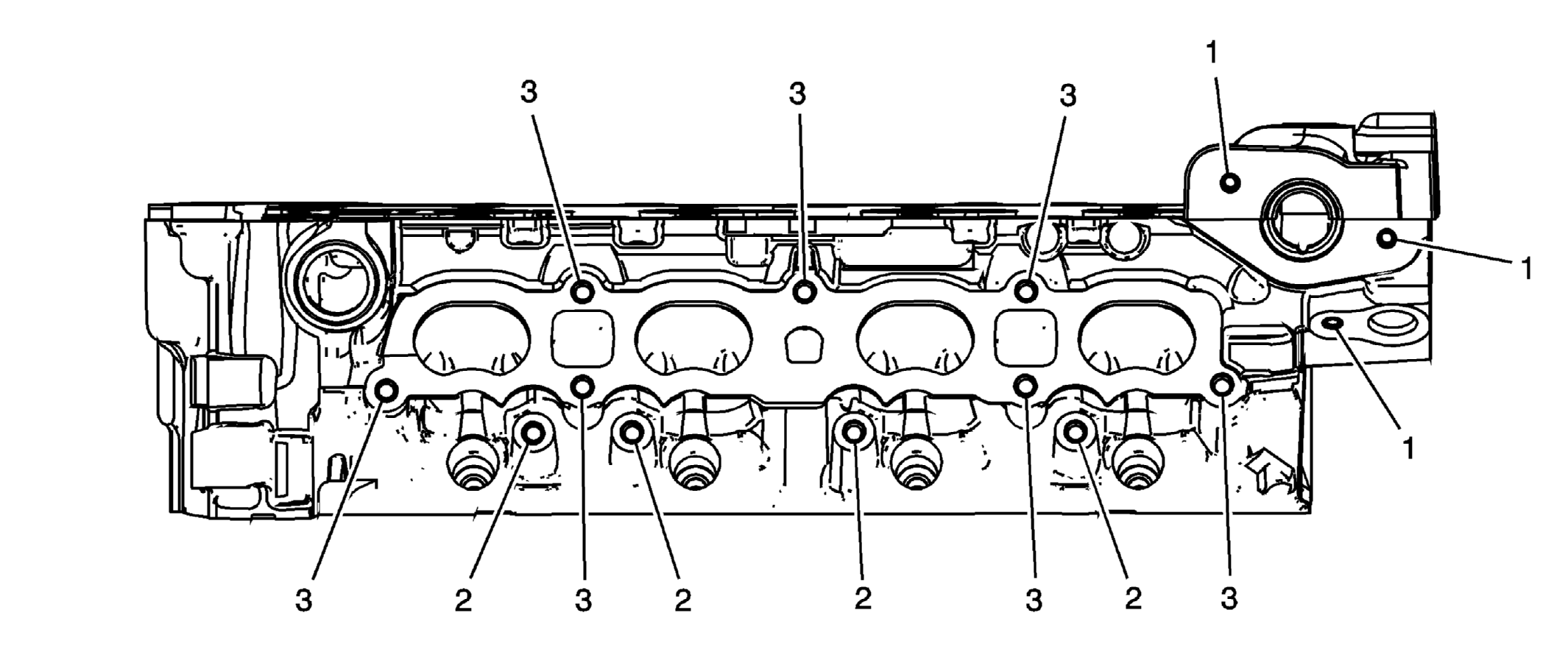

Cylinder Head Intake Manifold Deck View
WARNING: This page is about a different variant/trim than selected.
Cylinder Head Intake Manifold Deck View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth Maximum |
Tap Depth Maximum |
||
|---|---|---|---|---|---|---|---|---|---|---|
| EN42385850 | MM | in | MM | in | ||||||
| 1 | M6 x 1 | 205 | 201 | 202 | 203 | 204 | 20 | 0.787 | 16 | 0.63 |
| 2 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 20 | 0.787 | 16 | 0.63 |
| 3 | M8 x 1.25 | 205 | 201 | 202 | 203 | 204 | 16 | 0.630 | 12 | 0.473 |
