Cylinder Head Front View
WARNING: This page is about a different variant/trim than selected.

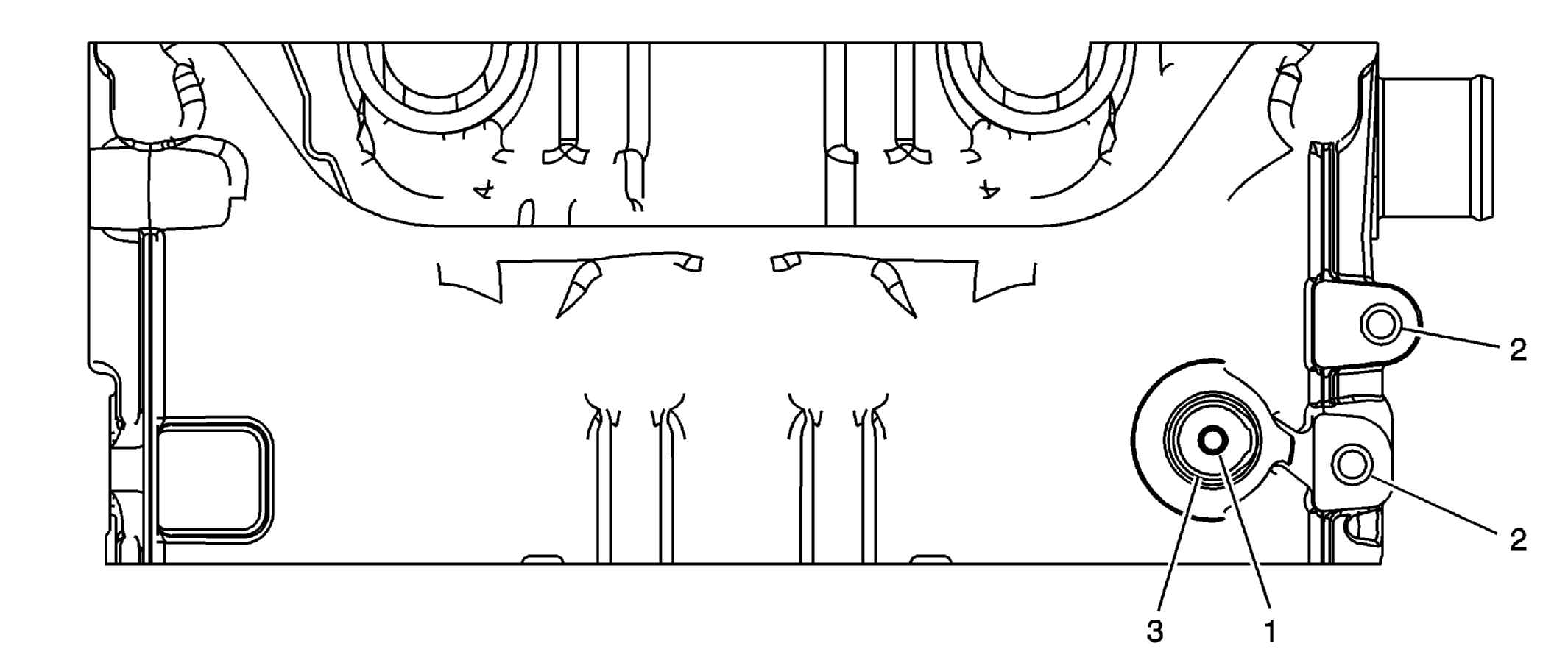

Cylinder Head Front View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| EN42385850 | MM | (IN) | MM | (IN) | ||||||
| 1 | M6 x 1 | 205 | 201 | 202 | 203 | 204 | 20 | 0.787 | 16 | 0.63 |
| 2 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 25 | 0.984 | 20 | 0.787 |
| 3 | M22 x 1.5 | No Service Tools Available | THRU | THRU | ||||||
