Installation Procedure

WARNING: This page is about a different variant/trim than selected.

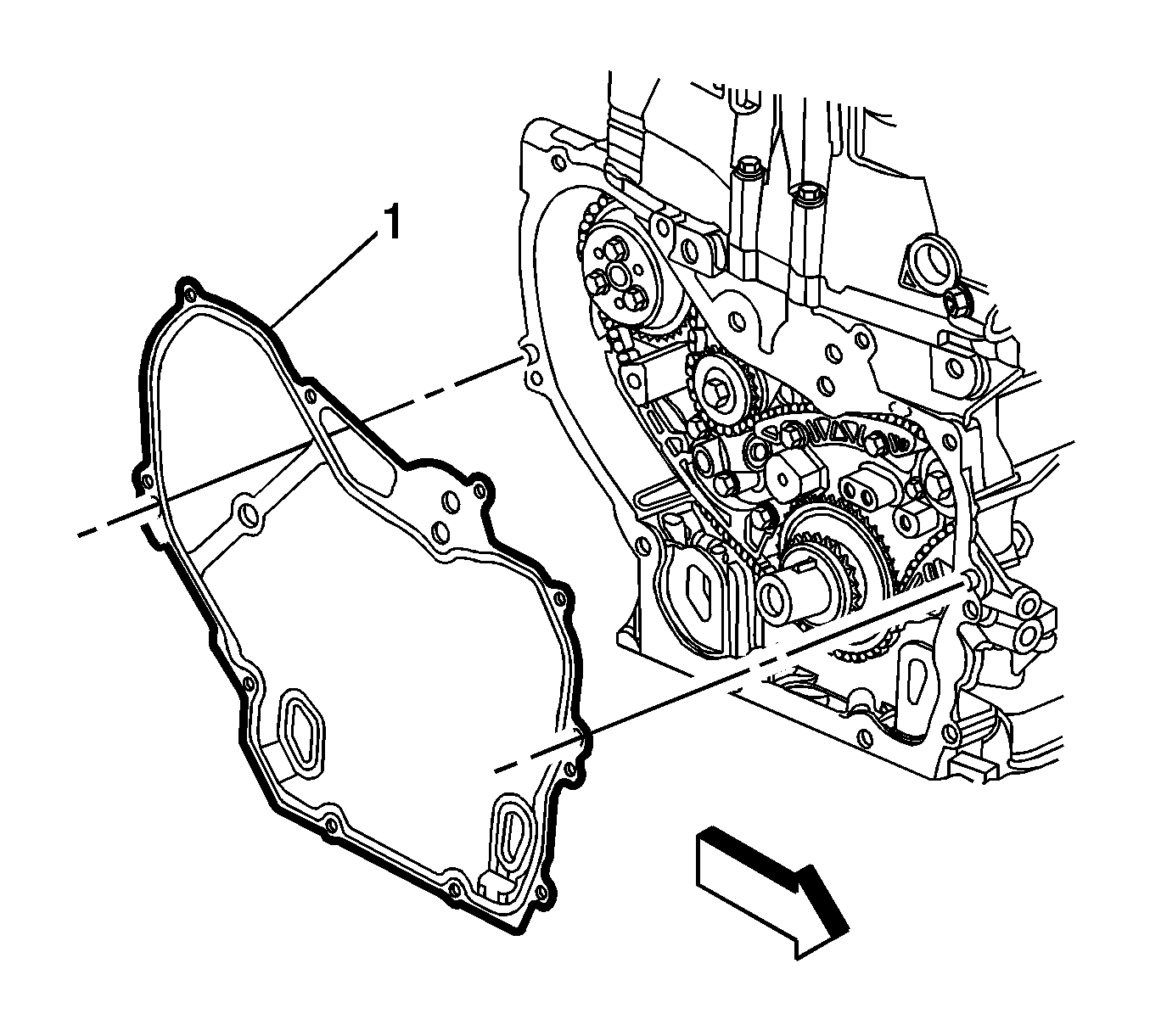

    Fig 1: Engine Front Cover Gasket
    GM2624623Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW engine front cover gasket (1) to the dowel pins.
  2. Install the engine front cover.

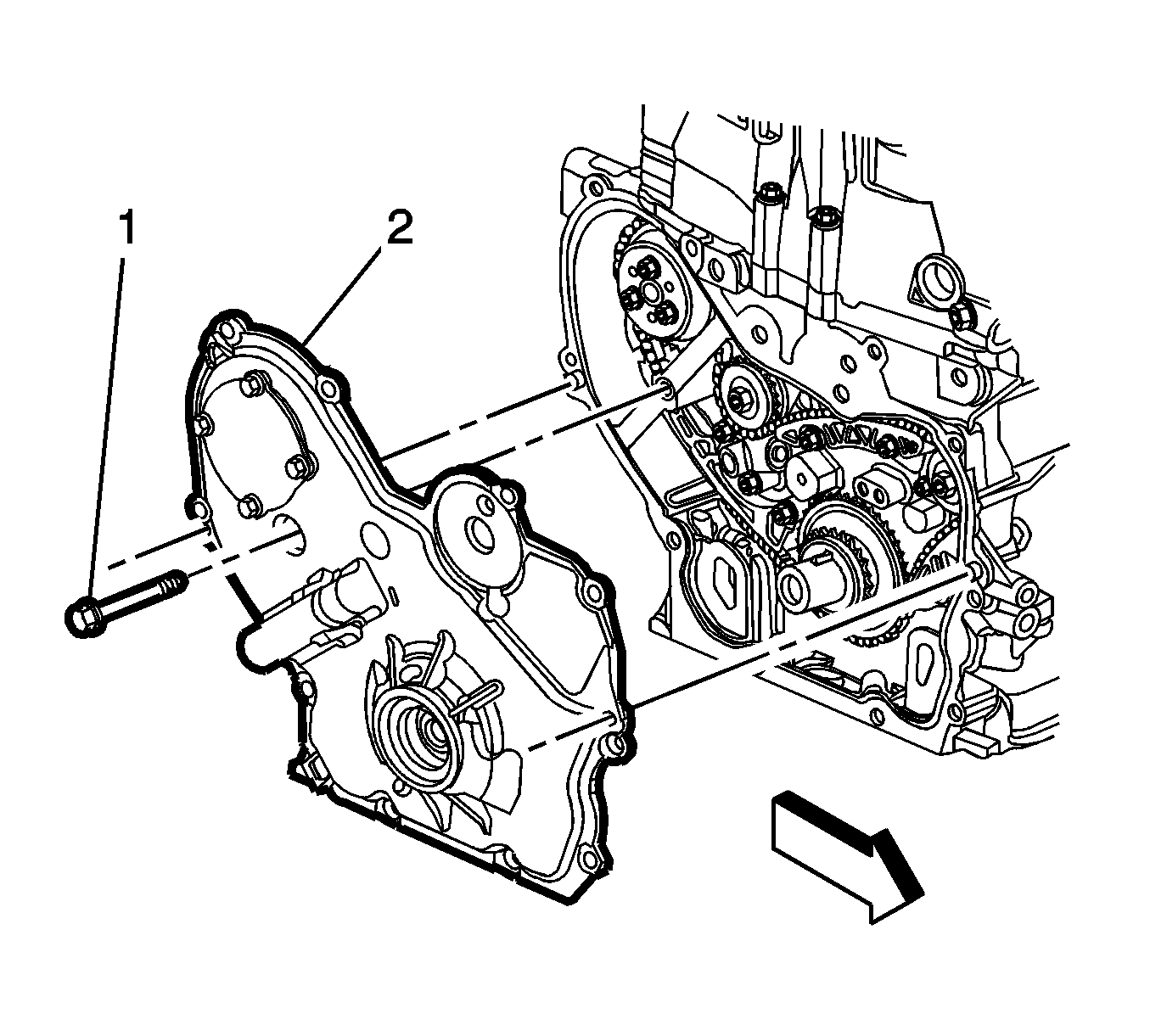

    3. Fig 2: Engine Front Cover Bolts
    GM2624620Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the engine front cover bolts (1) and tighten to 25 N.m (18 lb ft).
  4. Lower the vehicle.

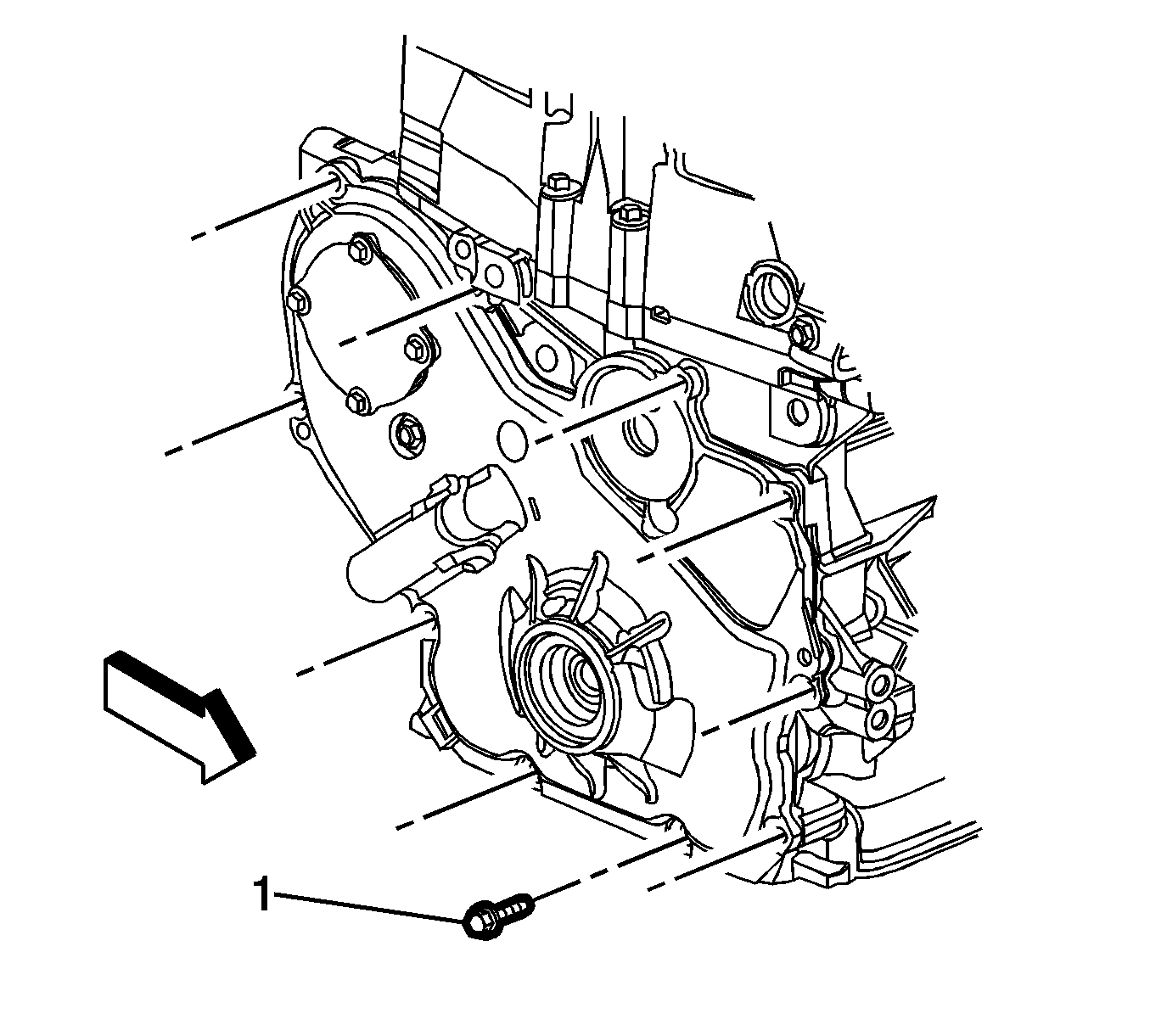

    5. Fig 3: Water Pump Bolt
    GM2624609Courtesy of GENERAL MOTORS COMPANY
  5. Install the engine front cover to water pump bolt (1) and tighten to 25 N.m (18 lb ft).
  6. Reposition the oxygen sensor harness to the front cover.
  7. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  8. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
  9. Install the engine mount bracket. Refer to Engine Mount Bracket Replacement (LUK) .
