Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. With the EN-48932  compressor still compressing the tensioner spring Install and position the drive belt around all of the pulleys except for the middle idler pulley.
    2. Fig 1: Drive Belt Routing
    GM1809412Courtesy of GENERAL MOTORS COMPANY
  2. Rotate pulley (2) clockwise and install the drive belt under the middle idler pulley.
  3. Ensure the drive belt tensioner idler pulley is fully seated against the drive belt (3).
  4. Loosen the forcing bolt on the EN-48932  compressor (1) and remove from the drive belt tensioner spring.
    5. NOTE:

    If tensioner assembly is new, use a 6 point socket on the drive belt tensioner hex boss (1) and rotate hex boss clockwise to release the tension and remove the shipping retainer by hand. Discard the shipping retainer.

  5. Ensure that the drive belt tensioner idler is fully seated against the drive belt.

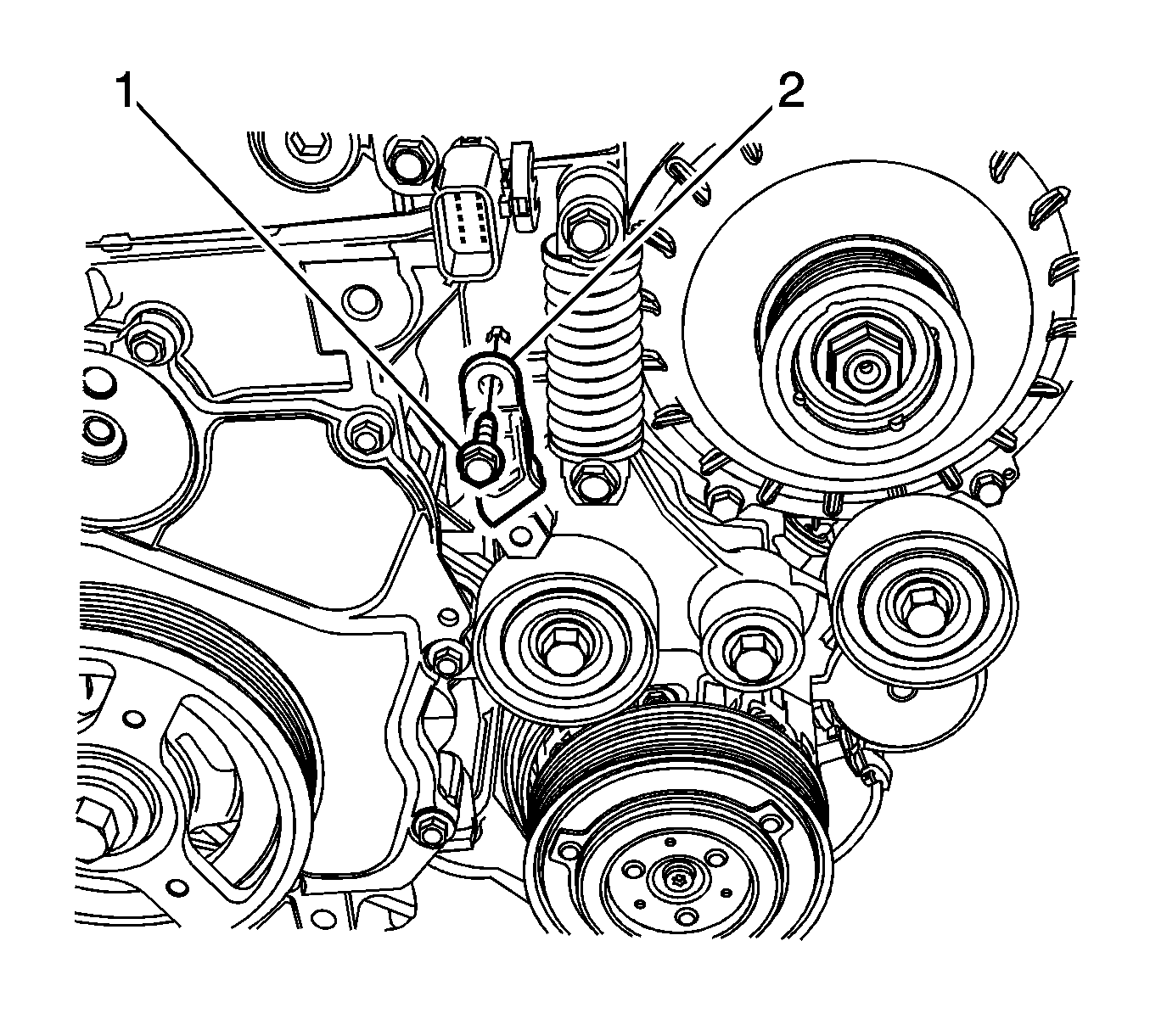

    6. Fig 2: View Of Tensioner Stop Fastener And Stop
    GM2284553Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Make sure the Tensioner Stop locator pin is in the guide hole of the bracket.

  6. Install the tension stop (2) and fastener (1), then tighten to 10 N.m (89 lb in).
  7. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
