Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the flywheel. Refer to Engine Flywheel Replacement

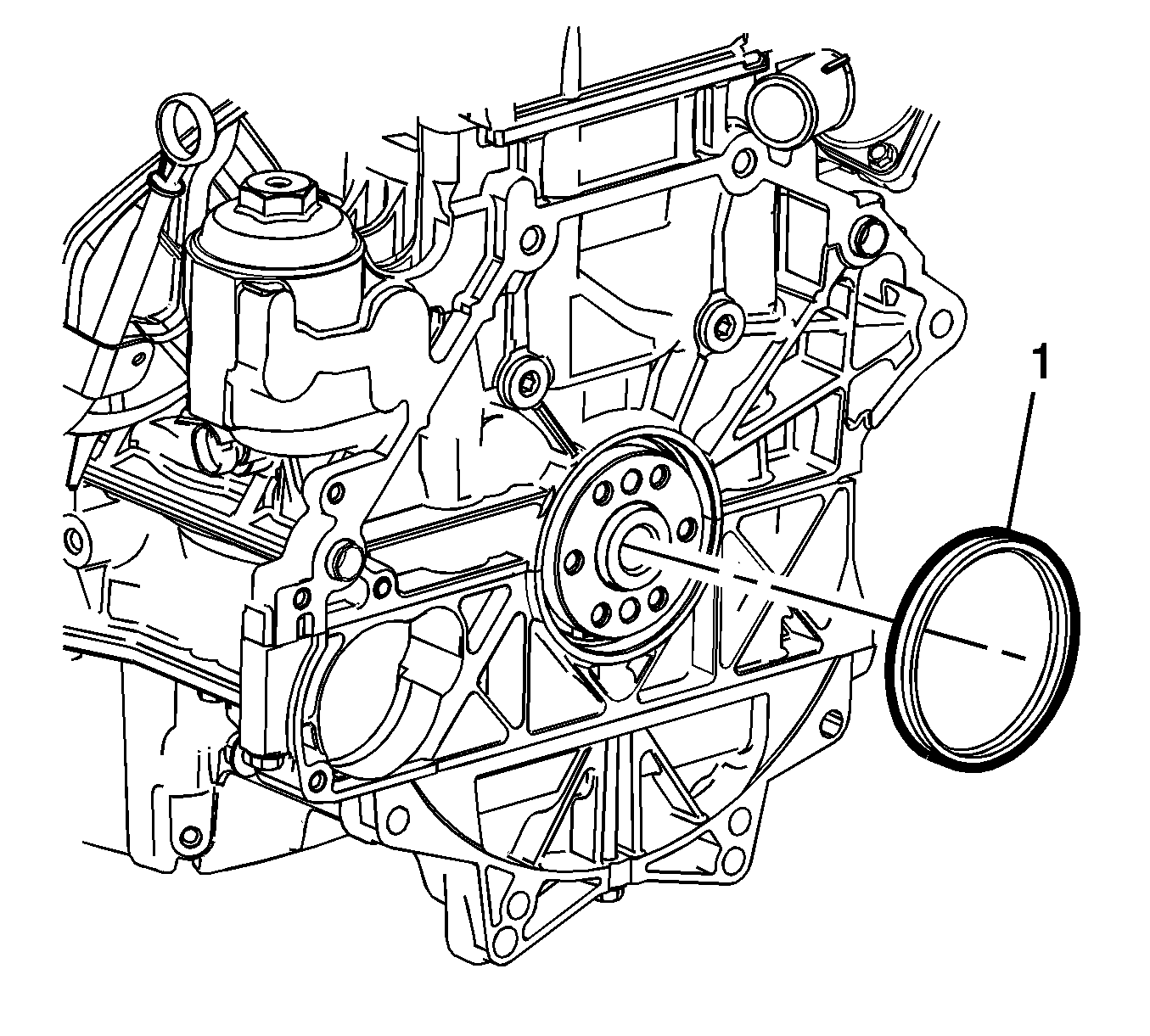

    2. Fig 1: Crankshaft Rear Oil Seal
    GM2568074Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not damage the outside diameter of the crankshaft or chamber with any tool.

  2. Use a suitable tool to remove the crankshaft rear oil seal (1).
