Installation Procedure

WARNING: This page is about a different variant/trim than selected.

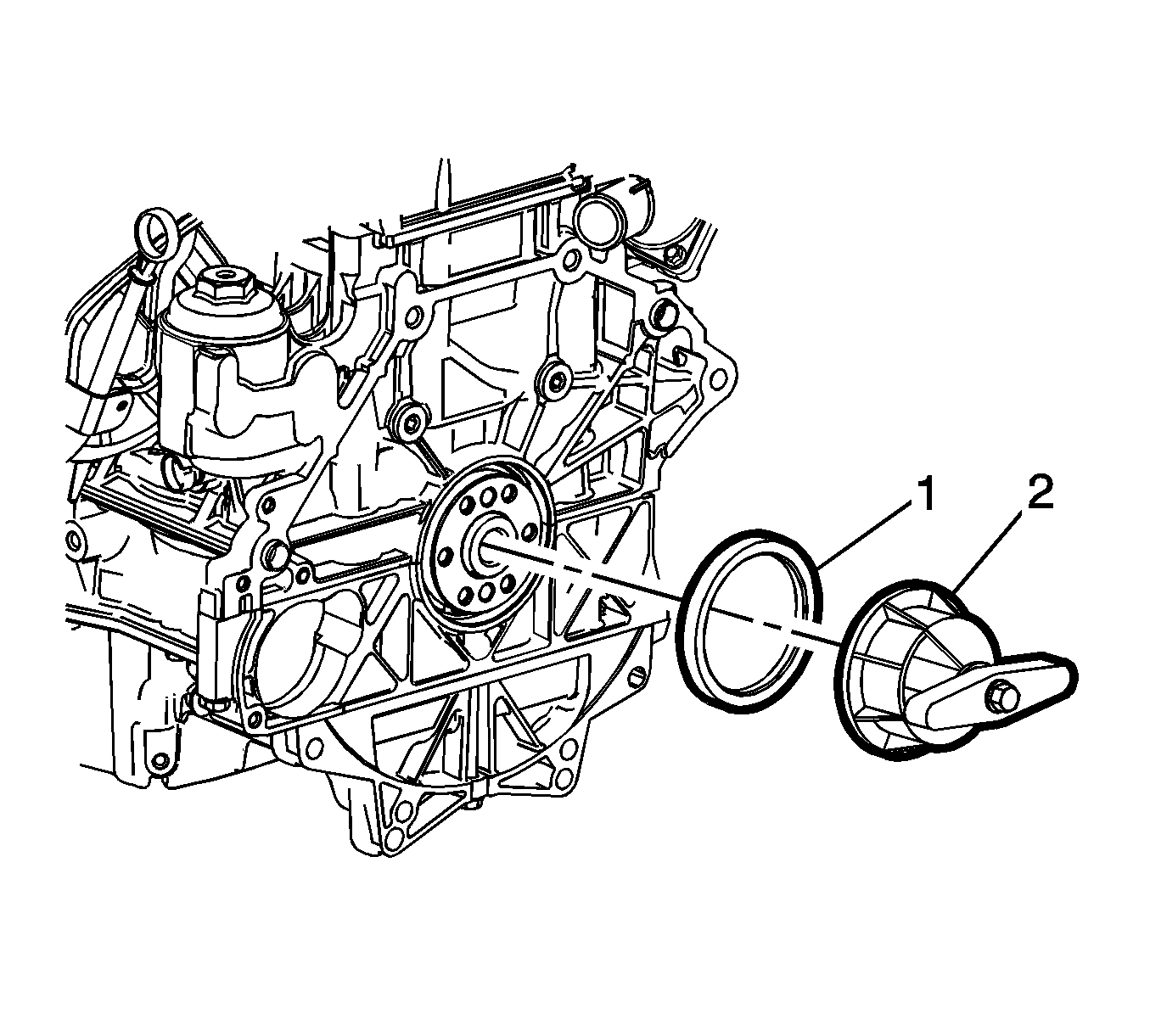

Fig 1: Crankshaft Real Oil Seal
GM2568075Courtesy of GENERAL MOTORS COMPANY
  1. Using the (2) EN-42067  installer , install a NEW crankshaft real oil seal (1).
  2. Install the flywheel. Refer to Engine Flywheel Replacement .
