Crankshaft Front Oil Seal Replacement
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement . |
|

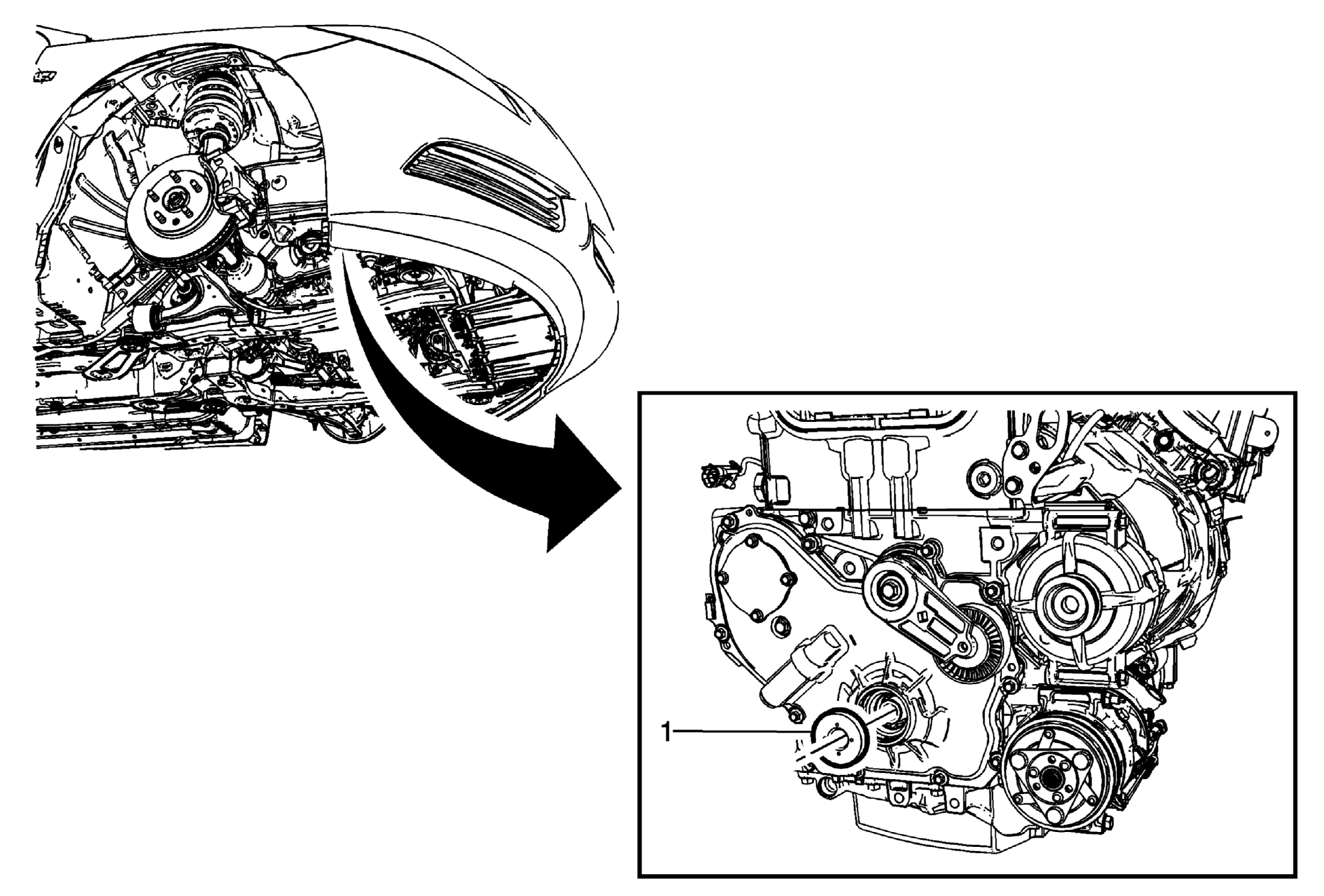

| 1 | Crankshaft Front Oil Seal
NOTE:
Use a flat-bladed tool to remove the seal from the front cover. Special Tools Use EN-35268-A Camshaft/Front Main Seal Installer to install the front crankshaft front oil seal. |
