Oil Pump Disassemble

WARNING: This page is about a different variant/trim than selected.

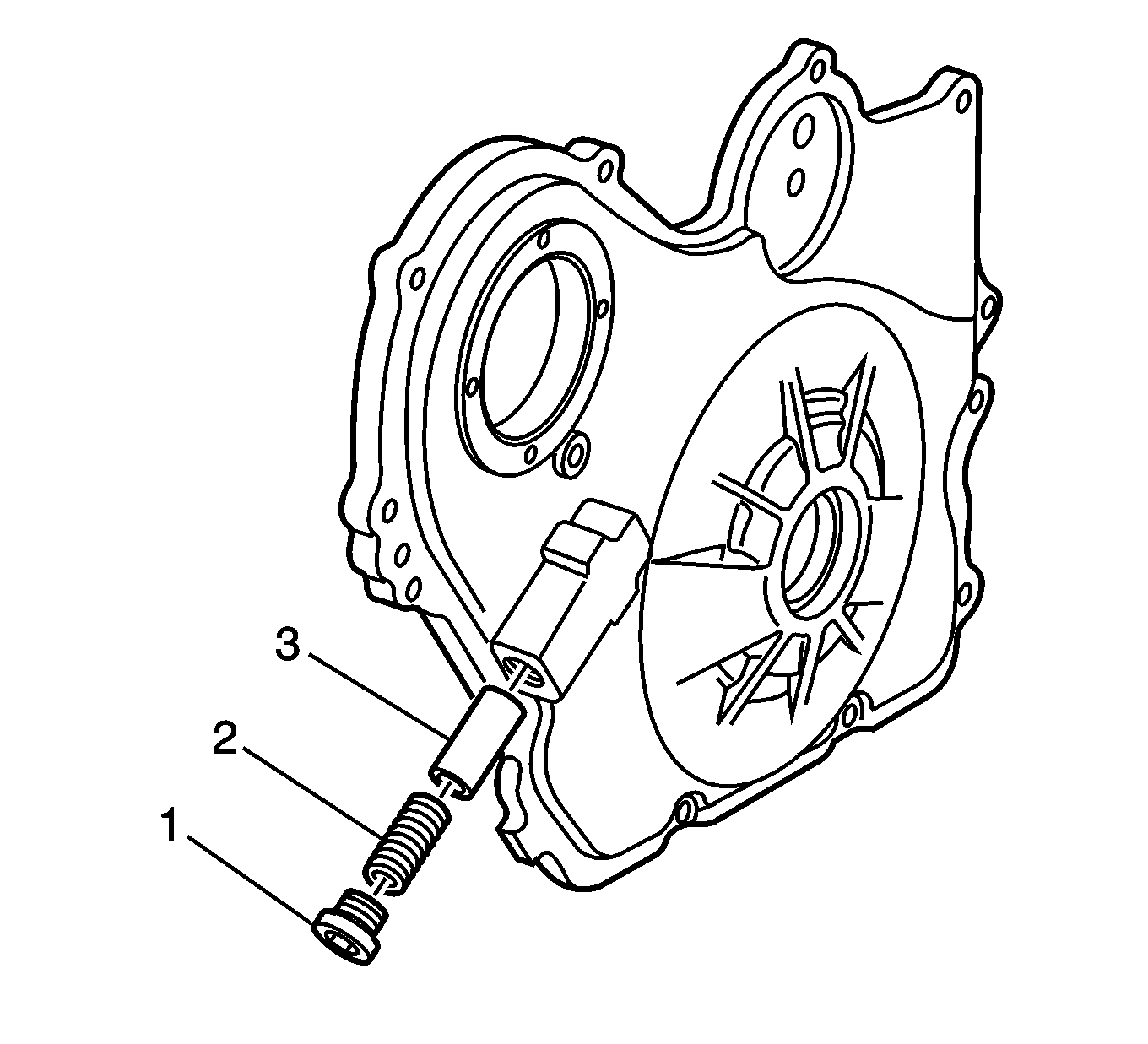

    Fig 1: Pressure Relief Valve
    GM2146354Courtesy of GENERAL MOTORS COMPANY
  1. Remove the pressure relief plug (1), spring (2), and plunger (3).

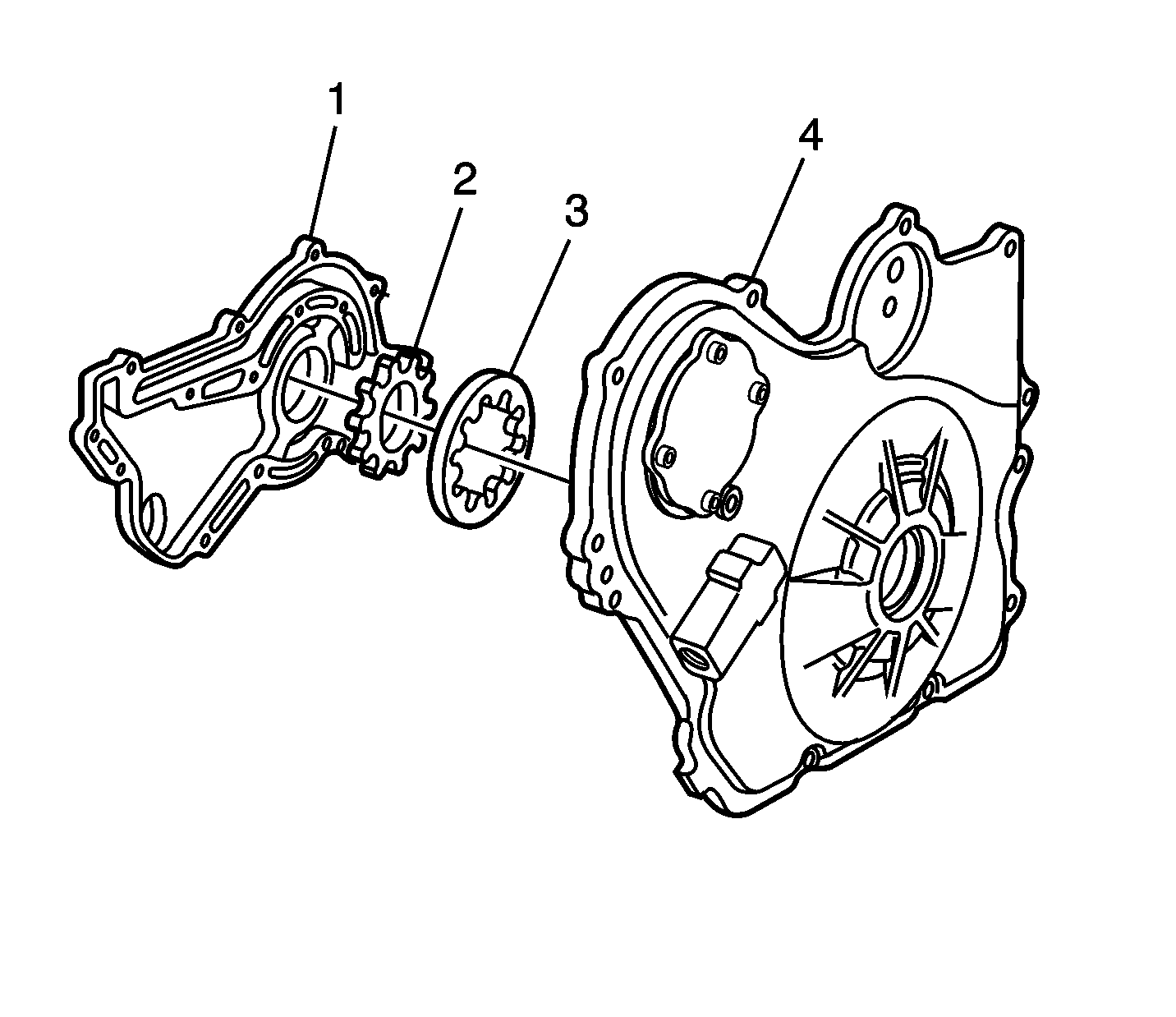

    2. Fig 2: Oil Pump Assembly
    GM2146355Courtesy of GENERAL MOTORS COMPANY
  2. Remove the oil pump gerotor cover (1) and bolts.
  3. Clean all of the parts in cleaning solvent. Remove varnish, sludge and dirt.
  4. Inspect the oil pump (2, 3) for wear and scoring. Ensure that all components are within specifications. Refer to Engine Mechanical Specifications (LEA, or LUK) .

    Replace the front cover (4) and oil pump assembly if it is out of specification or damaged.
