Oil Pan Installation

WARNING: This page is about a different variant/trim than selected.

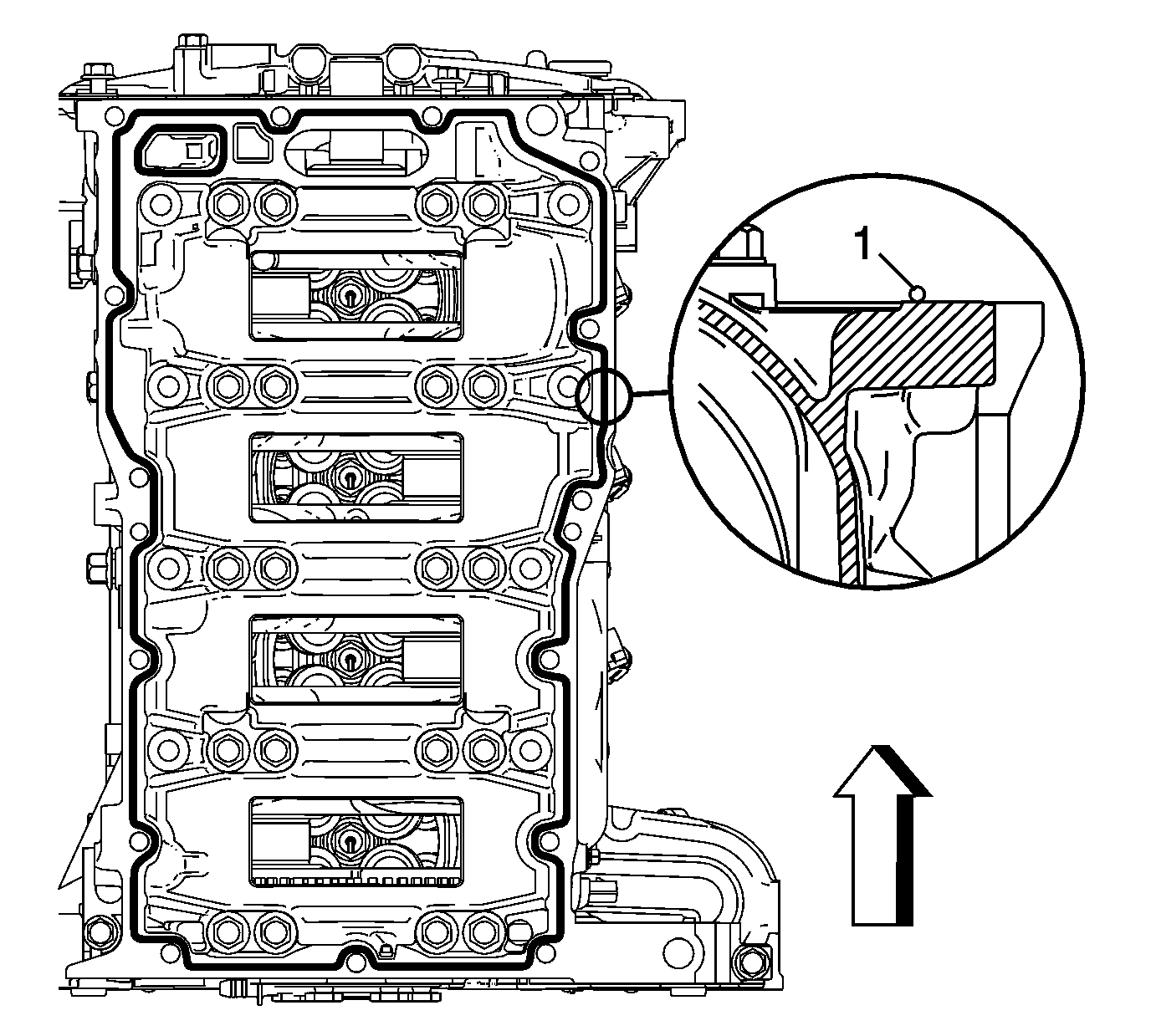

    Fig 1: Identifying Bead of Sealer on Oil Pan
    GM2128107Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • The lower crankcase surface must be free of contamination prior to applying the sealer.
    • Install and align the oil pan to block within 20 minutes of applying the sealer.
    • The oil pan must be fastened to final torque specification within 60 minutes of applying the sealer.
  1. Apply a 2.25 mm bead of sealer (1) on the level part of the flange next to the chamfer around the perimeter of the oil pan and the oil suction port opening. Refer to Adhesives, Fluids, Lubricants, and Sealers .

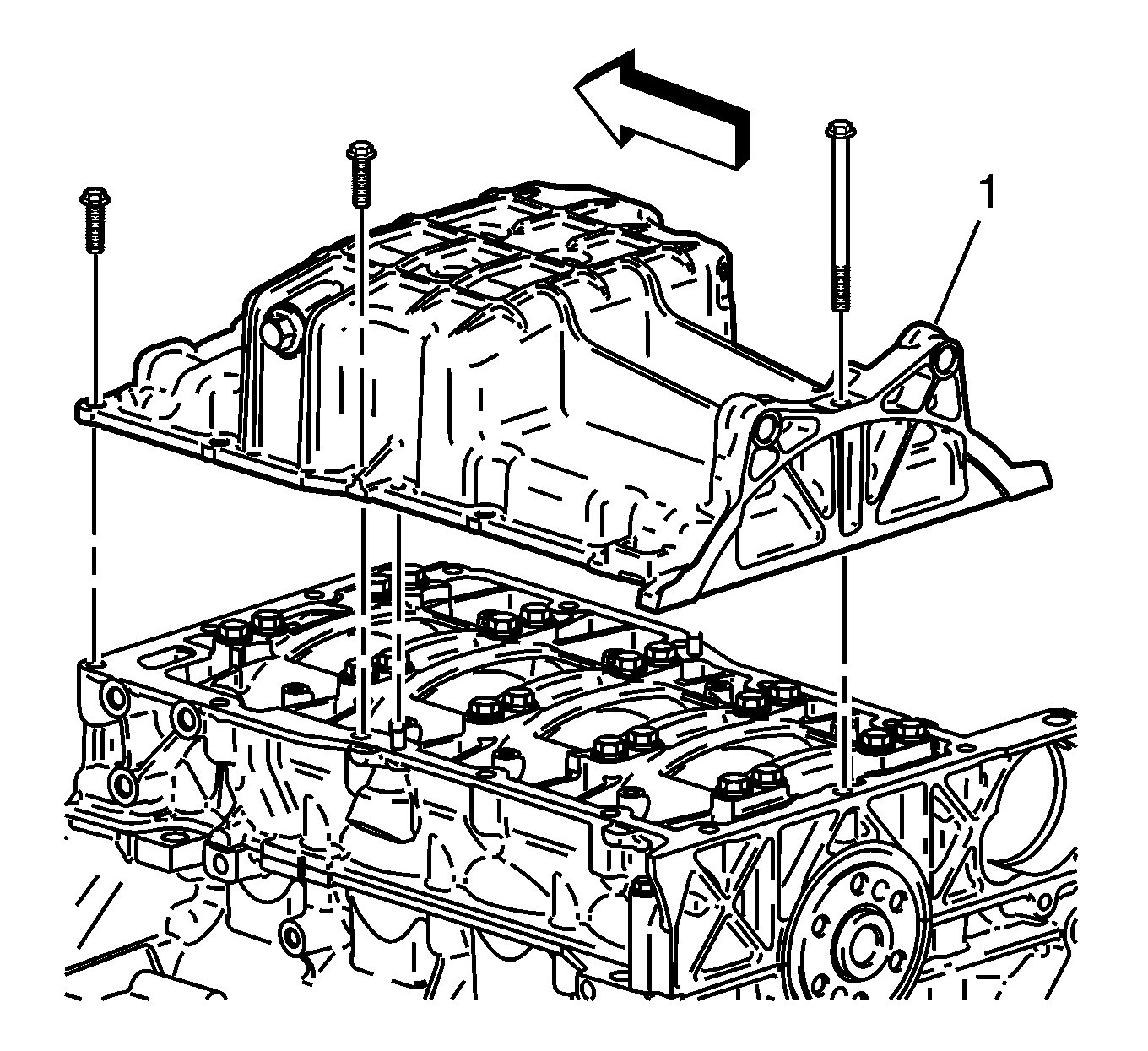

    2. Fig 2: Engine Oil Pan
    GM2146389Courtesy of GENERAL MOTORS COMPANY
  2. Install the oil pan (1).
    3. Fig 3: Identifying Oil Pan Bolts Removal & Tightening Sequence
    GM466580Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the oil pan bolts and tighten to 25 N.m (18 lb ft) in sequence.
