Oil Level Indicator and Tube Installation (LEA, or LUK)
WARNING: This page is about a different variant/trim than selected.
- Lubricate the oil level indicator tube O-ring. Refer to Adhesives, Fluids, Lubricants, and Sealers .

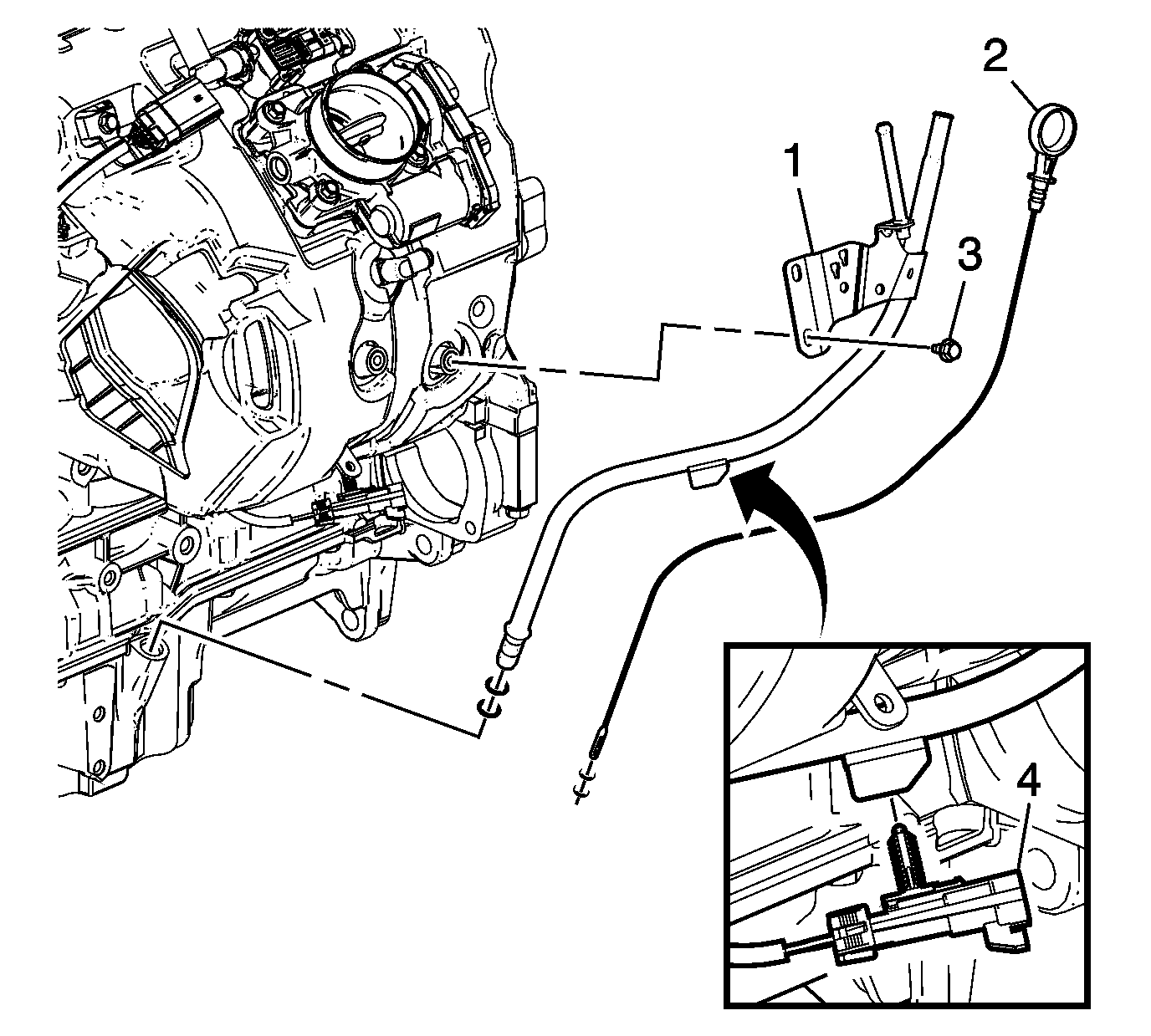

- Install the oil level indicator (2) and the oil level indicator tube (1) into the oil pan.
- Install the oil level indicator tube bracket bolt (3) to the intake manifold and tighten to 10 N.m (89 lb in).
- Install the electrical wiring harness to the oil level indicator tube.
- Install the knock sensor wiring clip (4) into the oil level indicator tube.
CAUTION:
Refer to Fastener Caution .
