Lower Crankcase Removal

WARNING: This page is about a different variant/trim than selected.

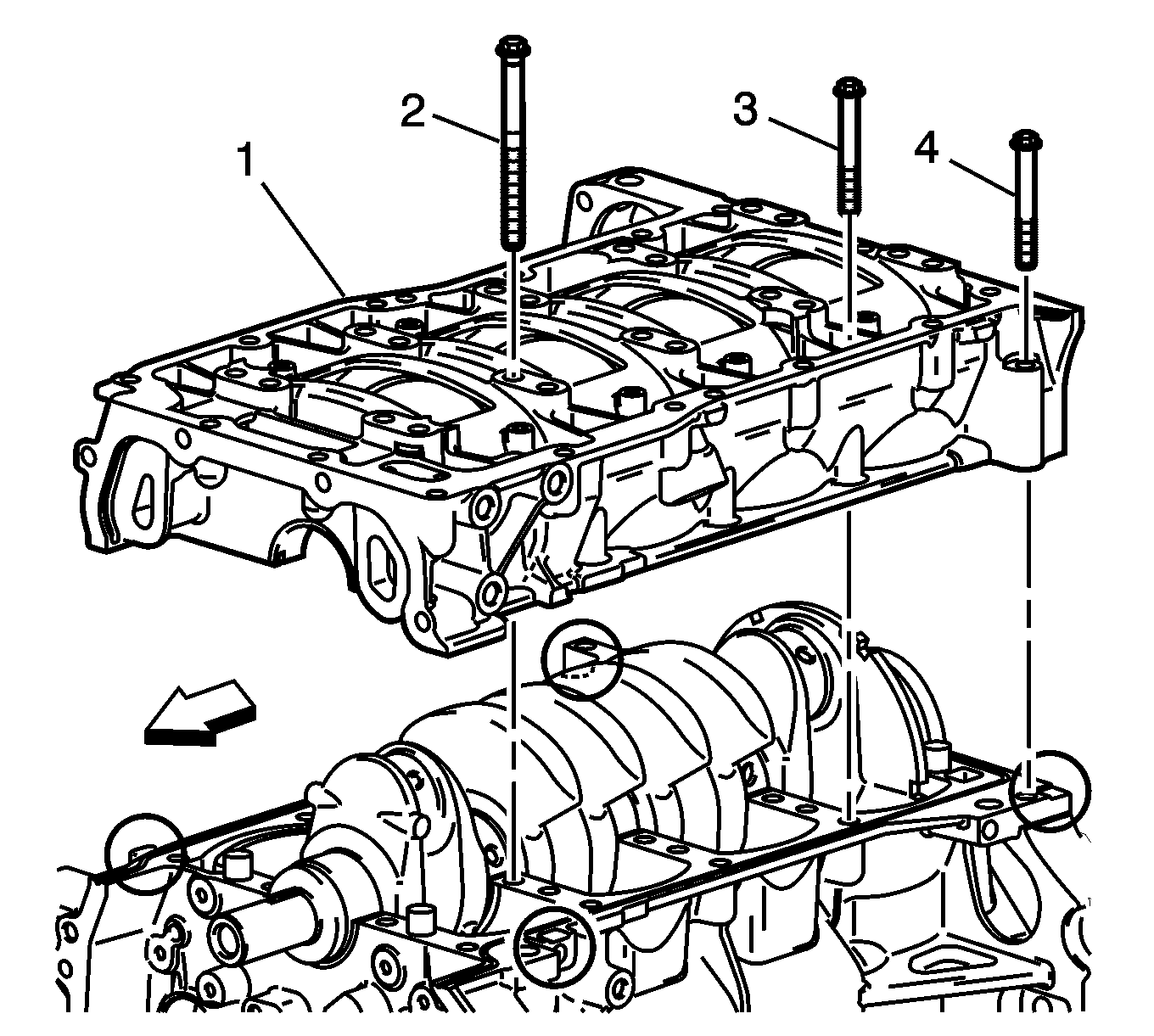

    Fig 1: Upper And Lower Crankcase With Bolts
    GM2146307Courtesy of GENERAL MOTORS COMPANY
  1. Remove the bedplate perimeter bolts (3).
    2. NOTE:

    Do not forget the 2 outside rear bolts (4).

  2. Remove and discard the crankshaft bearing bolts (2).
  3. Using the pry-points and an appropriate prying tool, gently separate the upper and lower crankcase (1).
