Intake Manifold Cleaning and Inspection (LEA, or LUK)
WARNING: This page is about a different variant/trim than selected.

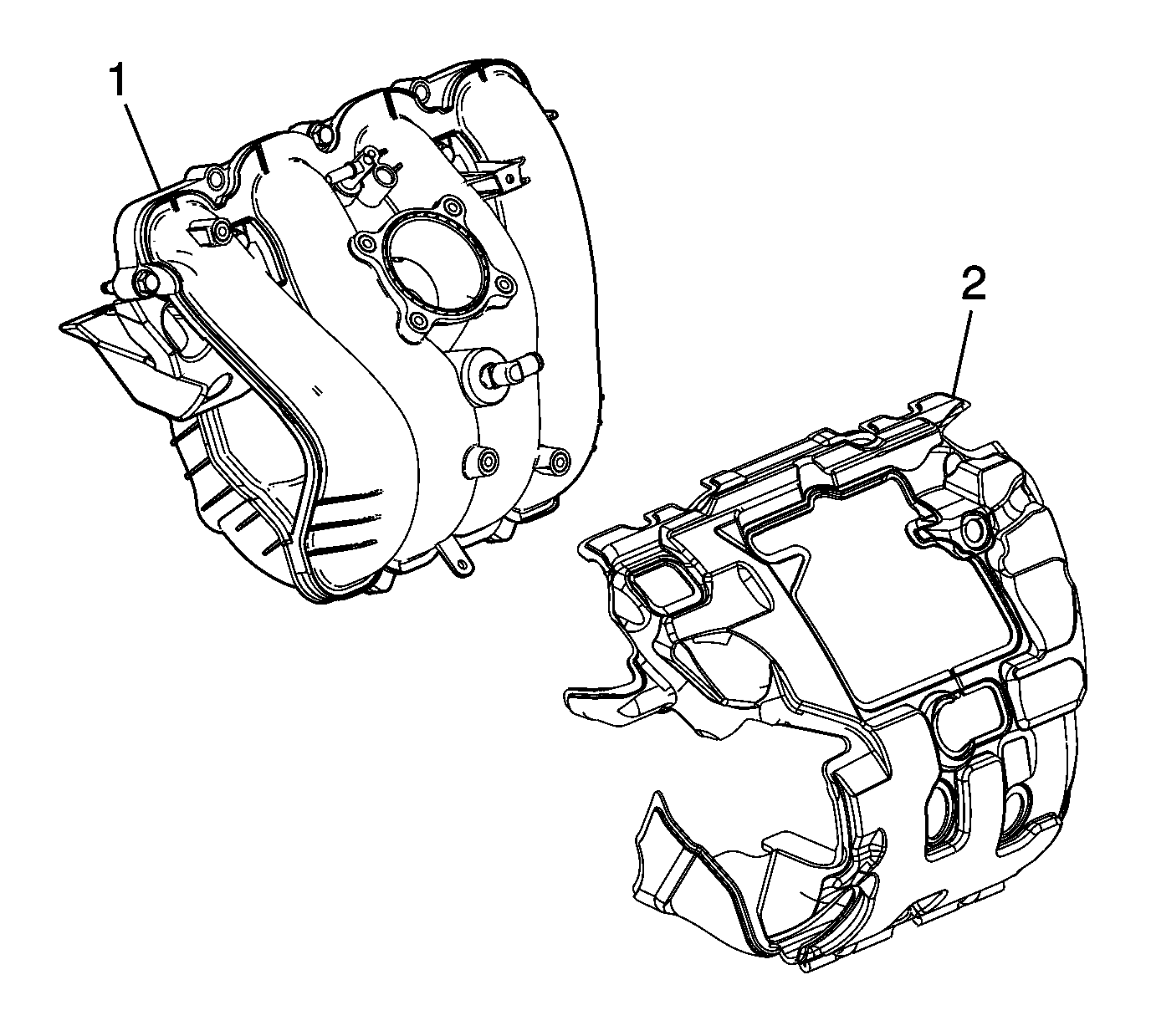

- Clean the intake manifold (1) mating surfaces.
- Inspect the intake manifold for damage.
- Inspect the intake manifold for cracks near metallic inserts.
- Clean and inspect the intake manifold insulator (2) for damage.

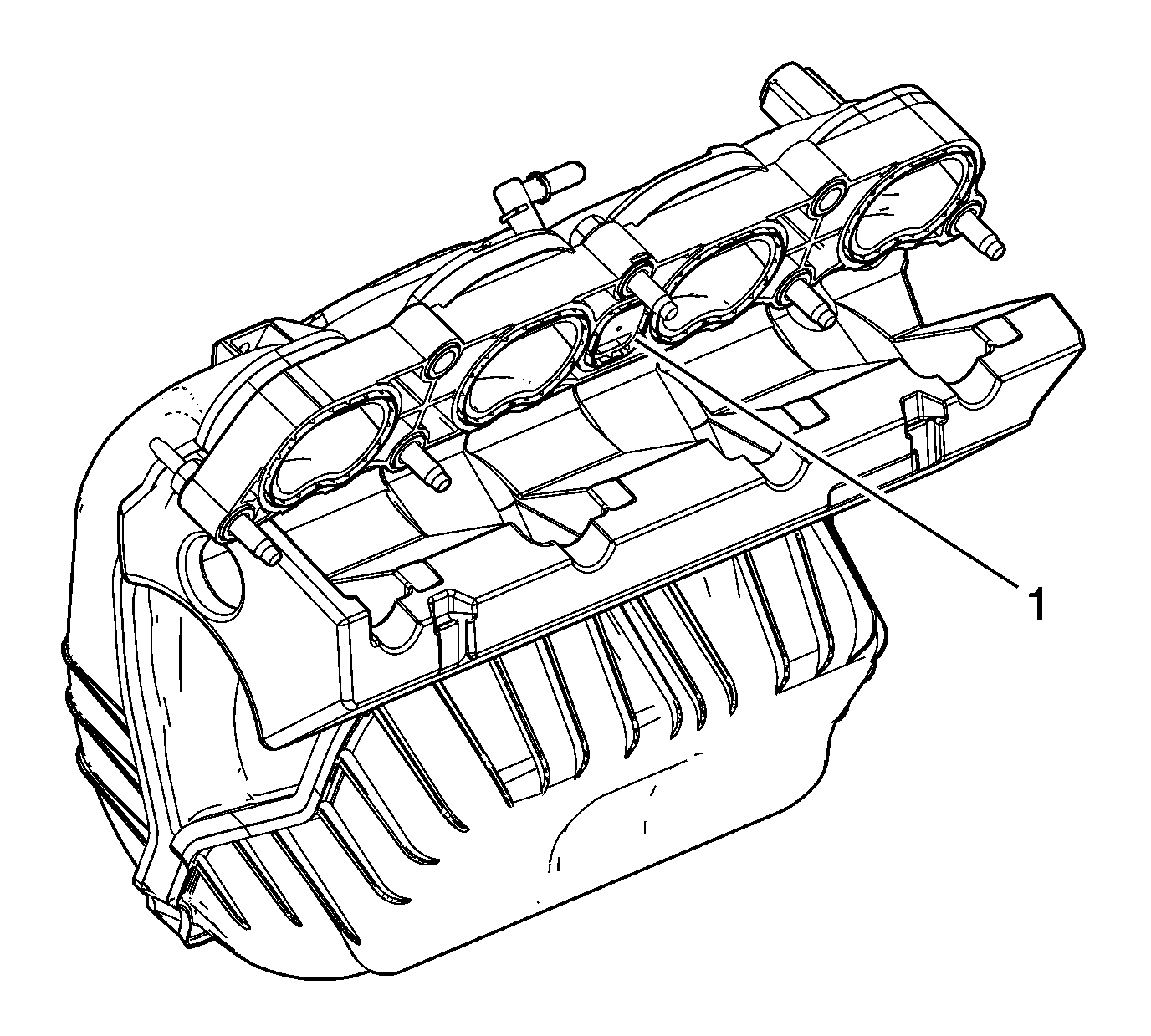

- Inspect the crankcase ventilation passages (1) in the intake manifold face for blockage.
- Clean the crankcase ventilation passages with compressed air if necessary. Use a maximum of 172 kPa (25 psi) of air pressure.
- Replace the intake manifold as necessary.
WARNING:
Refer to Safety Glasses Warning .
