Engine Front Cover and Oil Pump Removal (LEA)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Accessory Drive Belt Tensioner And Bolt
    GM2146281Courtesy of GENERAL MOTORS COMPANY
  1. Remove the accessory drive belt tensioner bolt.
  2. Remove the accessory drive belt tensioner (1).

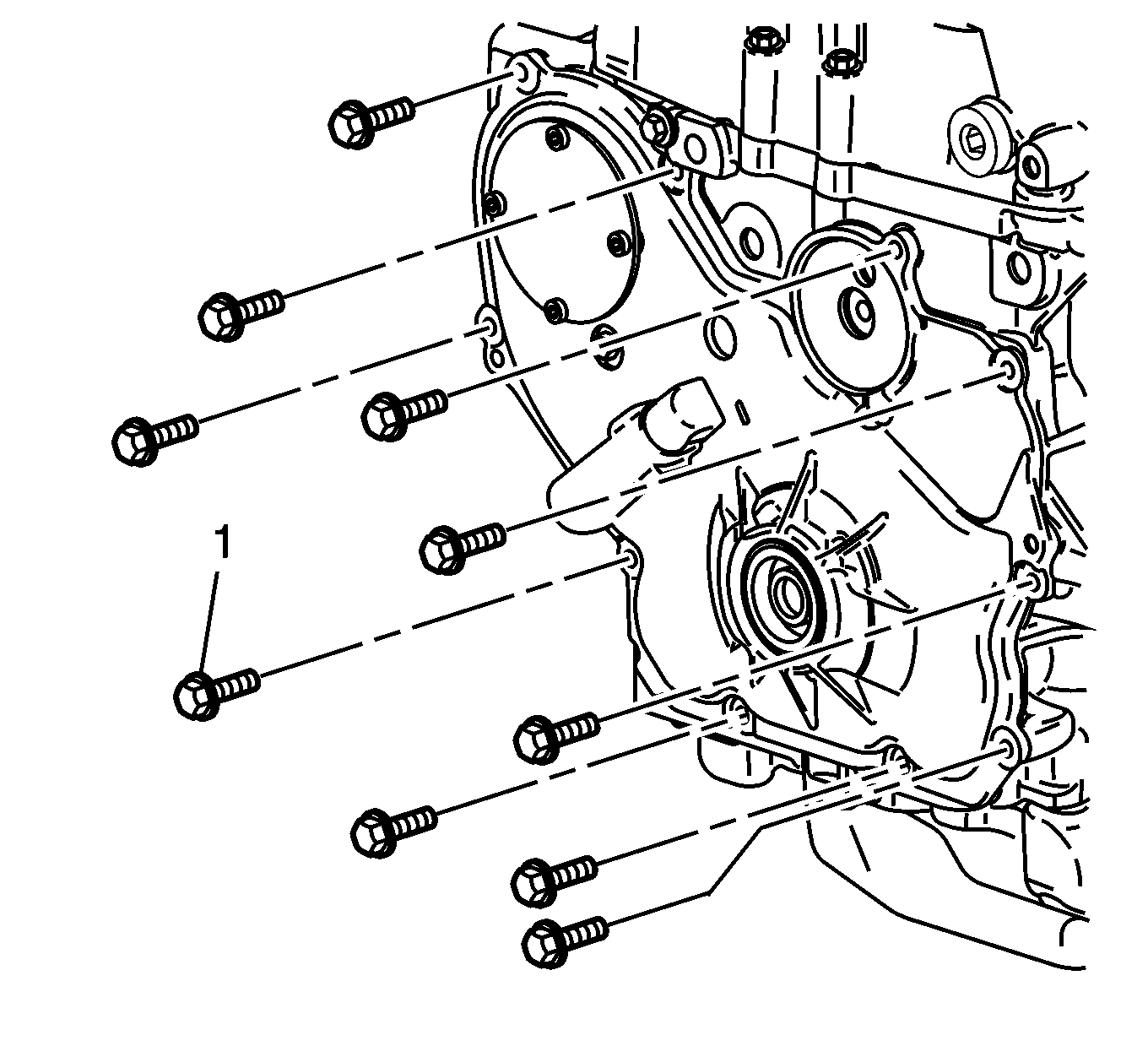

    3. Fig 2: Engine Front Cover Bolts
    GM2146282Courtesy of GENERAL MOTORS COMPANY
  3. Remove the engine front cover bolts (1).

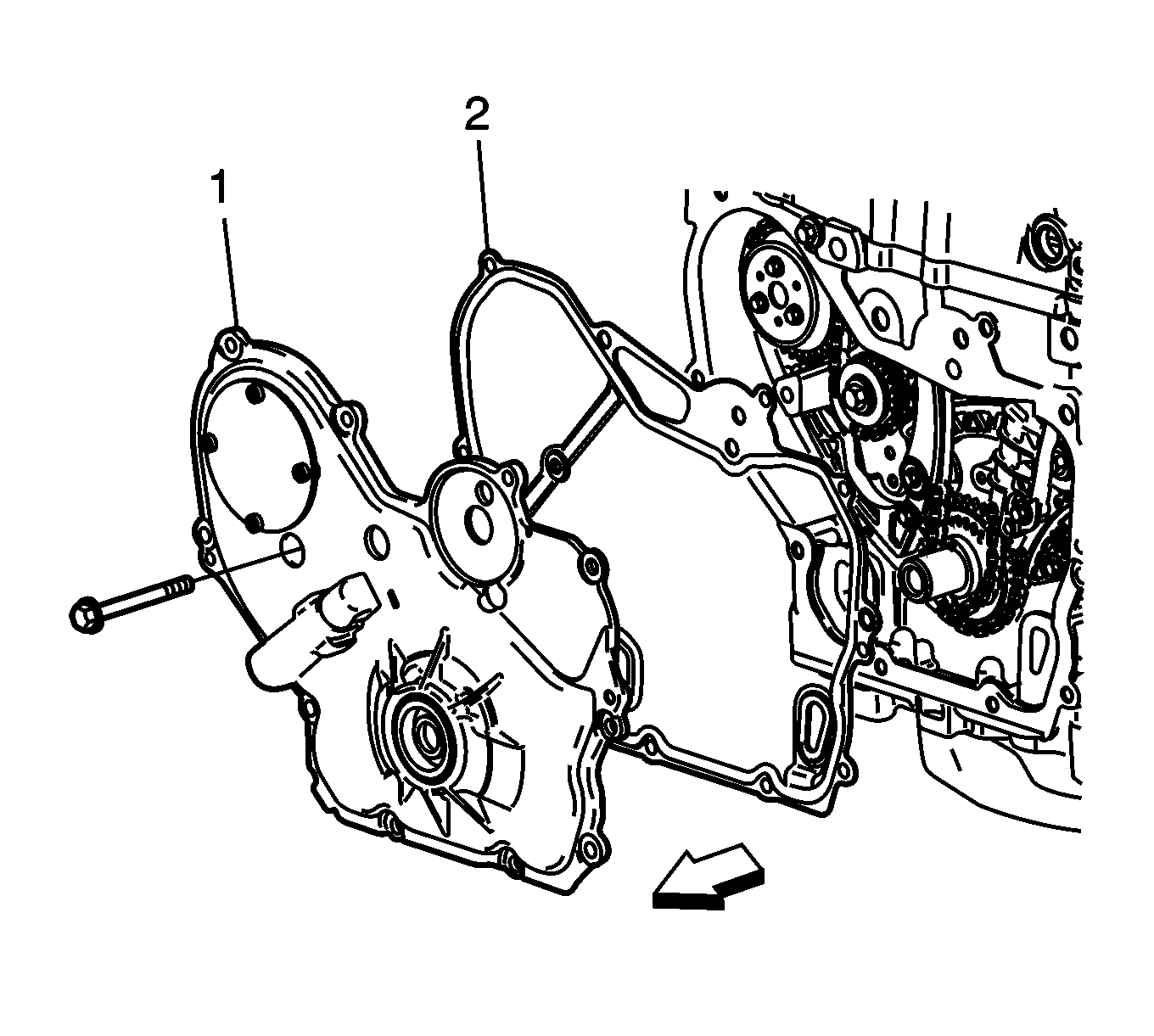

    4. Fig 3: Long Water Pump Bolt And Engine Front Cover
    GM2146283Courtesy of GENERAL MOTORS COMPANY
  4. Remove the long water pump bolt.
  5. Remove the engine front cover (1) and gaskets (2).
  6. Remove the crankshaft front cover oil seal with an appropriate tool.
