Engine Front Cover and Oil Pump Installation (LEA)

WARNING: This page is about a different variant/trim than selected.

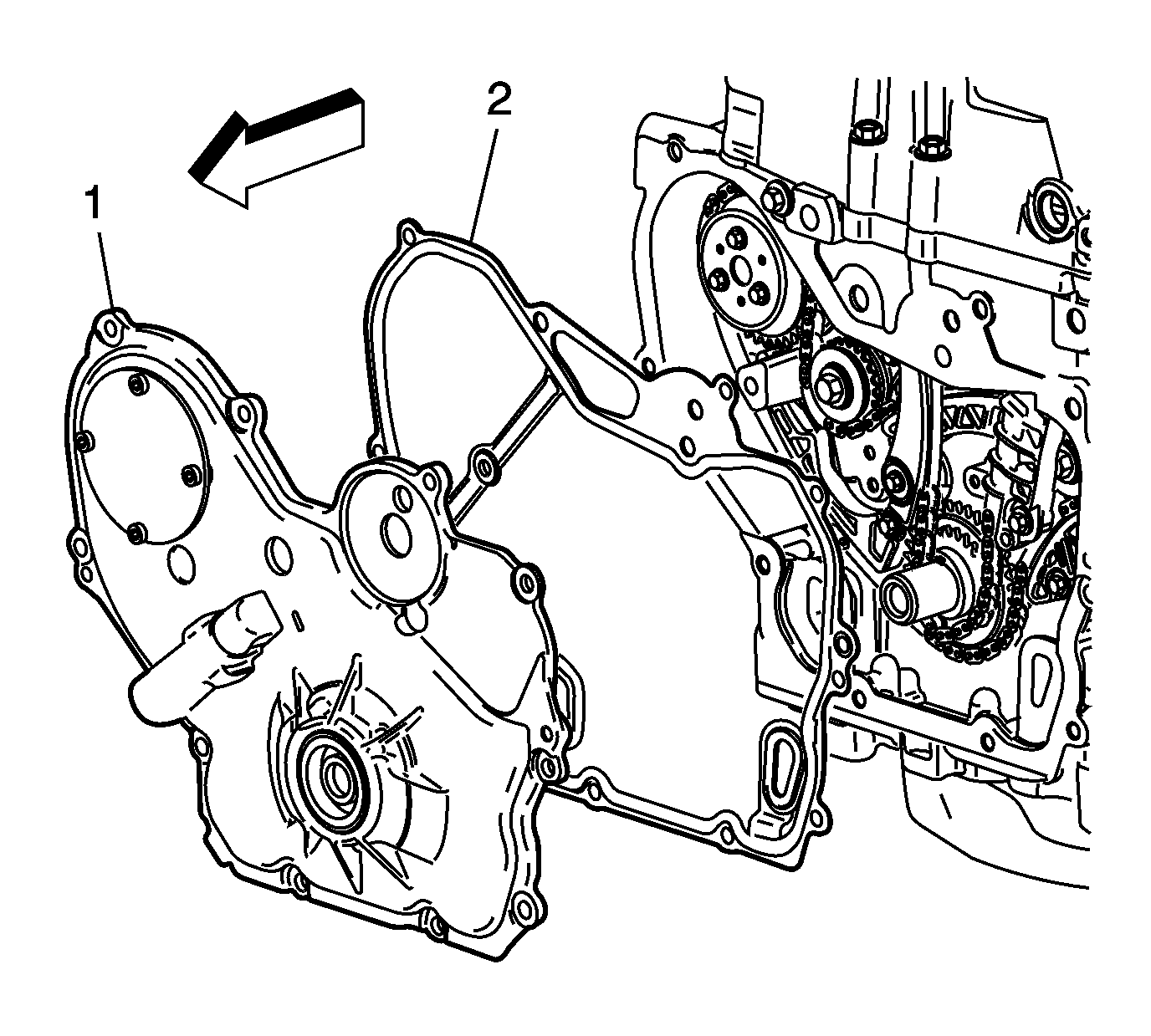

    Fig 1: View Of Engine Front Cover & Gasket
    GM2146385Courtesy of GENERAL MOTORS COMPANY
  1. Install the engine front cover (1) with a new gasket (2).

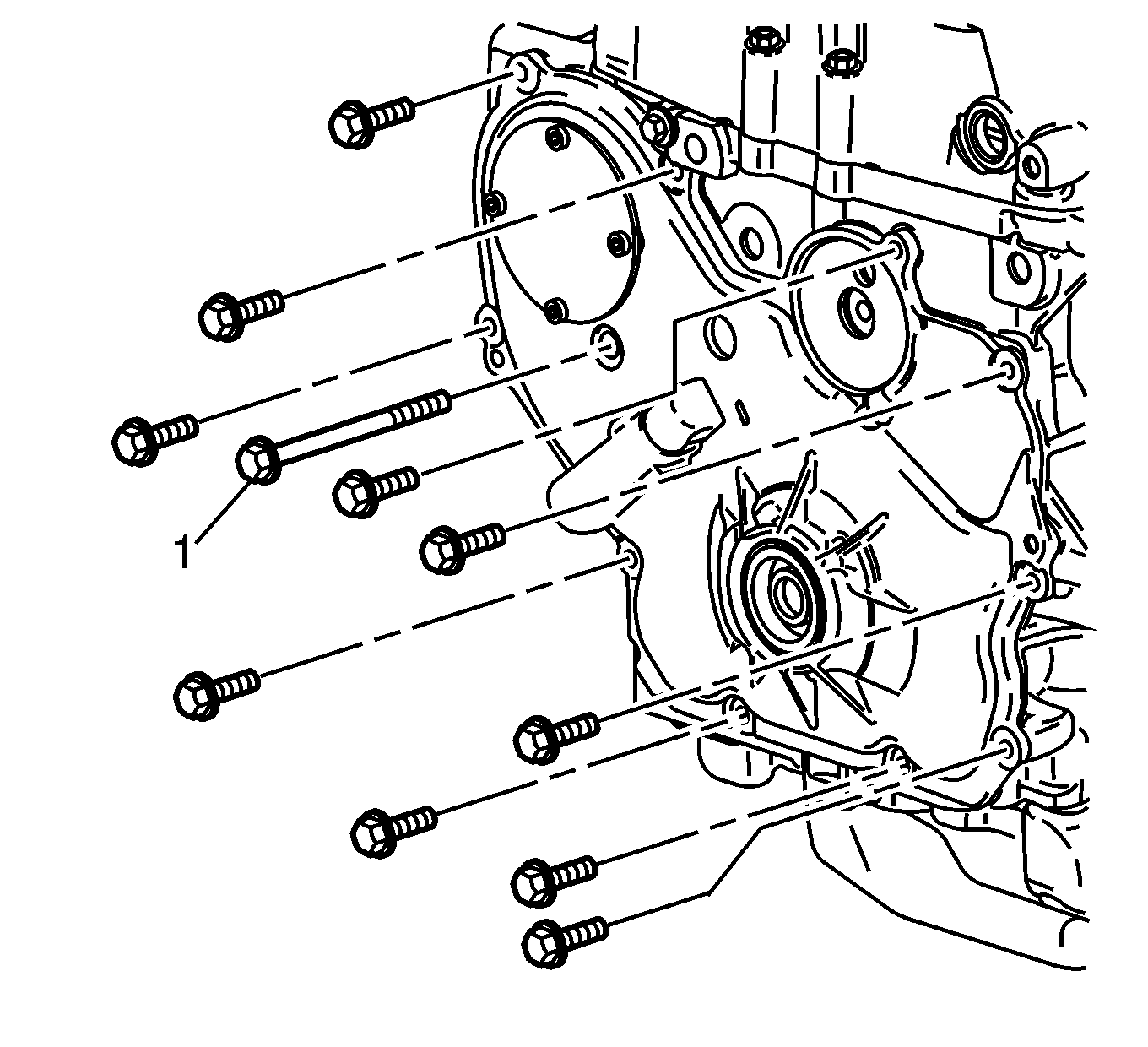

    2. Fig 2: Engine Front Cover Bolts & Long Water Pump Bolt
    GM2146386Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    The center bolt (1) should be tightened last.

  2. Install the engine front cover bolts and tighten to 25 N.m (18 lb ft).
  3. Install the long water pump bolt (1) and tighten to 25 N.m (18 lb ft).

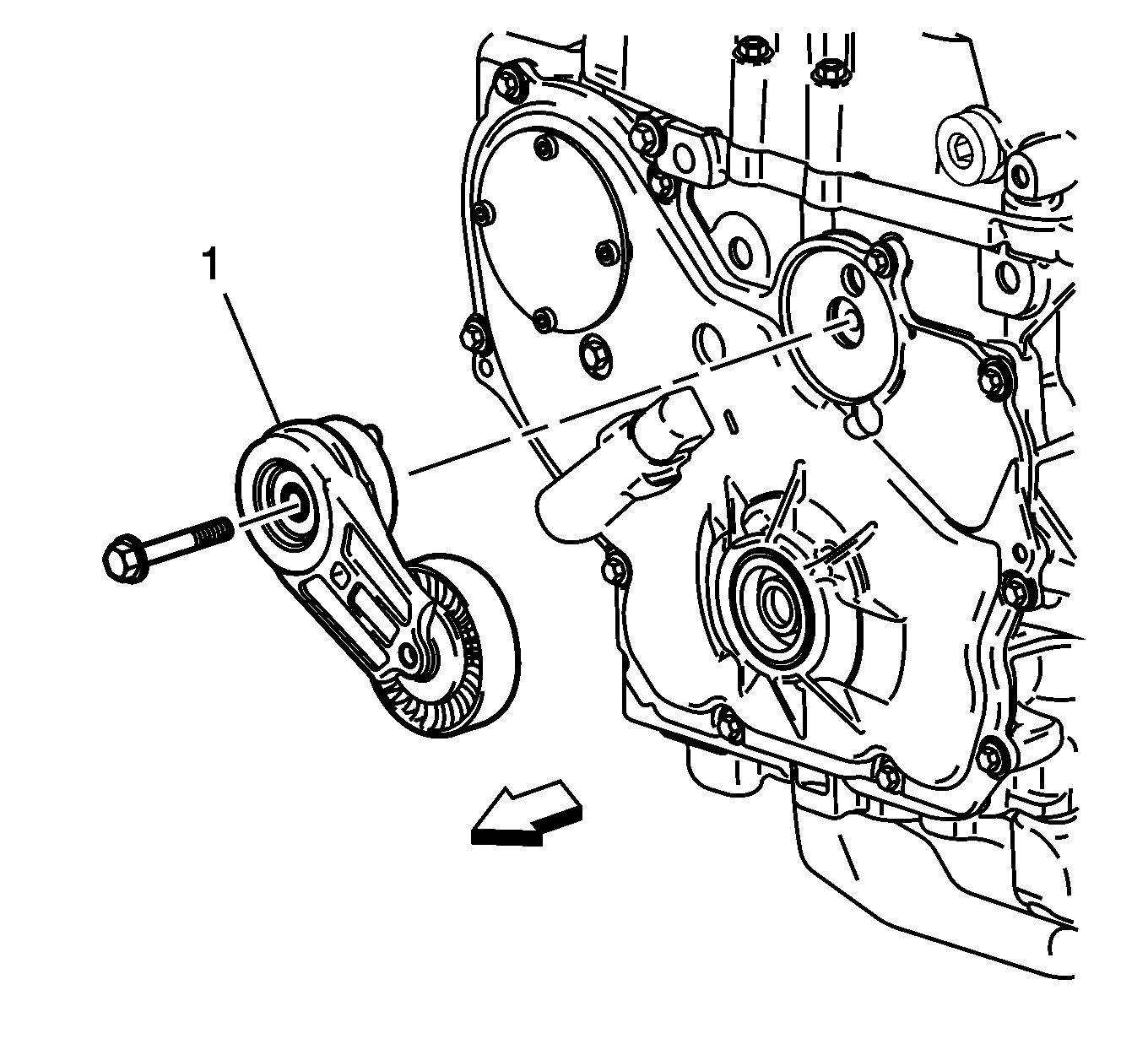

    4. Fig 3: Accessory Drive Belt Tensioner And Bolt
    GM2146281Courtesy of GENERAL MOTORS COMPANY
  4. Install the accessory drive belt tensioner (1).
  5. Install the accessory drive belt tensioner bolt and tighten to 45 N.m (33 lb ft).
