Crankshaft Balancer Removal

Special Tools

EN 43653  Flywheel Holding Tool

For equivalent regional tools, refer to Special Tools

Fig 1: View of Engine Flywheel
Courtesy of GENERAL MOTORS COMPANY
1. Install EN 43653  holding tool (1) in the starter assembly location, engaging the flywheel, in order to prevent crankshaft rotation.

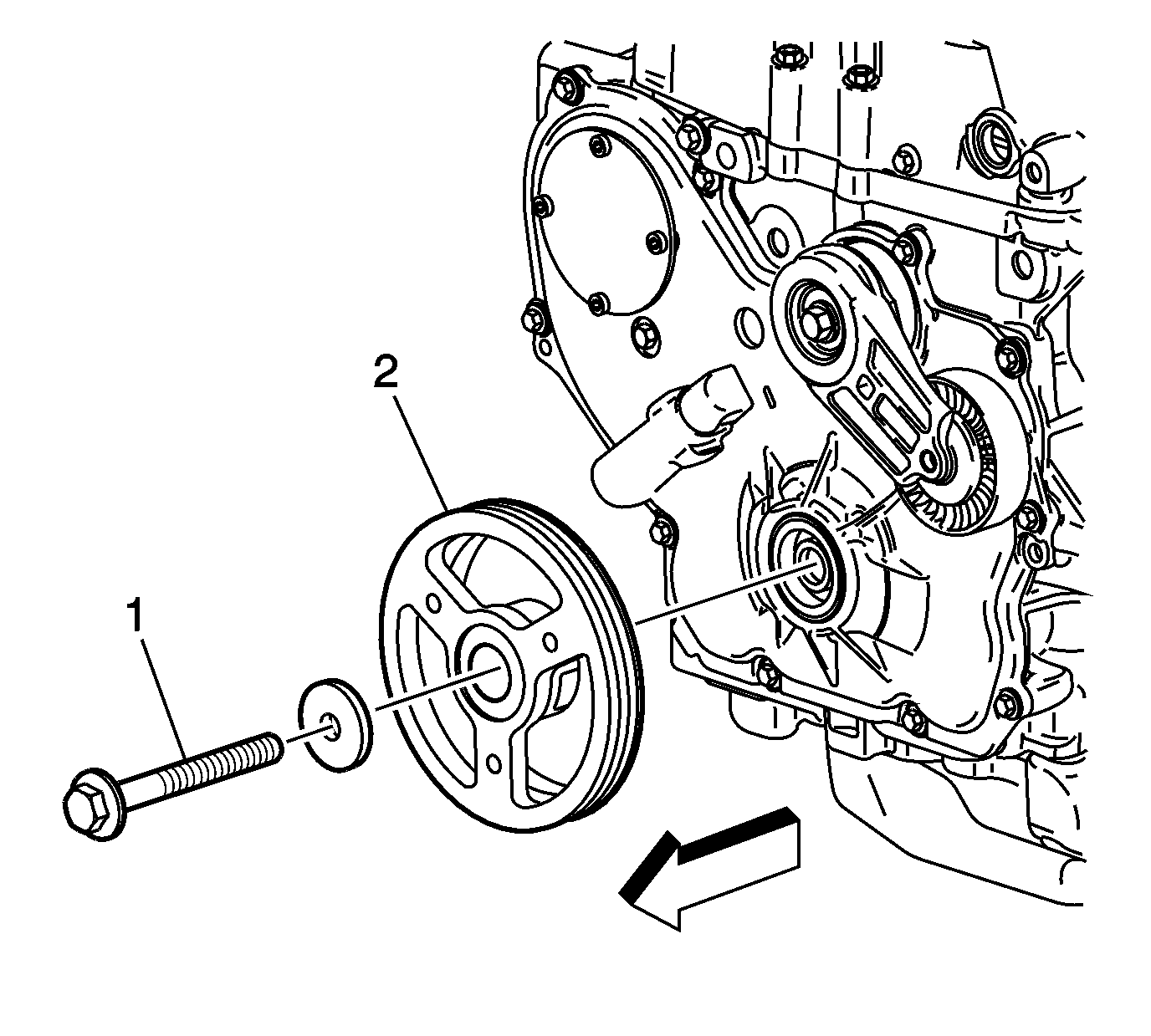

Fig 2: Balancer & Retaining Bolt
Courtesy of GENERAL MOTORS COMPANY
2. Remove the balancer retaining bolt (1) and washer. Discard the bolt.
3. Remove the balancer (2) using a universal removal tool.
