Camshaft Cover Installation (LEA, or LUK)
WARNING: This page is about a different variant/trim than selected.
- Install NEW camshaft cover grommets and camshaft cover bolts if they are serviced with the grommet.

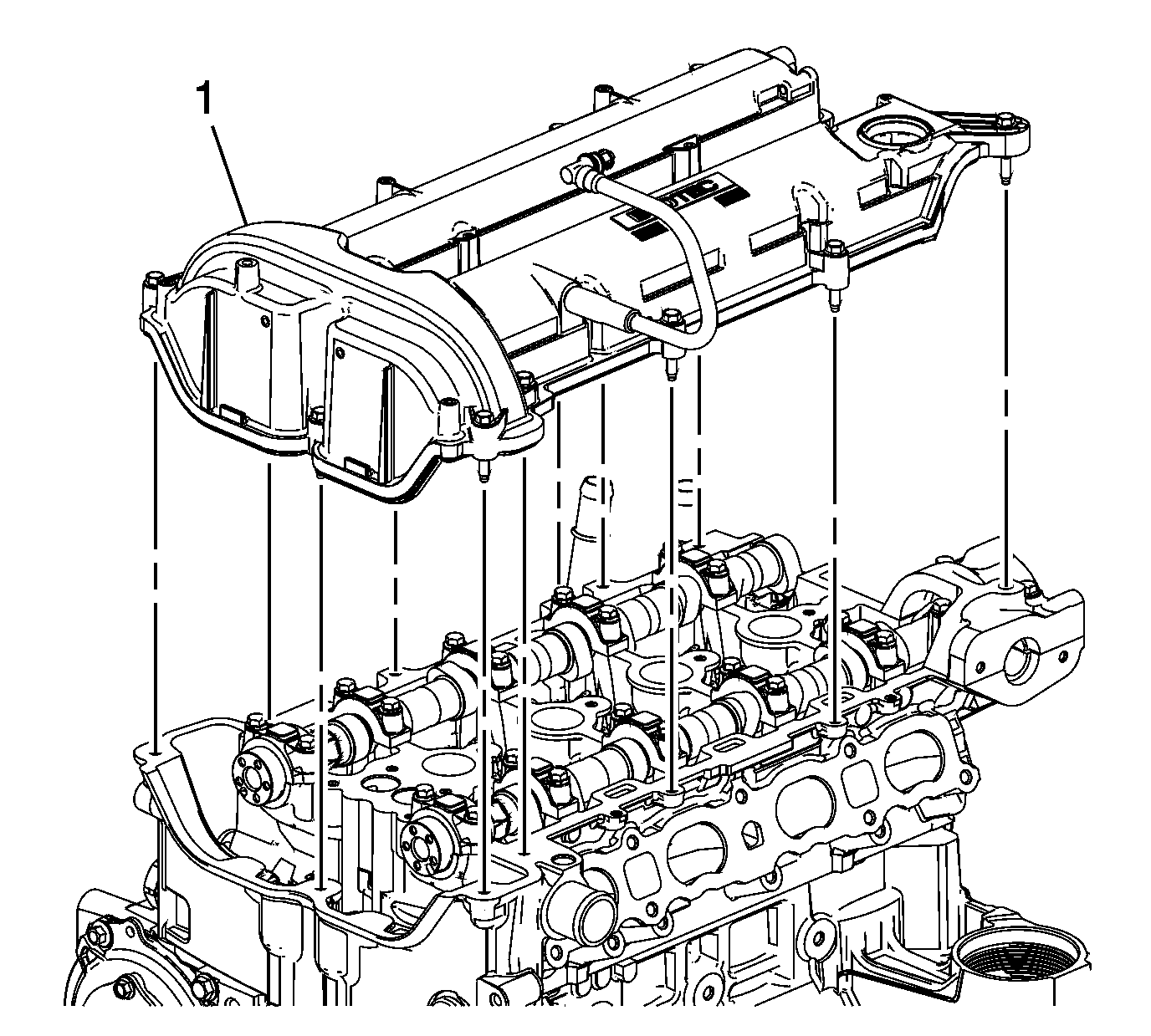

- Assemble the camshaft cover (1) and a NEW gasket. Ensure that the gasket is located in the retaining groove in the camshaft cover.
- Install the cover on the cylinder head and hand start the bolts. Tighten the bolts to 10 N.m (89 lb in).
- Install the camshaft housing cover insulator (1). Tighten the bolts to 10 N.m (89 lb in).
- Inspect the inside of the ignition coil rubber boot for a thin, even coat of grease. If there is no grease present or additional grease is necessary, complete the following procedure:
- Apply a thin coating of dielectric grease evenly to the inside of the ignition coil rubber boot, up to a depth of 15 mm from the end of the boot. Refer to Adhesives, Fluids, Lubricants, and Sealers .
- Remove any excess grease from around the end of the boot, and ensure there is not an excessive amount within the boot.

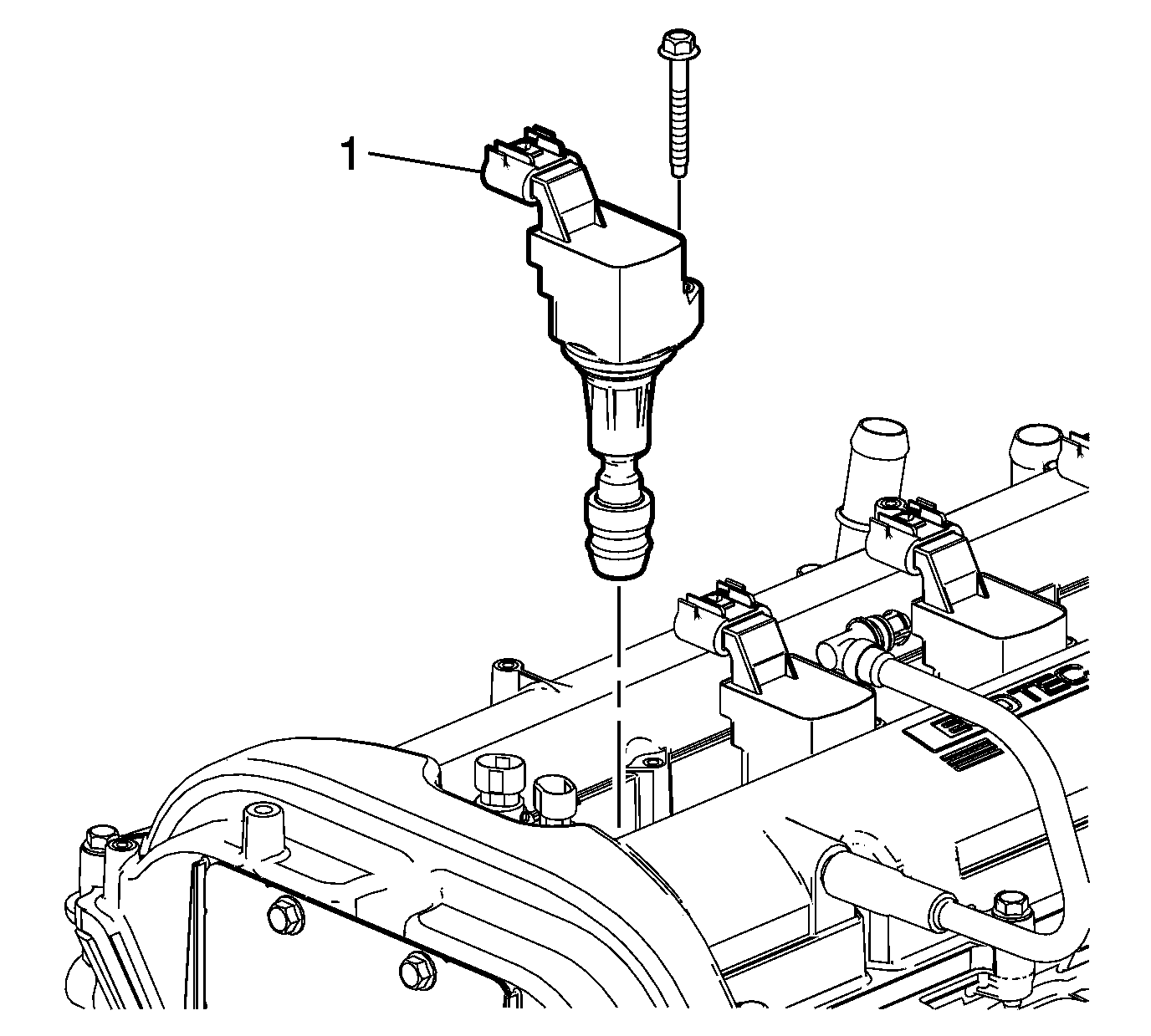

- Install the ignition coil (1). Tighten the bolt to 10 N.m (89 lb in).
- Install the front lift bracket (1).
- Install the front lift bracket bolts and tighten to 25 N.m (18 lb ft).
- Install the rear lift bracket (1).
- Install the rear lift bracket bolts and tighten to 25 N.m (18 lb ft).
CAUTION:
Refer to Fastener Caution .
