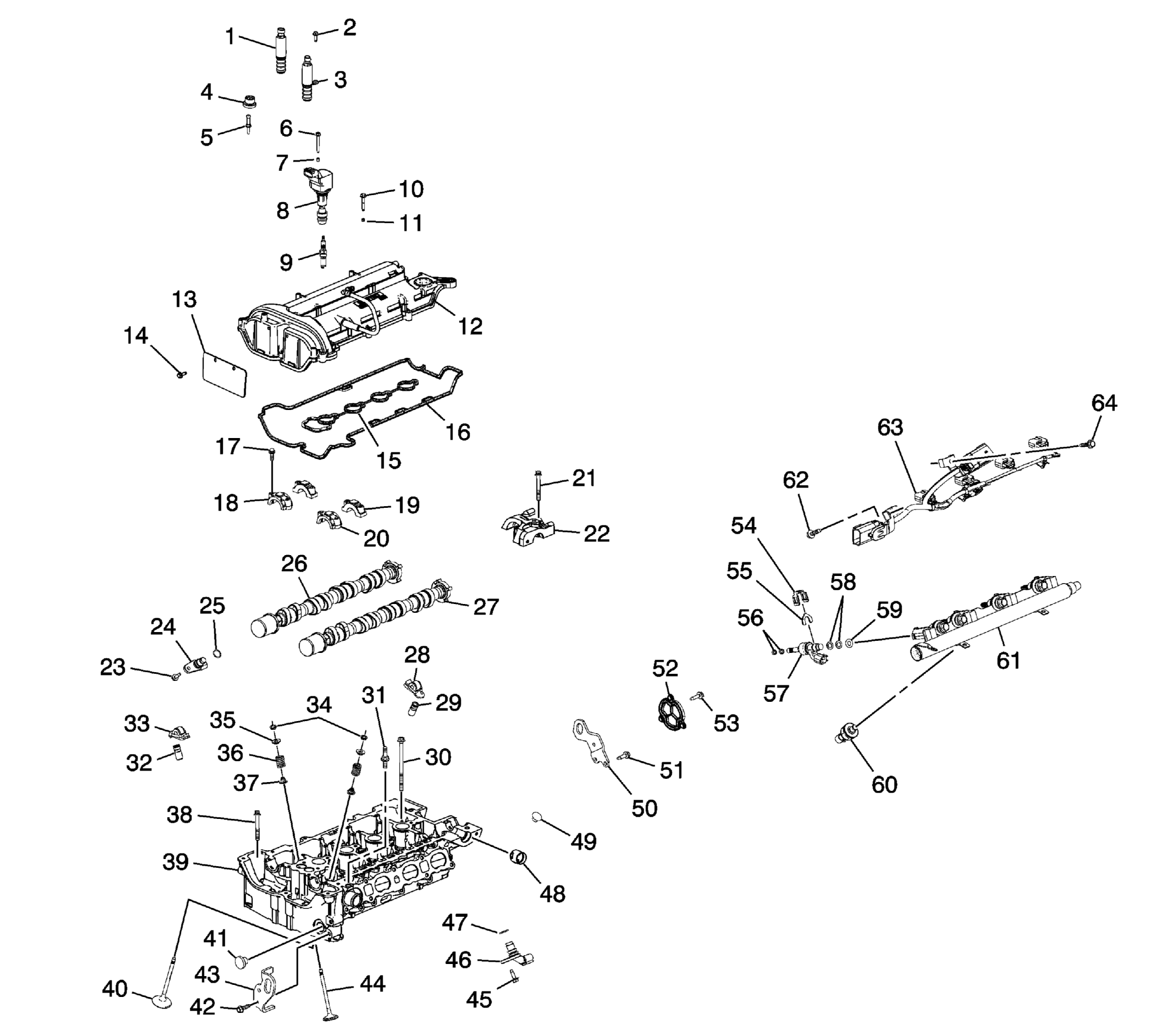

Cylinder Head and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Actuator Solenoid Valve - Exhaust |
| 2 | Camshaft Position Actuator Solenoid Valve Bolt |
| 3 | Camshaft Position Actuator Solenoid Valve - Intake |
| 4 | Upper Intake Manifold Sight Shield Grommet |
| 5 | Ball Stud |
| 6 | Ignition Coil Bolt |
| 7 | Ignition Coil Bolt Retainer |
| 8 | Ignition Coil |
| 9 | Spark Plug |
| 10 | Camshaft Cover Bolt |
| 11 | Camshaft Cover Bolt Retainer |
| 12 | Camshaft Cover |
| 13 | Camshaft Housing Cover Insulator |
| 14 | Camshaft Housing Cover Insulator Bolt |
| 15 | Camshaft Cover Seal |
| 16 | Camshaft Cover Seal |
| 17 | Camshaft Bearing Cap Bolt |
| 18 | Camshaft Bearing Front Cap |
| 19 | Camshaft Bearing Cap |
| 20 | Camshaft Bearing Front Cap |
| 21 | Camshaft Rear Cap Bolt |
| 22 | Intake Camshaft Rear Cap |
| 23 | Camshaft Position Sensor Bolt |
| 24 | Camshaft Position Sensor |
| 25 | Camshaft Position Sensor O-Ring |
| 26 | Exhaust Camshaft |
| 27 | Intake Camshaft |
| 28 | Roller Finger Follower |
| 29 | Hydraulic Lash Adjuster |
| 30 | Cylinder Head Bolt |
| 31 | Engine Coolant Air Bleed Fitting |
| 32 | Hydraulic Lash Adjuster |
| 33 | Roller Finger Follower |
| 34 | Valve Keys |
| 35 | Valve Spring Retainer |
| 36 | Valve Spring |
| 37 | Valve Stem Seal |
| 38 | Small Cylinder Head Bolt |
| 39 | Cylinder Head |
| 40 | Valve |
| 41 | Timing Chain Guide Bolt Access Hole Plug |
| 42 | Front Lift Bracket Bolt |
| 43 | Front Lift Bracket |
| 44 | Valve |
| 45 | Camshaft Position Sensor Bolt |
| 46 | Camshaft Position Sensor |
| 47 | Camshaft Position Sensor O-Ring |
| 48 | High Pressure Fuel Pump Roller Lifter |
| 49 | Cylinder Head Gallery Plug |
| 50 | Rear Lift Bracket |
| 51 | Rear Lift Bracket Bolt |
| 52 | Cylinder Head Cover Plate |
| 53 | Cylinder Head Cover Plate Bolt |
| 54 | Fuel Injector Retainer |
| 55 | Fuel Injector Bushing |
| 56 | Fuel Injector Seal |
| 57 | Multiport Fuel Injector |
| 58 | Fuel Injector Spacer |
| 59 | Fuel Injector O-Ring |
| 60 | Fuel Injection Fuel Pressure Sensor Assembly |
| 61 | Multiport Fuel Injection Fuel Rail |
| 62 | Fuel Injector Wiring Harness Bolt |
| 63 | Fuel Injector Wiring Harness |
| 64 | Fuel Injector Wiring Harness Bolt |
