Turbocharger Wastegate Regulator Solenoid Valve Replacement

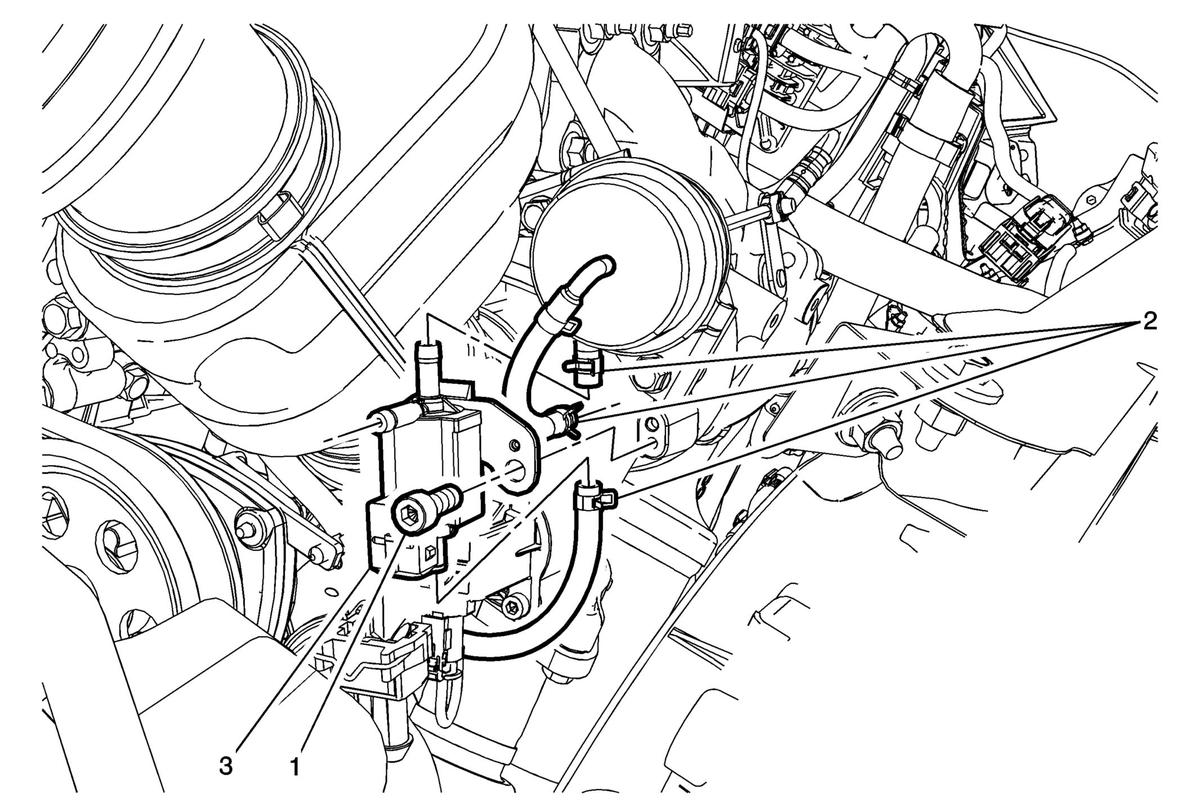

Fig 1: Turbocharger Wastegate Regulator Solenoid Valve (LTG)
GM2864227Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Turbocharger Wastegate Regulator Solenoid Valve Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
7.8 N.m (69 lb in)
2 Vacuum Hose and Clamp (Qty: 2)
3 Turbocharger Wastegate Regulator Solenoid Valve
Procedure
Disconnect the turbocharger wastegate regulator harness connector.
