Turbocharger Bypass Valve Solenoid Replacement

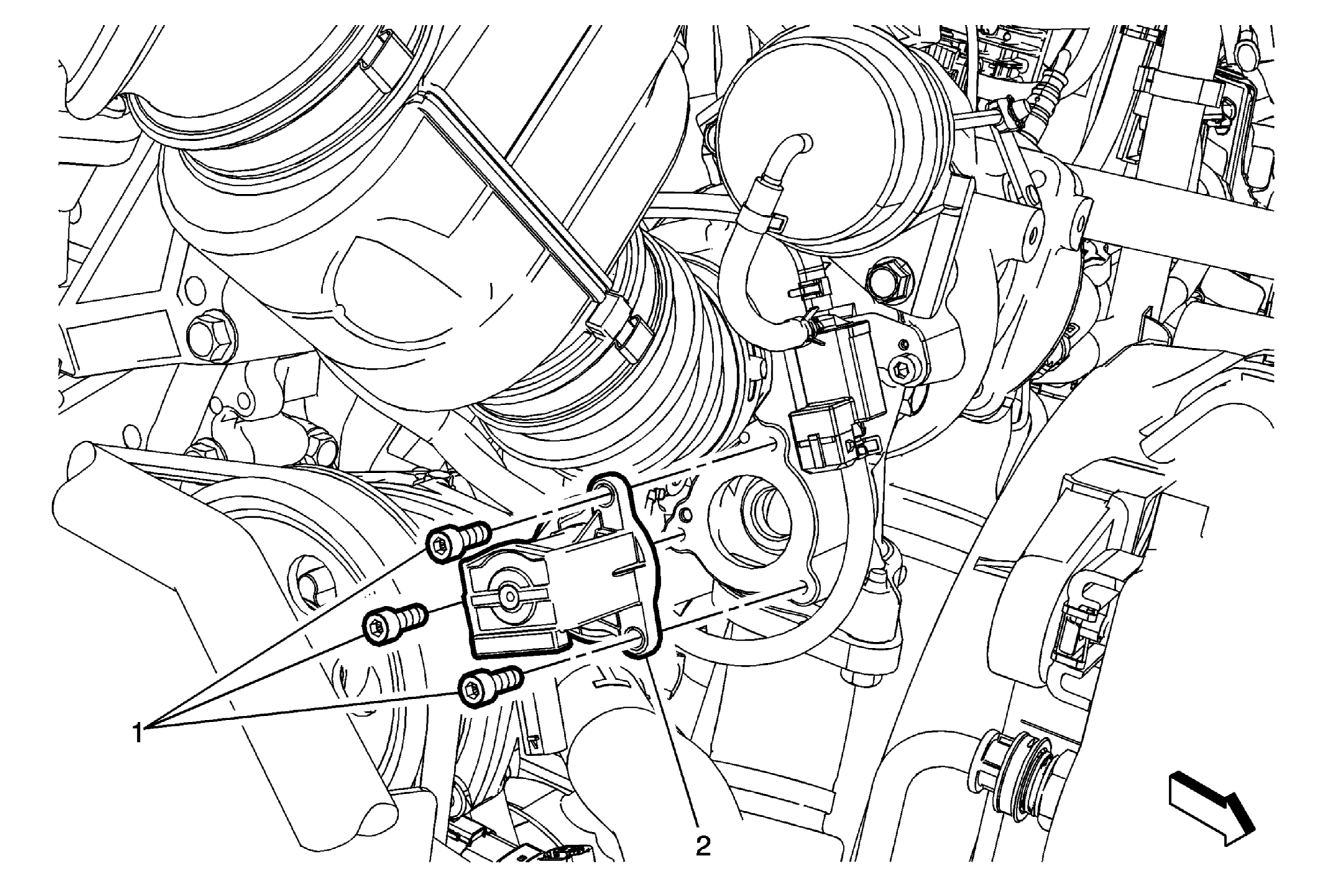

Fig 1: Turbocharger Bypass Valve Solenoid (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Turbocharger Bypass Valve Solenoid Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 7.8 N.m (69 lb in)
2	Turbocharger Bypass Valve Solenoid Procedure Disconnect the turbocharger bypass valve solenoid harness connector. Inspect the turbocharger bypass valve solenoid seal and replace if necessary.

Callout

Component Name

Turbocharger Bypass Valve Solenoid Fasteners (Qty: 3)

CAUTION:

Tighten
7.8 N.m (69 lb in)

Turbocharger Bypass Valve Solenoid

Procedure
