Fuel Pressure Sensor Replacement - Fuel Feed Pipe (FWD)

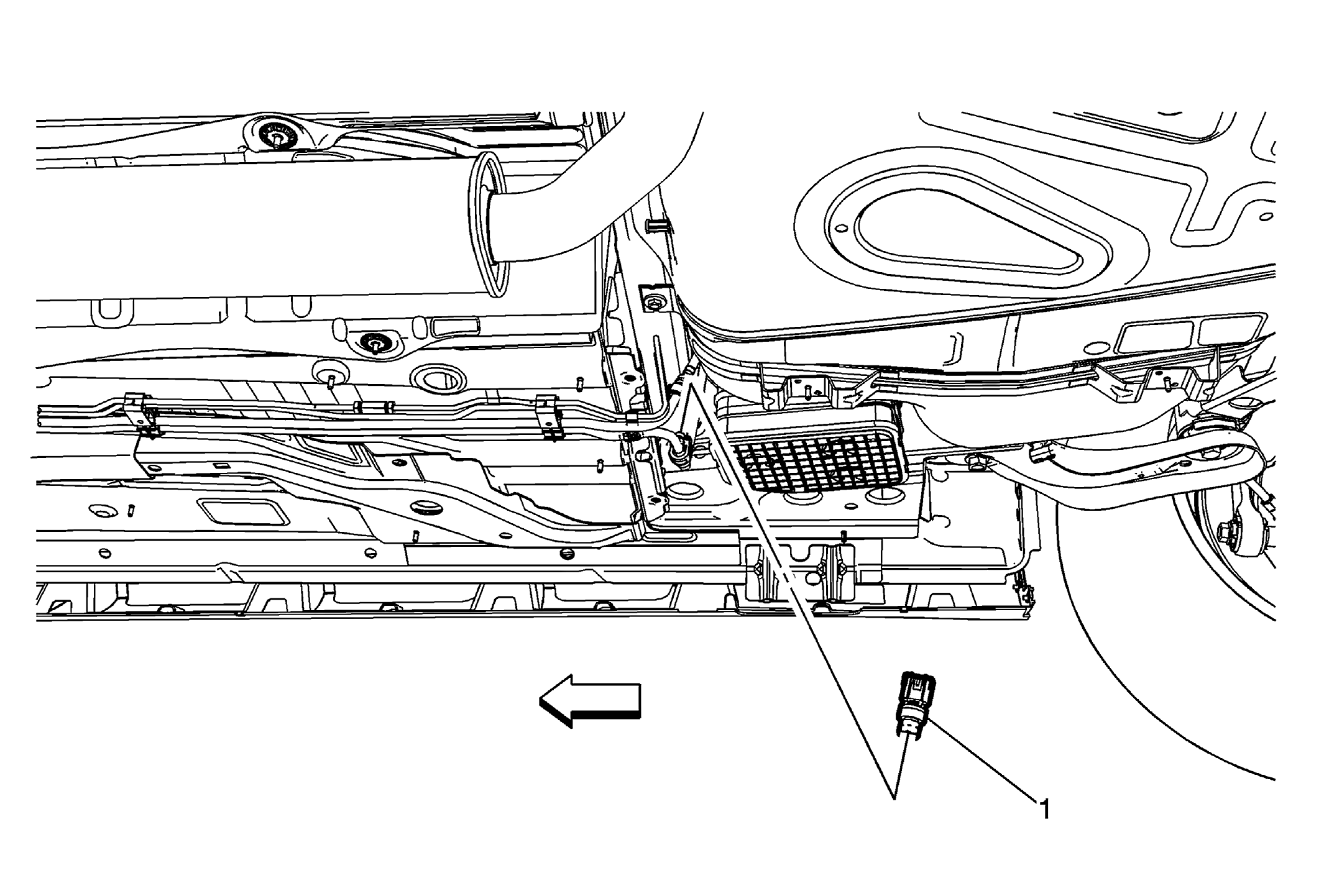

Fig 1: Fuel Pressure Sensor - Fuel Feed Pipe (FWD)
GM2756281Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the right side rear air deflector. Refer to Underbody Rear Air Deflector Replacement - Right Side (HP6) .
1 Fuel Pressure Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .

Procedure

  1. Disconnect the electrical connector.
  2. Use a NEW O-ring whenever the sensor is removed.

Tighten
15 N.m (11 lb ft)
