Fuel Injection Fuel Rail Noise Shield Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold. Refer to Intake Manifold Replacement . |
|

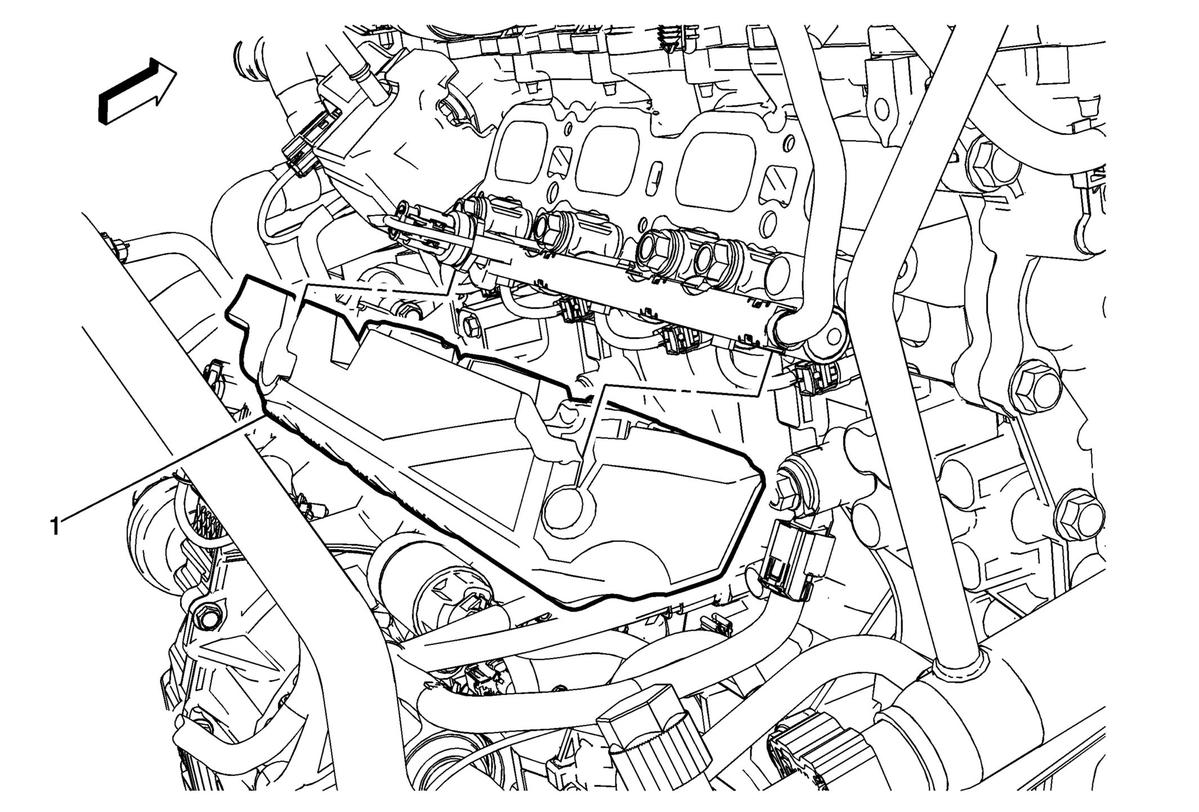

| 1 | Fuel Injection Fuel Rail Noise Shield
NOTE:
Replace the noise cancelling foam component if it is exposed to and has absorbed automotive fluids.
NOTE:
The fuel injection noise shield just snaps into place. |
