Installation Procedure

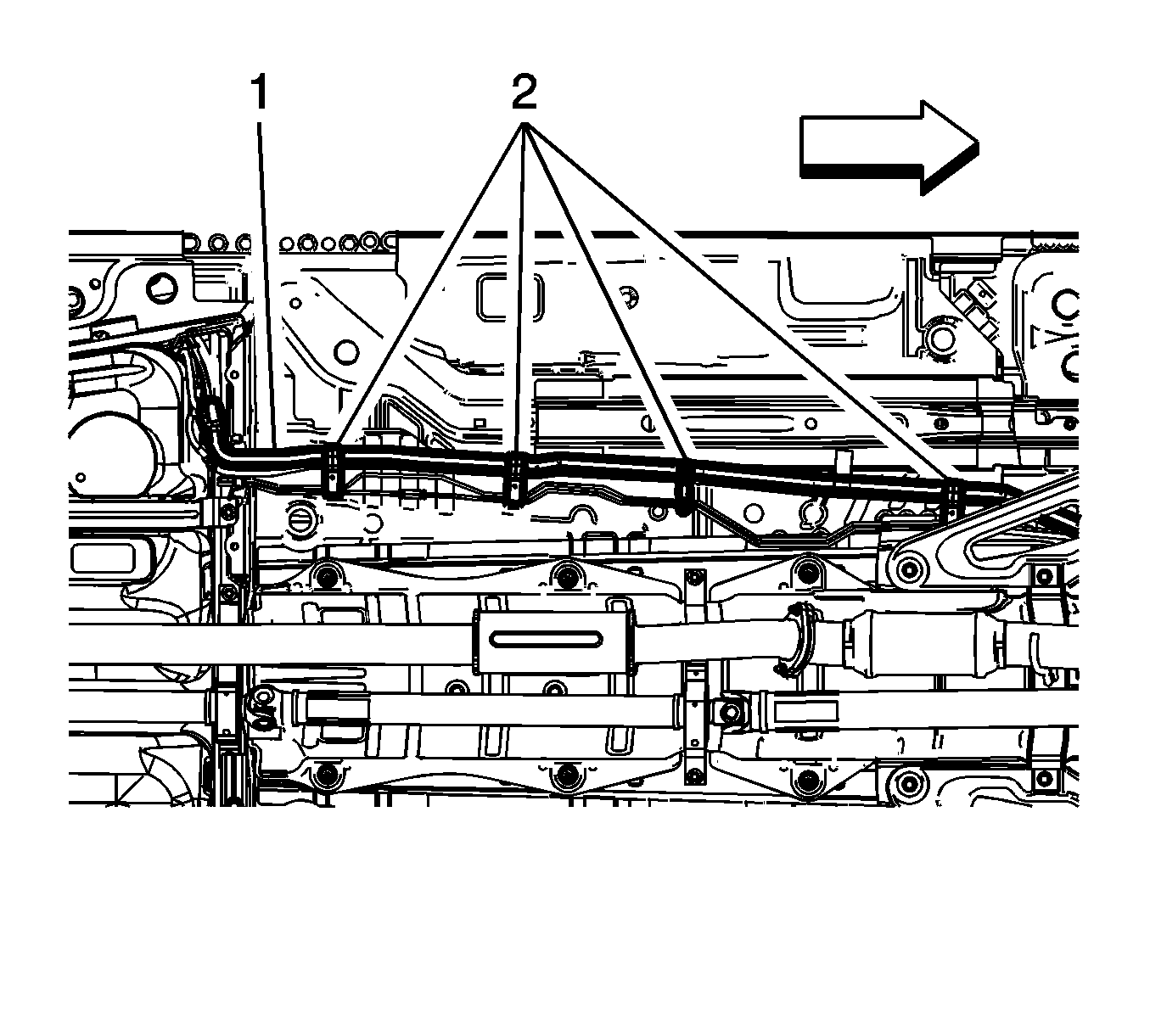

    Fig 1: Fuel Feed Pipe
    GM3448612Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel feed pipe (1) to the vehicle.
  2. Connect the fuel feed pipe (1) and install to the retainers (2). Refer to Plastic Collar Quick Connect Fitting Service .
  3. Lower the vehicle.

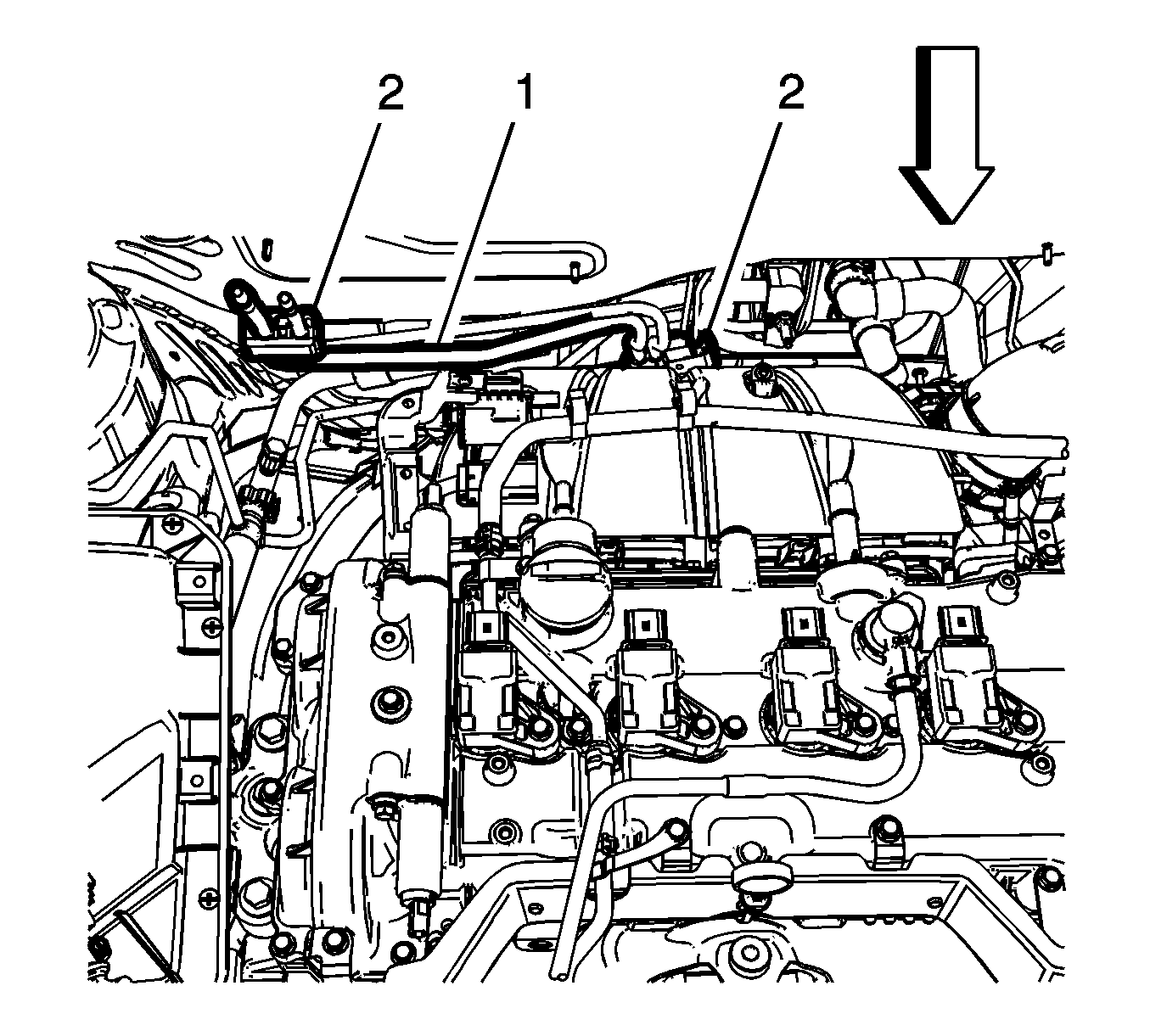

    4. Fig 2: Fuel Feed Pipe
    GM2868543Courtesy of GENERAL MOTORS COMPANY
  4. Install the fuel feed pipe (1) to the retainers (2).
  5. Install the fuel feed front pipe. Refer to Fuel Feed Front Pipe Replacement (LTG)  .
