Installation Procedure

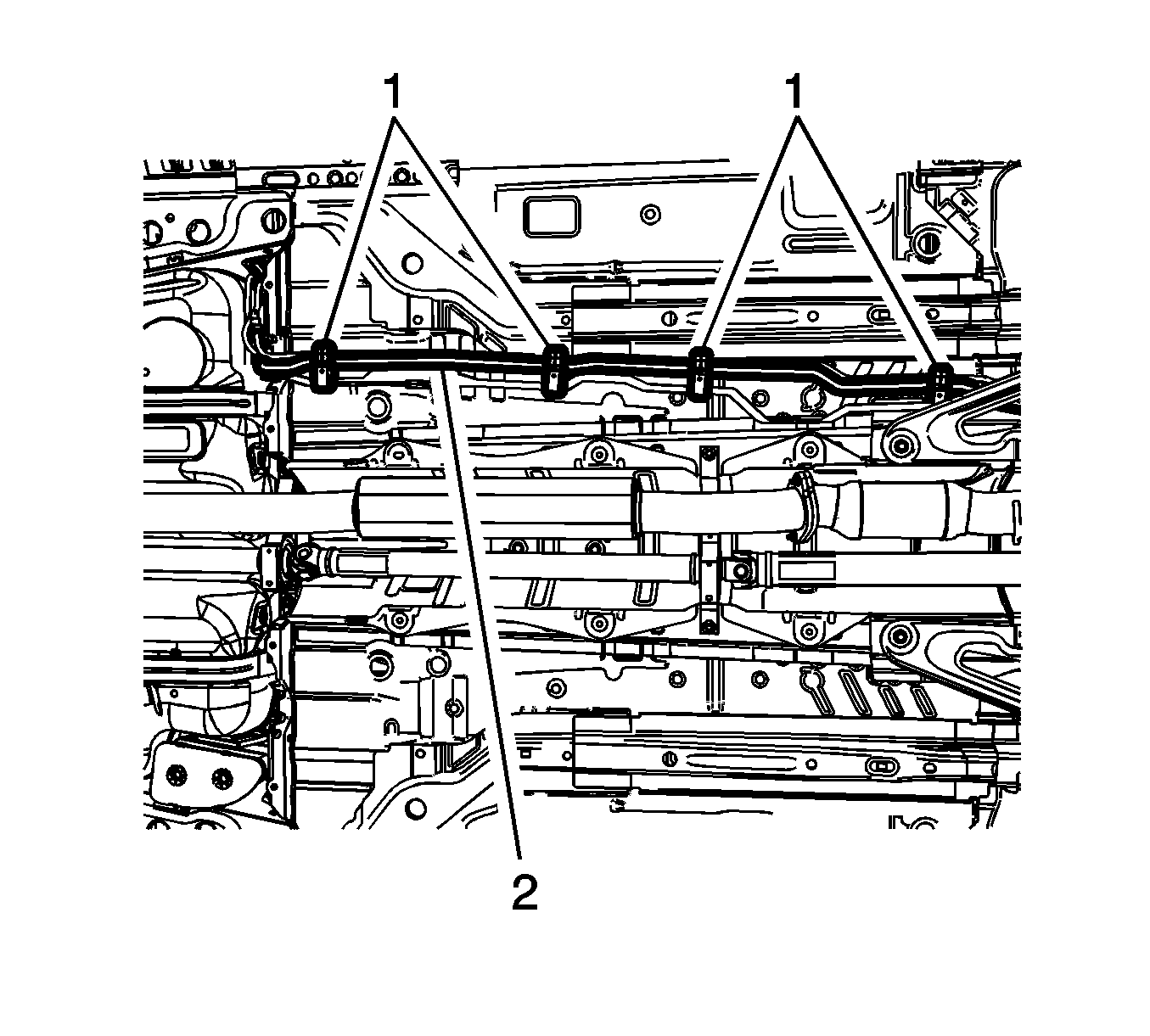

    Fig 1: Evaporative Emission Pipe And Evaporative Emission Canister Purge Pipe
    GM3336845Courtesy of GENERAL MOTORS COMPANY
  1. Install the evaporative emission pipe (2) to the vehicle.
  2. Connect the evaporative emission pipe retainers (1).
  3. Connect the evaporative emission pipe (2) to the evaporative emission canister purge pipe. Refer to Plastic Collar Quick Connect Fitting Service .
  4. Lower the vehicle.
    5. Fig 2: Evaporative Emission Pipe And Retainers
    GM2868544Courtesy of GENERAL MOTORS COMPANY
  5. Install the evaporative emission pipe (1) to the retainers (2).
  6. Install the evaporative emission front pipe. Refer to Evaporative Emission Front Pipe Replacement (LTG)  .
