Evaporative Emission Canister Purge Solenoid Valve Replacement

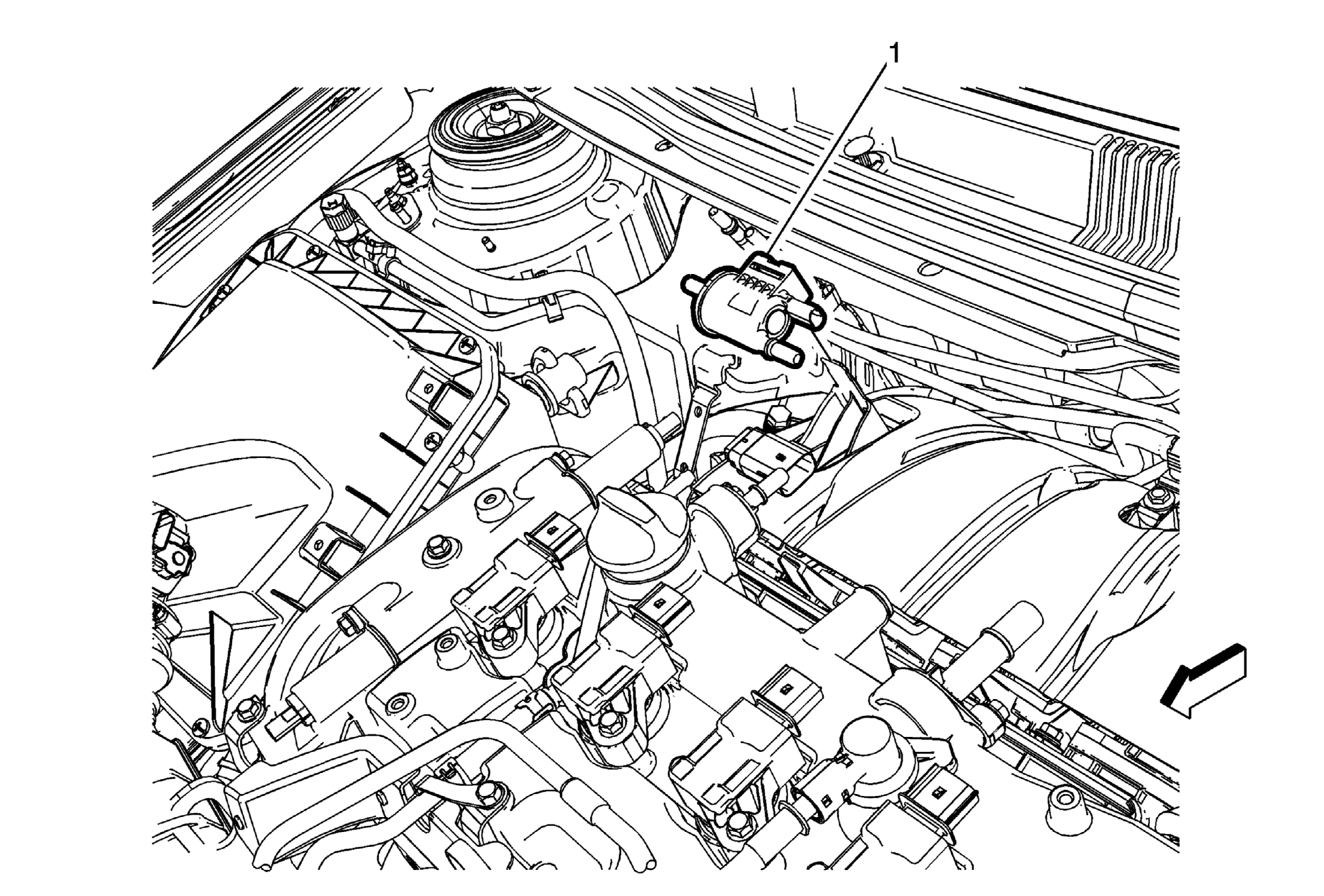

Fig 1: Evaporative Emission Canister Purge Solenoid Valve (LTG)
GM2868550Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Disconnect the EVAP hoses. Refer to Plastic Collar Quick Connect Fitting Service .
1 Evaporative Emission Canister Purge Solenoid Valve

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tab.
