Removal Procedure

  1. Remove the brake boost pump inlet hose from the charge air cooler outlet air tube.

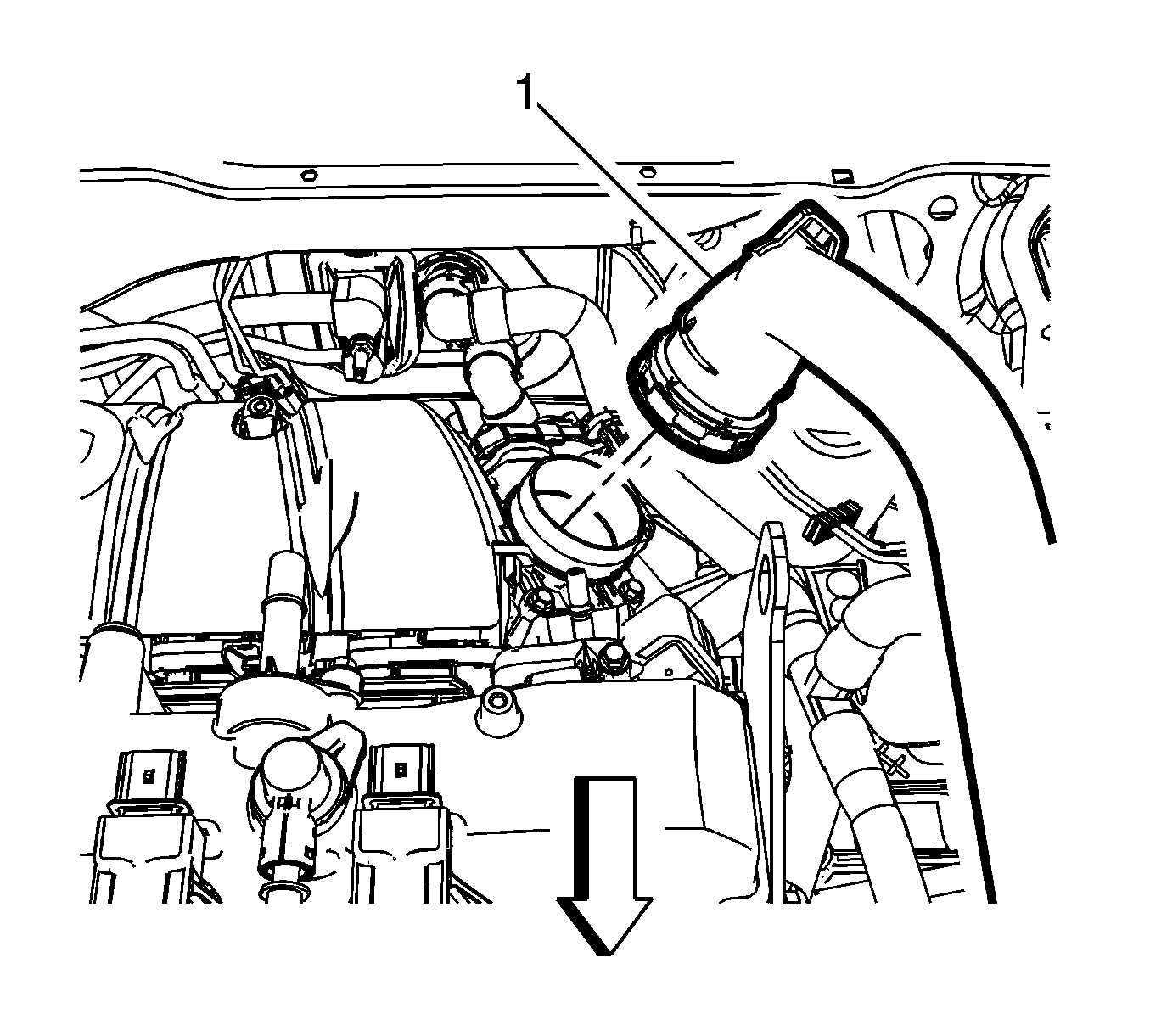

    2. Fig 1: Charge Air Cooler Outlet Air Tube
    GM2868570Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Rotate the locking ring counterclockwise until it stops and hold in position while disengaging the connector.

  2. Remove the charge air cooler outlet air tube (1) from the throttle body.

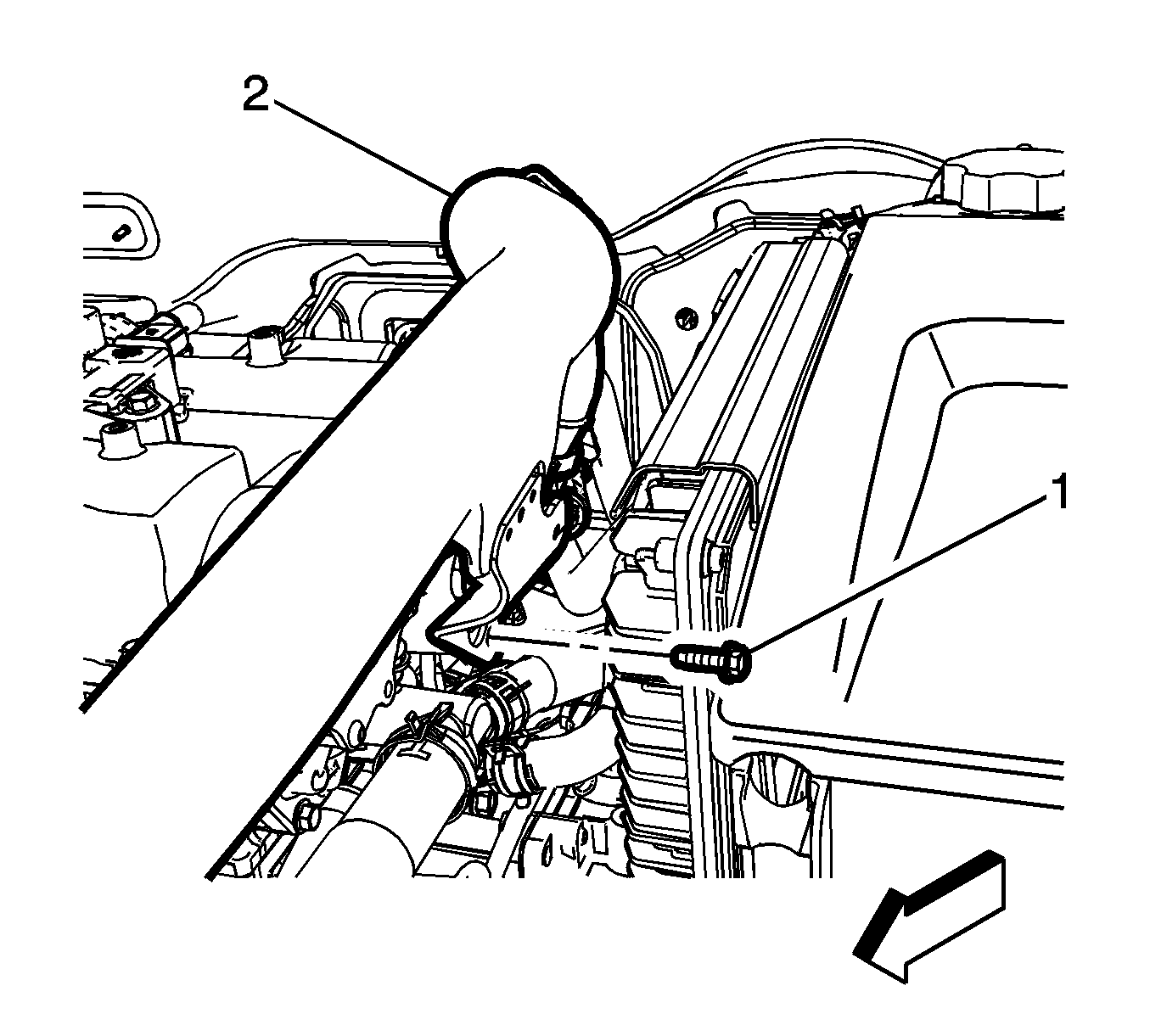

    3. Fig 2: Charge Air Cooler Outlet Air Tube Bolt
    GM2868561Courtesy of GENERAL MOTORS COMPANY
  3. Remove the charge air cooler outlet air tube bolt (1) from the charge air cooler outlet air tube (2).

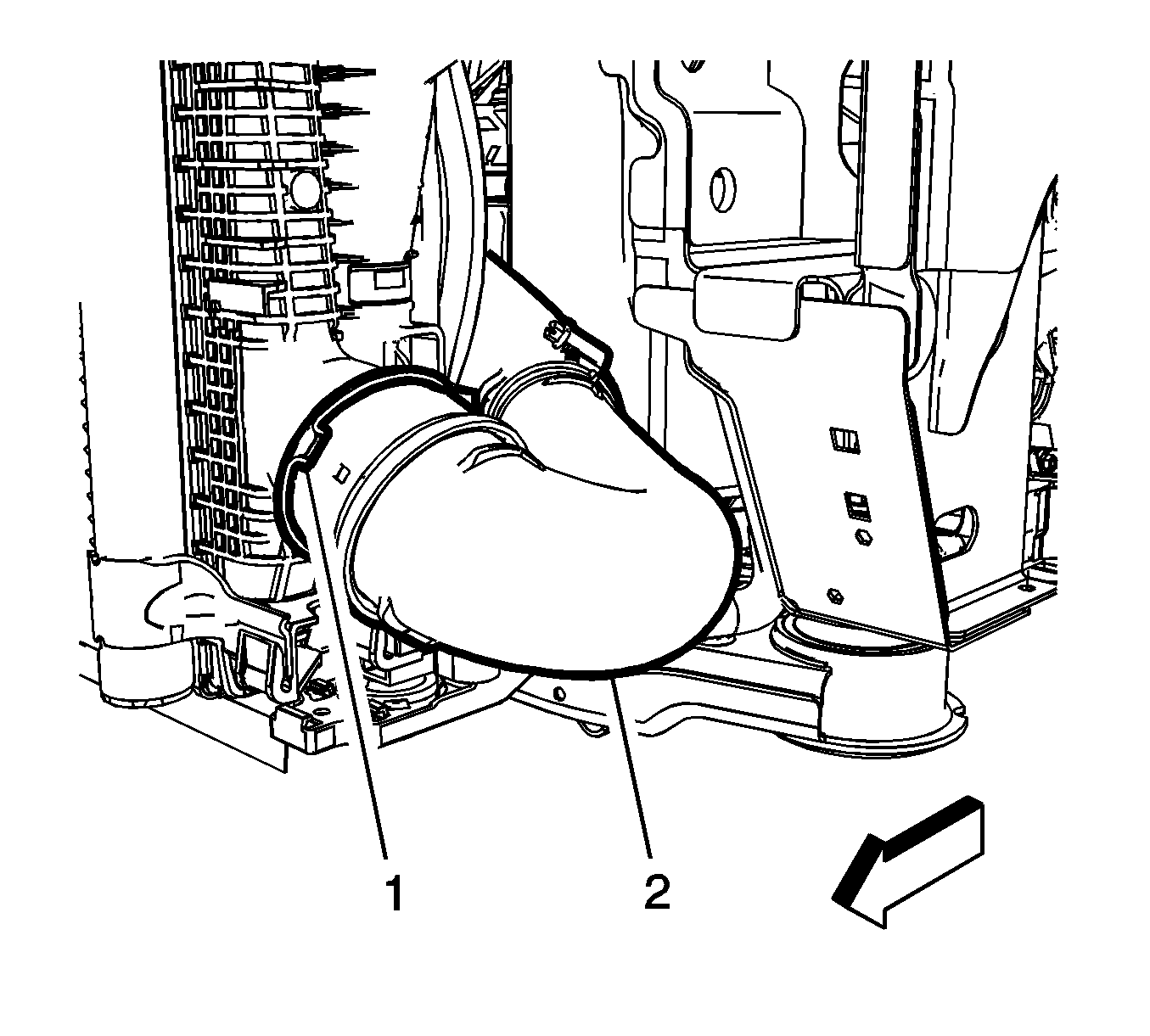

    4. Fig 3: Release Clip
    GM2868560Courtesy of GENERAL MOTORS COMPANY
  4. Pull the release clip (1) outward and disconnect the charge air cooler outlet air tube (2) from the charge air cooler.
  5. Remove the charge air cooler outlet air tube (2) from the vehicle.
