Installation Procedure

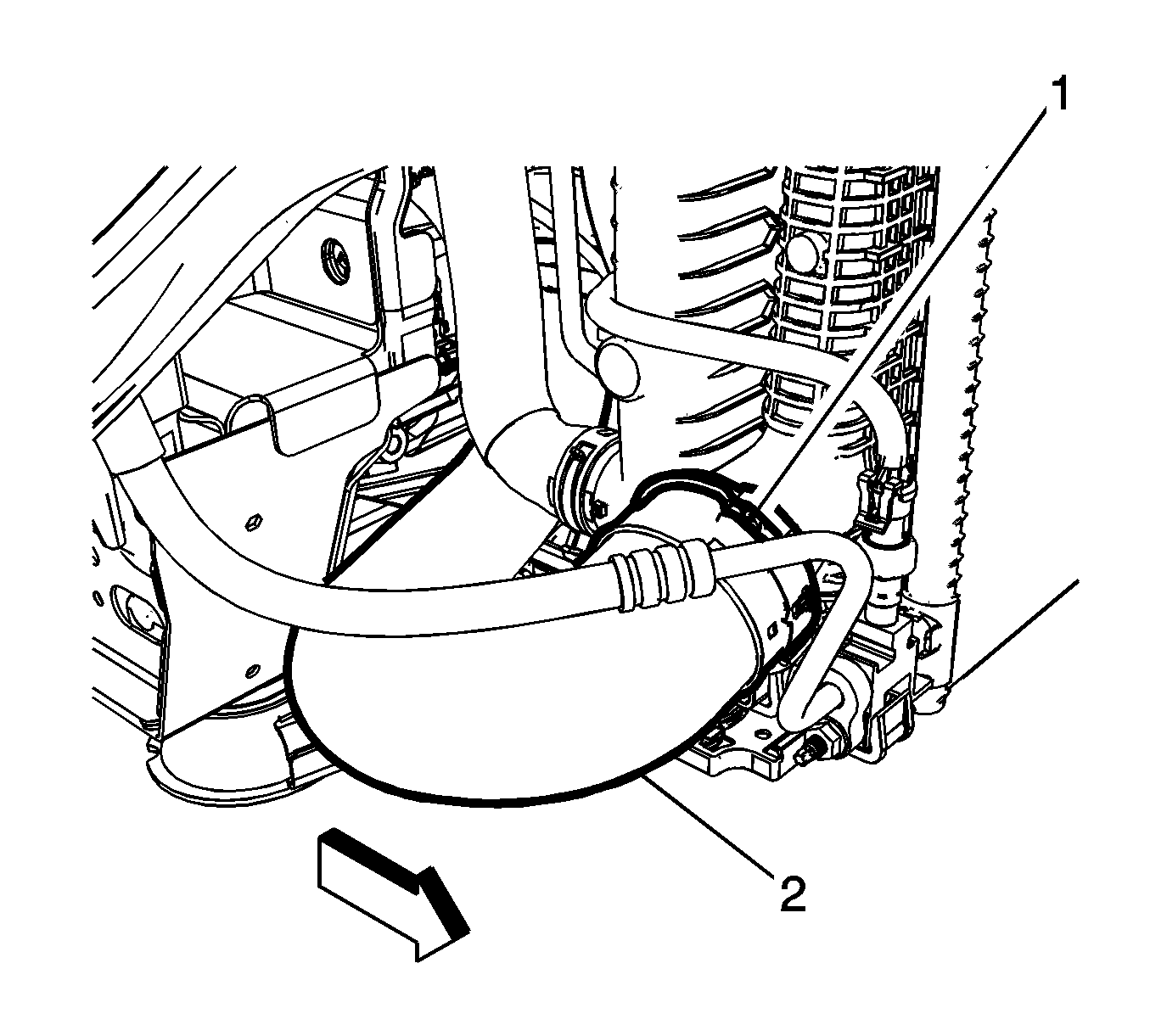

    Fig 1: Release Clip
    GM2868588Courtesy of GENERAL MOTORS COMPANY
  1. Install the charge air cooler inlet air tube (2) to the vehicle.
  2. Connect the charge air cooler inlet air hose (2) to the charge air cooler and engage the retaining clip (1).

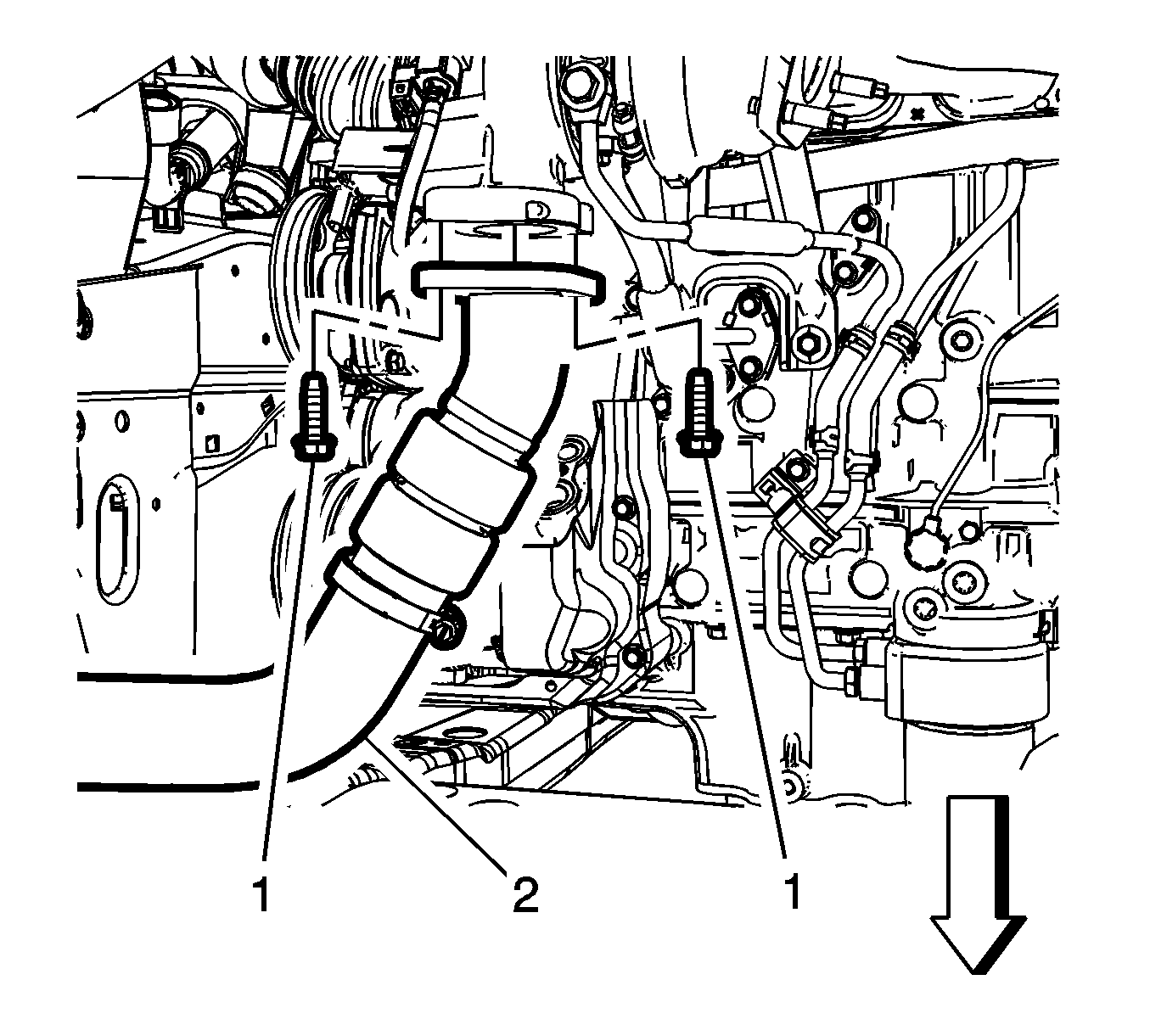

    3. Fig 2: Charge Air Cooler Inlet Air Tube Bolts
    GM2868580Courtesy of GENERAL MOTORS COMPANY
  3. Install the charge air cooler inlet air tube bolts (1) to the charge air cooler inlet air tube (2) and tighten to 10 N.m (89 lb in).
  4. Lower the vehicle.
