Module Power, Ground, Serial Data, and MIL

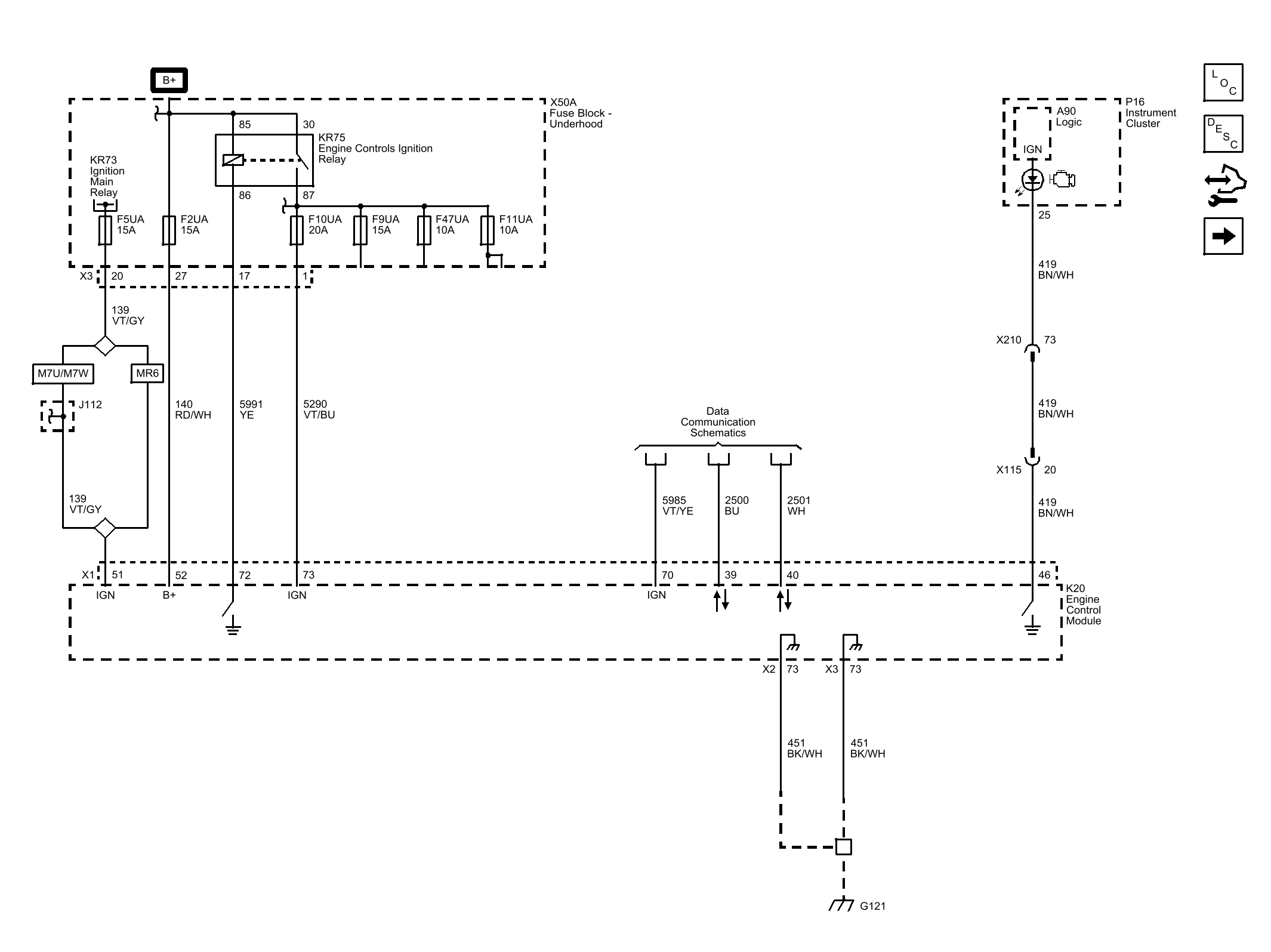

Fig 1: Module Power, Ground, Serial Data, and MIL

GM3768843

Courtesy of GENERAL MOTORS COMPANY
