Ignition Controls - Camshaft, Crankshaft, Knock Sensors, and Camshaft Actuators

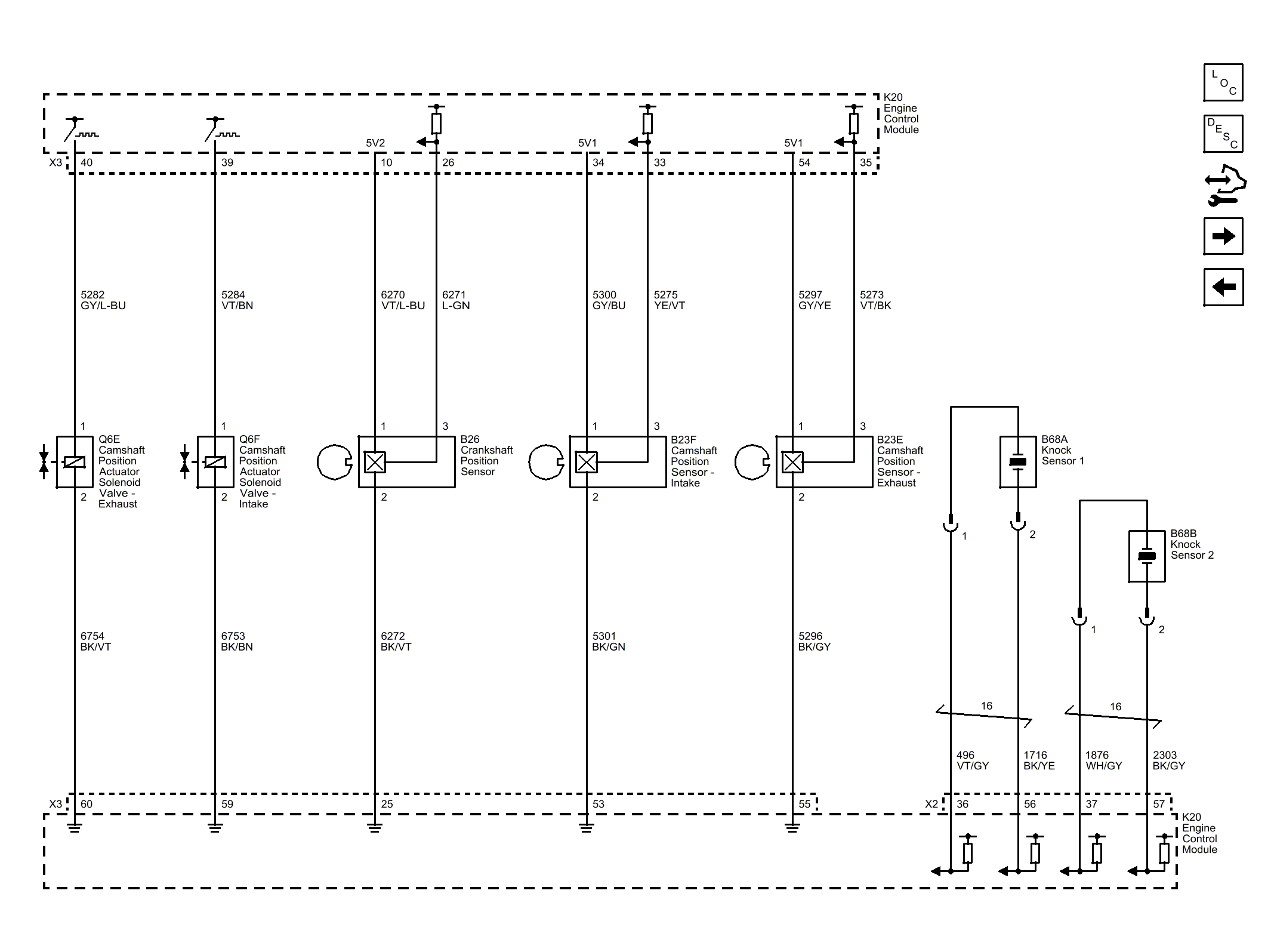

Fig 1: Ignition Controls - Camshaft, Crankshaft, Knock Sensors, and Camshaft Actuators

GM3768850

Courtesy of GENERAL MOTORS COMPANY
