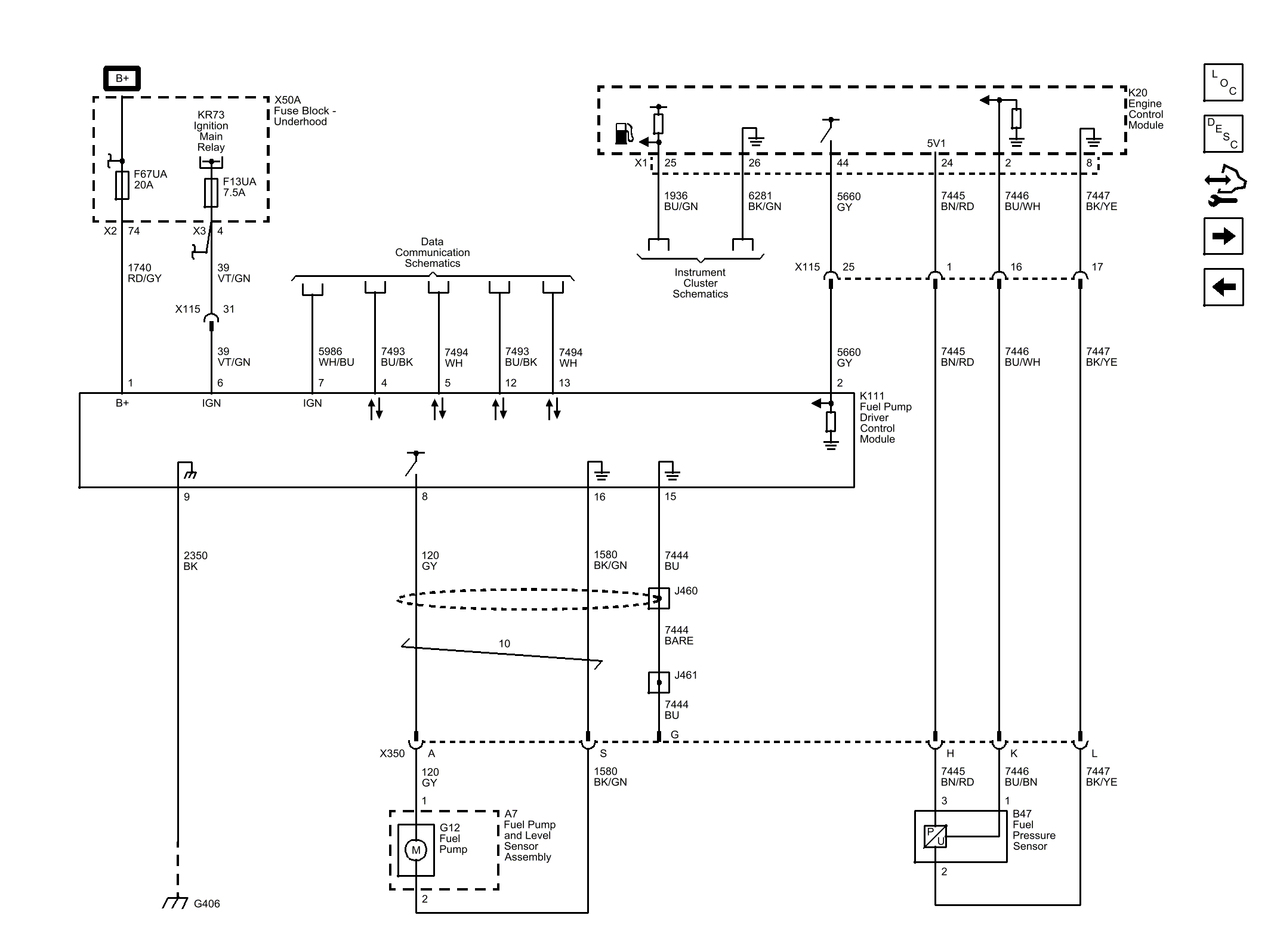

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Controls And Fuel - 2.0L (LTG) - Wiring Schematic Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Fuel Controls - Fuel Pump Controls
