Fuel Controls - Fuel Injectors, Fuel Composition, and High Pressure Controls

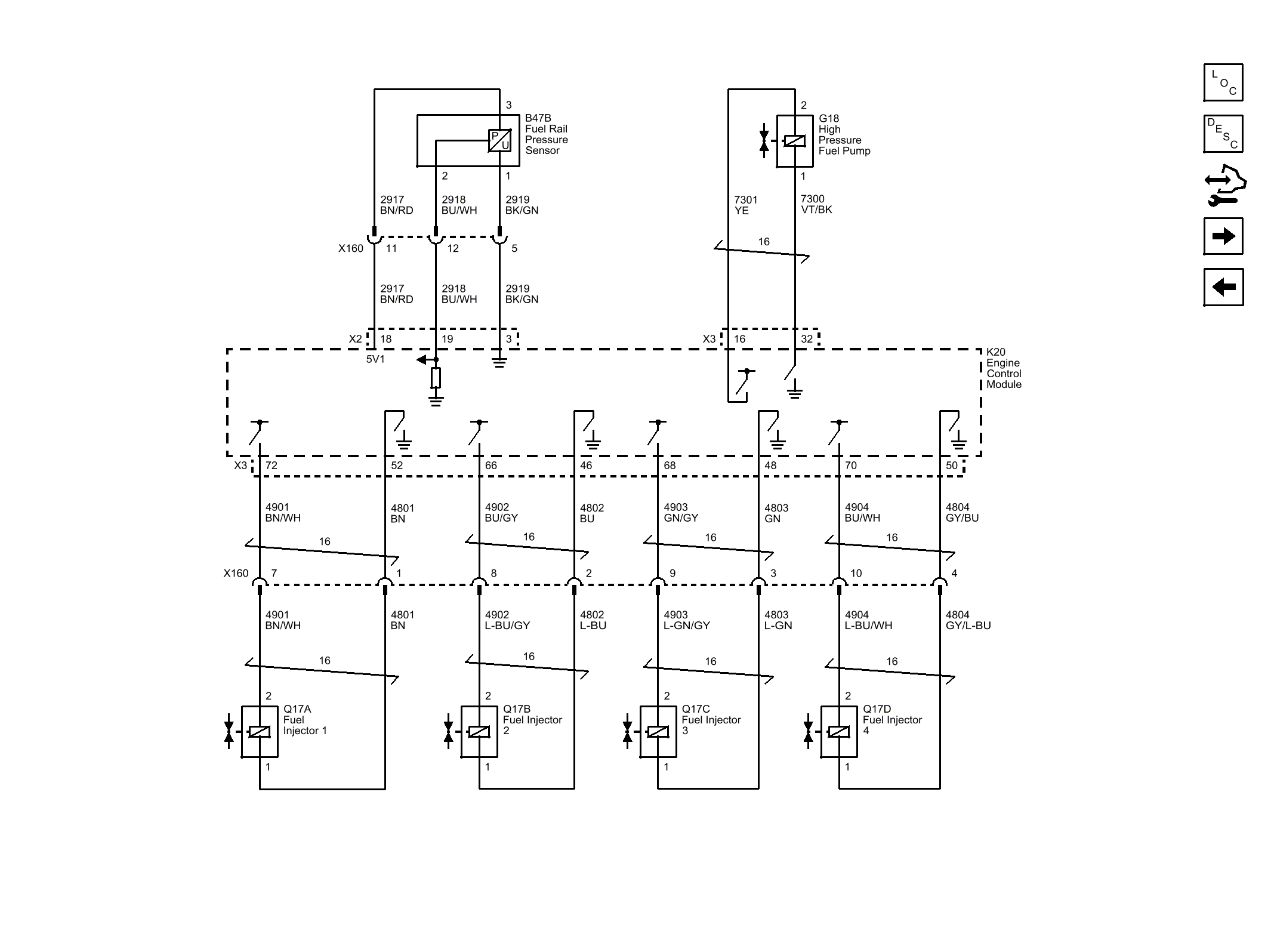

Fig 1: Fuel Controls - Fuel Injectors, Fuel Composition, and High Pressure Controls

GM3769074

Courtesy of GENERAL MOTORS COMPANY
