Controlled/Monitored Subsystem References

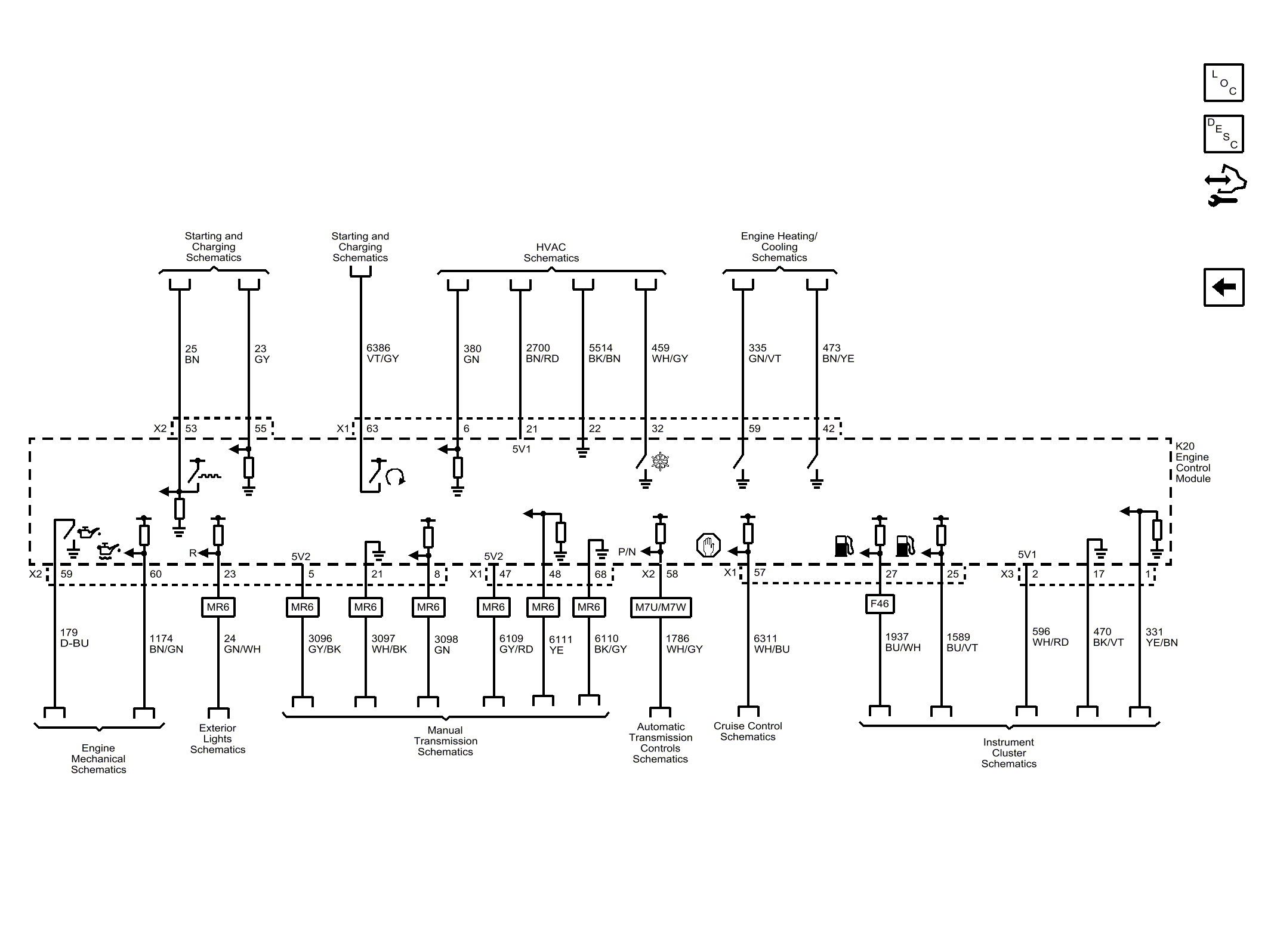

Fig 1: Controlled/Monitored Subsystem References
GM3769573Courtesy of GENERAL MOTORS COMPANY
