5V2, 5V3, 5V4, and Low Reference Bus (2 of 2)

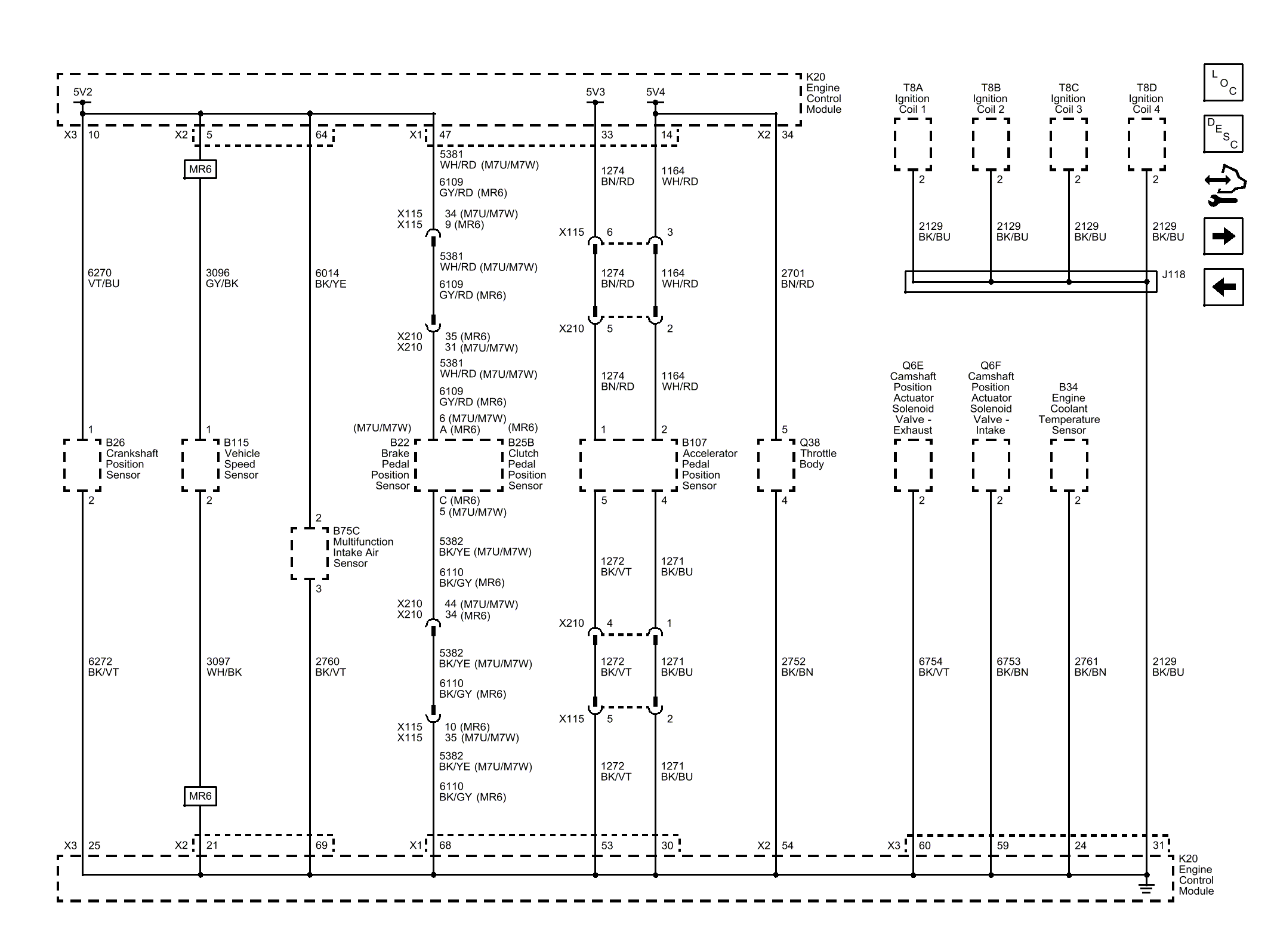

Fig 1: 5V2, 5V3, 5V4, and Low Reference Bus (2 of 2)

GM3768845

Courtesy of GENERAL MOTORS COMPANY
