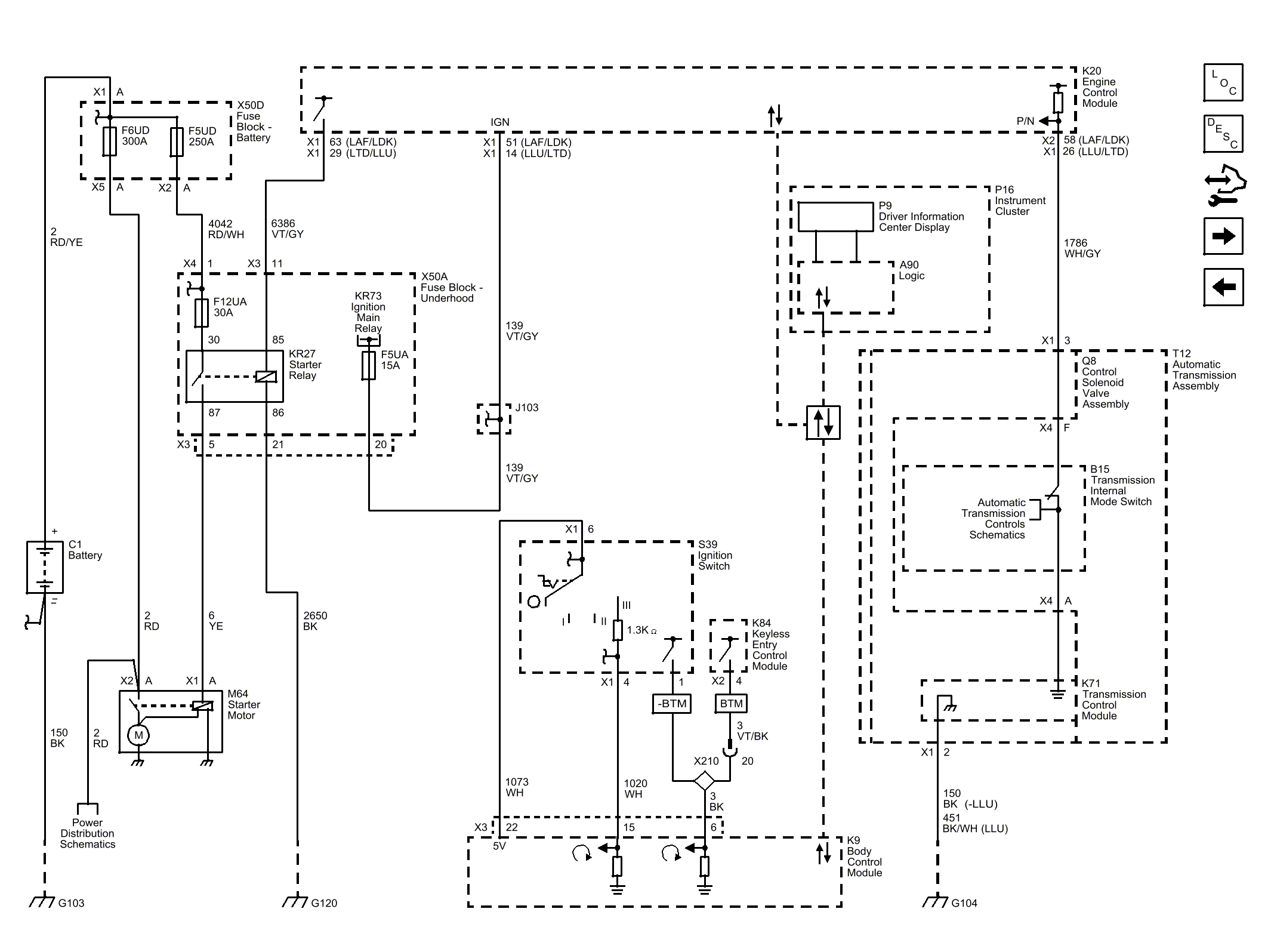

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System (12-Volt) - Wiring Schematic Diagrams >> Schematic Wiring Diagrams >> Starting and Charging Schematics >> Starting (CZ2)
