Installation Procedure

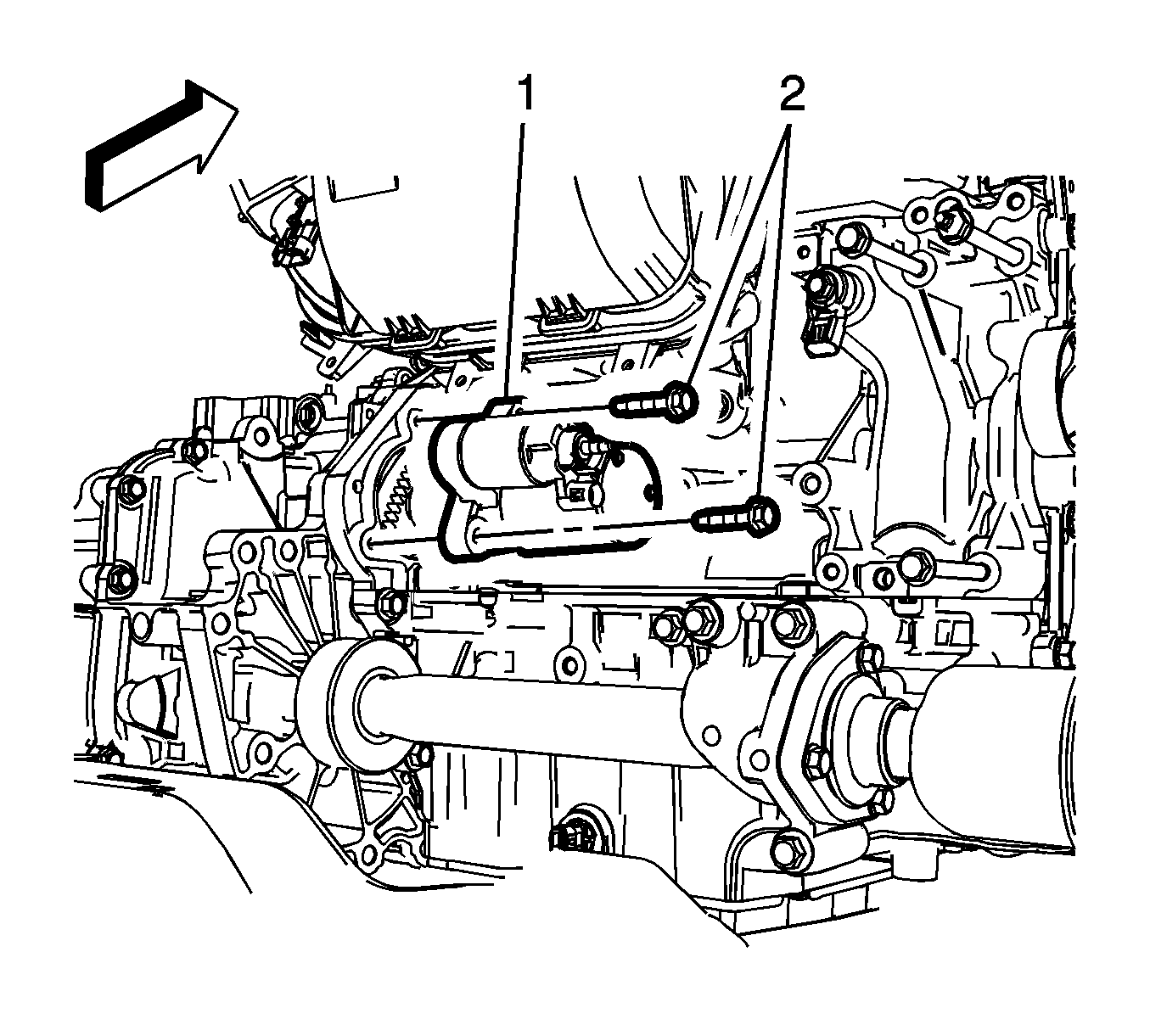

    Fig 1: Starter Mounting Fasteners And Starter
    GM2814022Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the starter(1) and tighten the fasteners (2) to 22 N.m (16 lb ft).

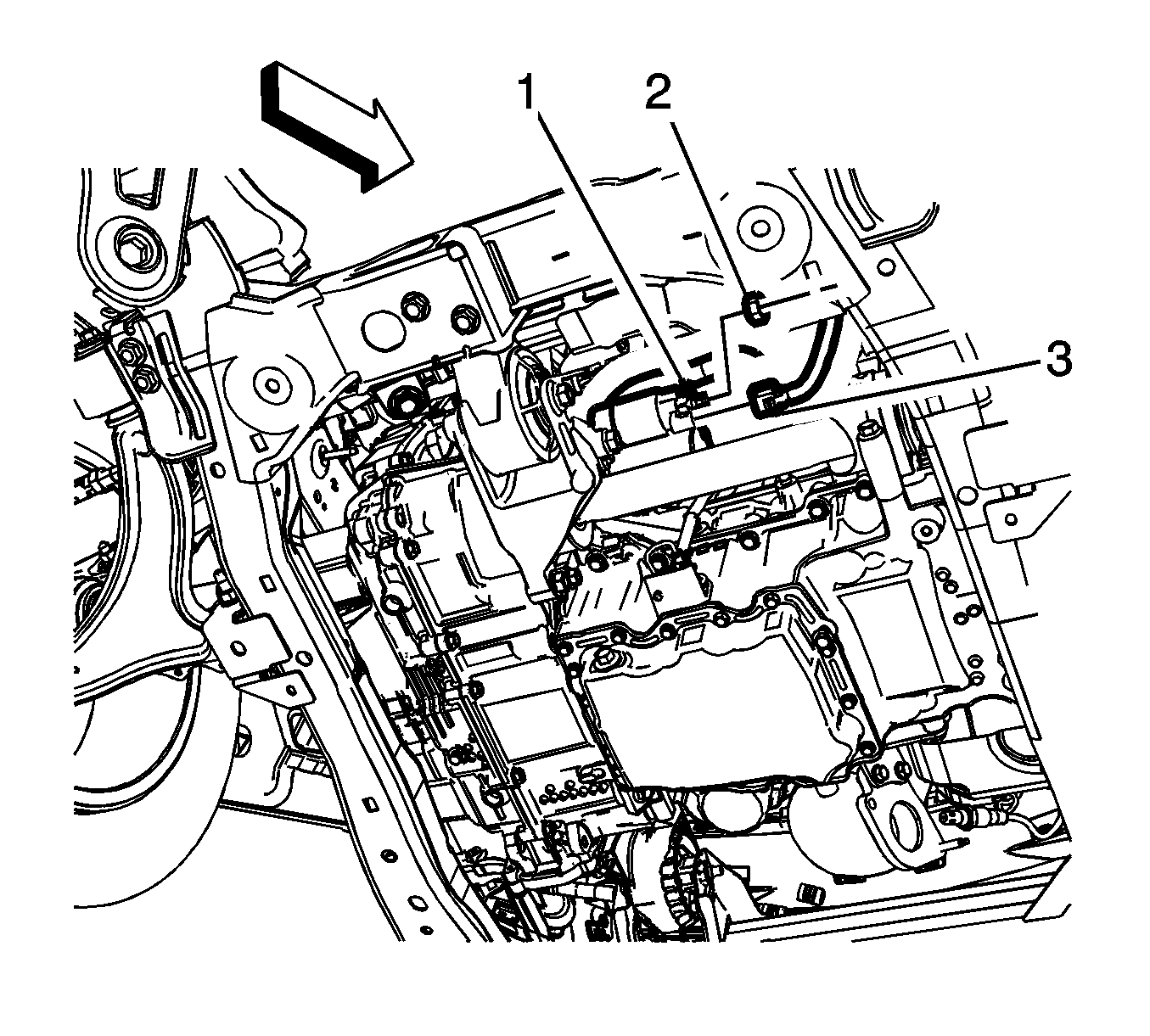

    2. Fig 2: Battery Positive Cable Terminal And Engine Harness Connector
    GM2814017Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery positive cable terminal (1) to the starter solenoid and tighten the fastener (2) to 10 N.m (89 lb in).
  3. Install the engine wiring harness connector (3) to the starter solenoid.
  4. Install the exhaust front pipe. Refer to EXHAUST FRONT PIPE REPLACEMENT (LTG FWD) .
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
