Installation Procedure

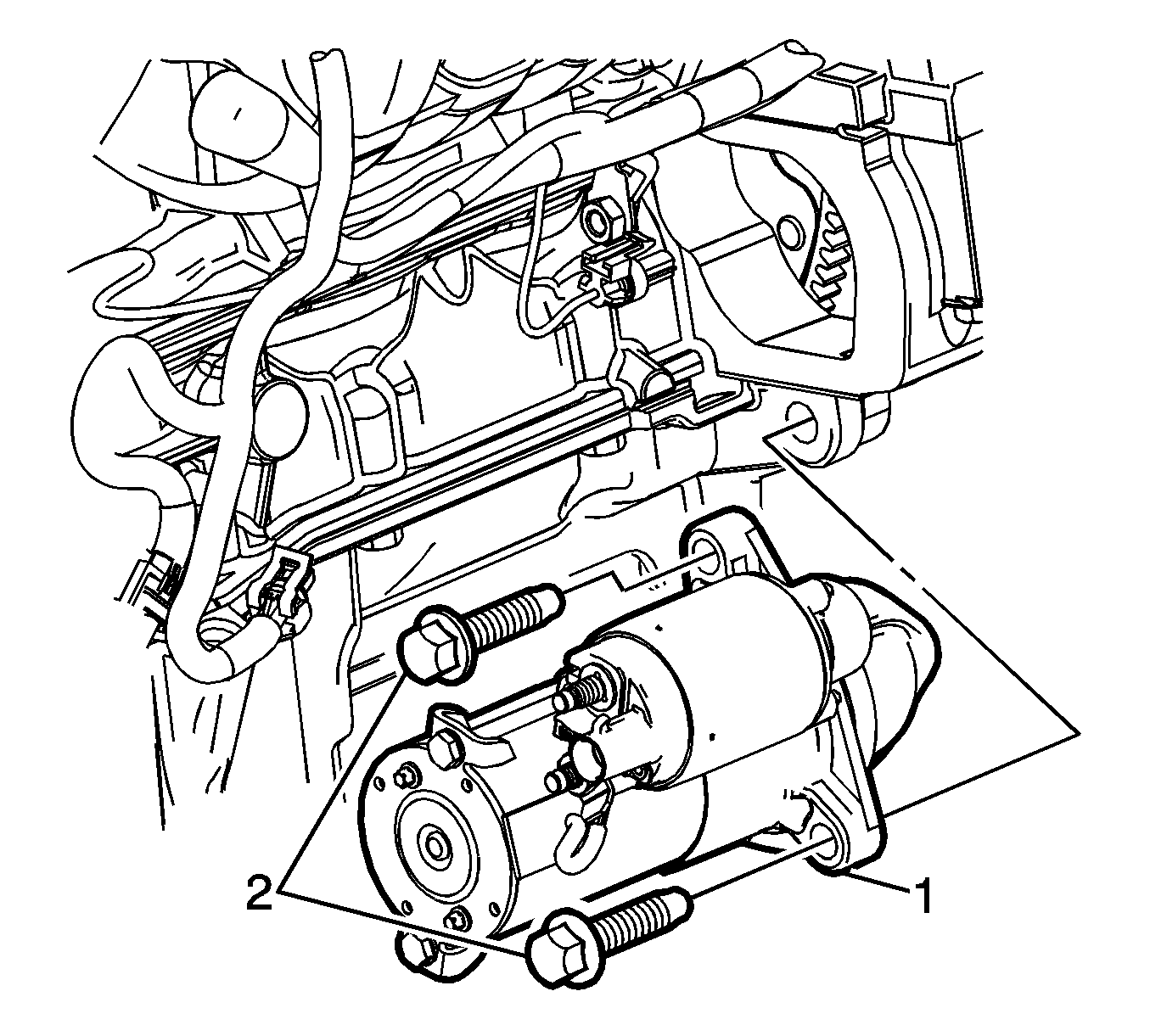

    Fig 1: View Of Starter Motor
    GM2102330Courtesy of GENERAL MOTORS COMPANY
  1. Position the starter (1) to the engine.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the starter mounting fasteners (2) and tighten to 58 N.m (43 lb ft).

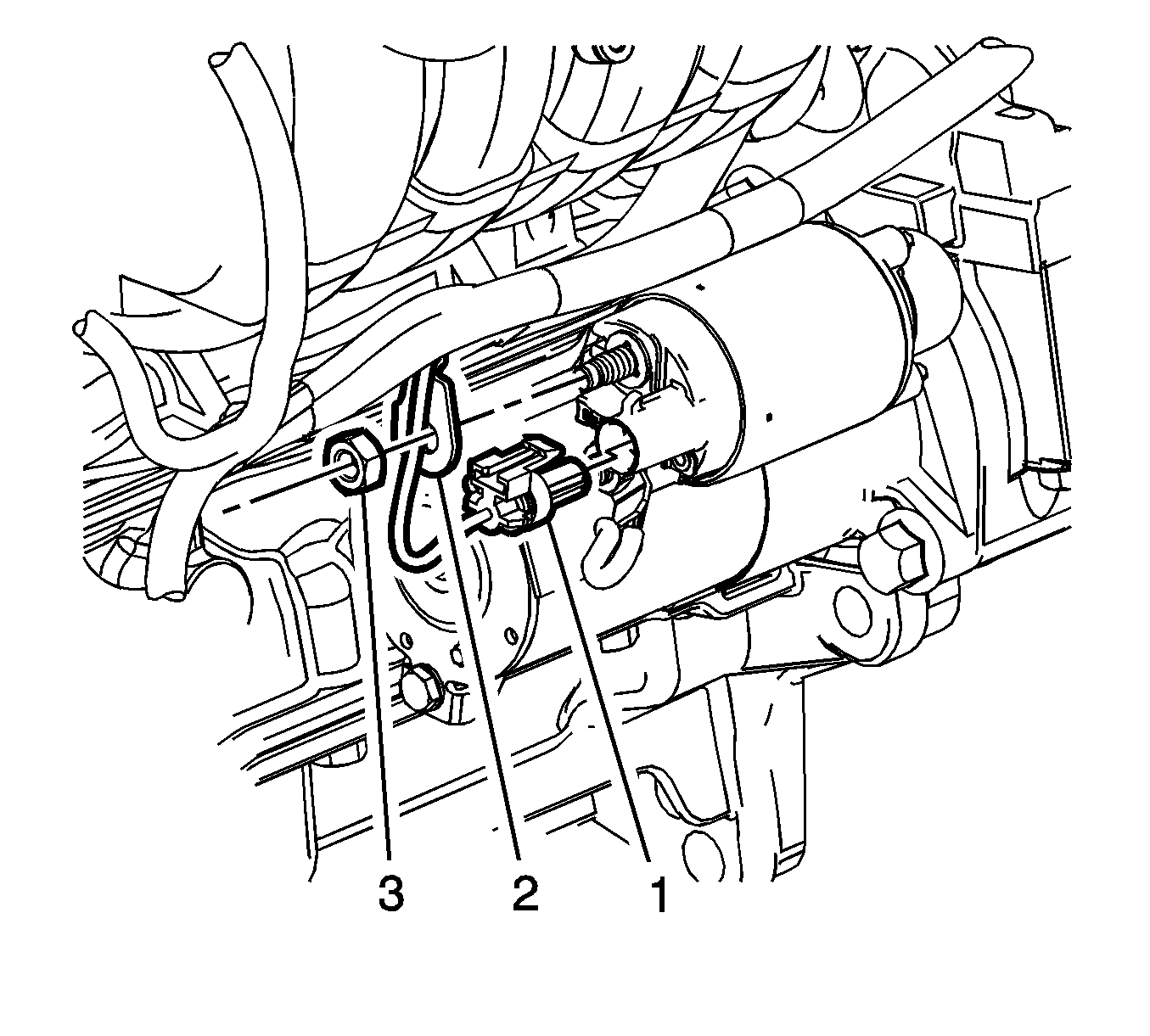

    3. Fig 2: Engine Harness Connector
    GM2680864Courtesy of GENERAL MOTORS COMPANY
  3. Install the positive battery cable terminal (2) to the starter. Ensure that the anti-rotational tab is correctly located into the indexing slot.
  4. Install the starter solenoid terminal fastener (3) and tighten to 11 N.m (8 lb ft).
  5. Connect the engine harness connector (1) to the starter.
  6. Lower the vehicle.
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
