Generator Bracket Replacement (LUK)

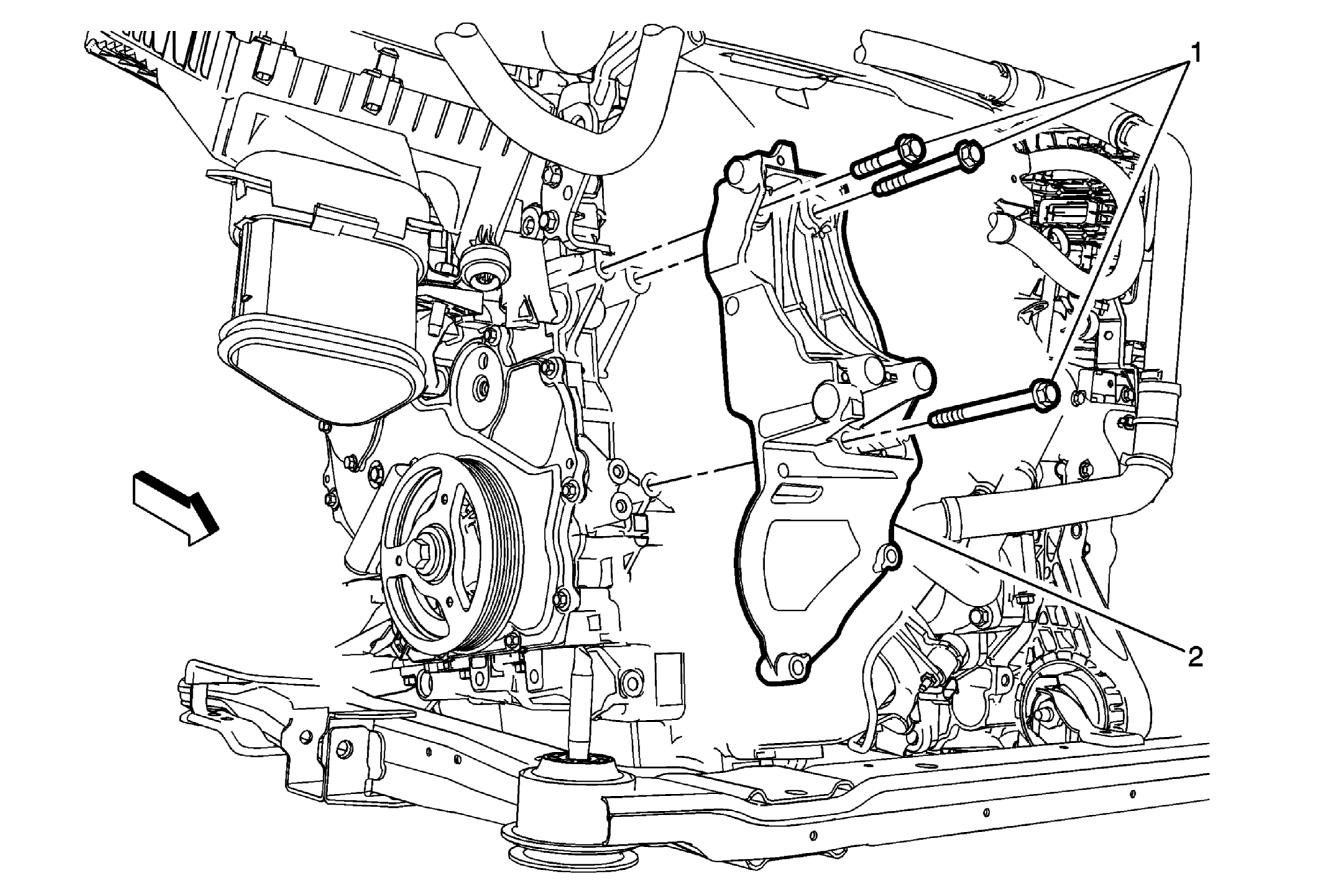

Fig 1: Generator Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the starter generator. Refer to Starter Generator Replacement . Reposition the A/C compressor. Refer to Air Conditioning Compressor Replacement (LUK) .
1	Generator and Air Conditioning Compressor Bracket Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Generator and Air Conditioning Compressor Bracket

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the starter generator. Refer to Starter Generator Replacement .
Reposition the A/C compressor. Refer to Air Conditioning Compressor Replacement (LUK) .

Generator and Air Conditioning Compressor Bracket Fastener (Qty:3)

CAUTION:

Tighten
22 N.m (16 lb ft)

Generator and Air Conditioning Compressor Bracket
