Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
    2. Fig 1: Positive Battery Cable Terminal, Nut And Fuse Block Cover
    GM2195932Courtesy of GENERAL MOTORS COMPANY
  2. Open the battery fuse block cover (1).
  3. Remove the battery positive fastener (2) from battery fuse block and detach the battery positive cable retainers from the battery tray.
    4. Fig 2: Battery Negative Fastener
    GM2813634Courtesy of GENERAL MOTORS COMPANY
  4. Remove the battery negative fastener (1) and the battery negative cable (2), from the left front frame rail.
  5. Remove the battery positive and negative cable (3) from the left front frame rail.
  6. Remove the battery negative cable ground fastener (4) and remove the battery negative cable (5).
  7. Detach the battery positive and negative cable retainer (6), from the battery tray.
    8. Fig 3: Battery Positive And Negative Cable Retainers
    GM2813636Courtesy of GENERAL MOTORS COMPANY
  8. Detach the battery positive and negative cable retainers (1).
  9. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    10. Fig 4: Starter Solenoid Fastener
    GM2813639Courtesy of GENERAL MOTORS COMPANY
  10. Remove the starter solenoid fastener (2) and remove the battery positive cable (1) from the starter solenoid.
  11. Remove the protective boot (3) and the generator battery positive cable fastener (4).
  12. Remove the battery positive cable (5) from the generator.

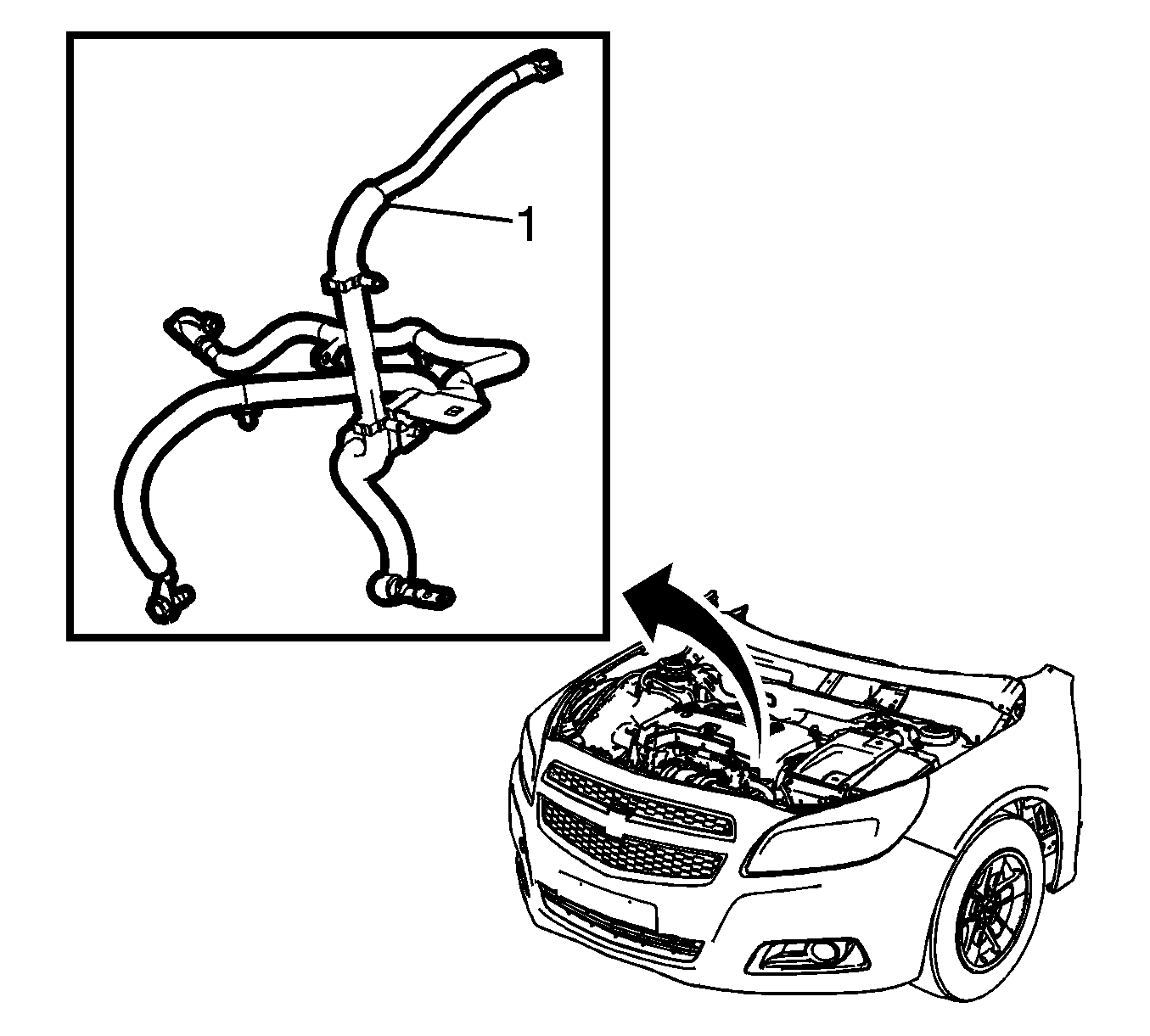

    13. Fig 5: Battery Positive And Negative Cable
    GM2813641Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Observe how the battery positive and negative cable was routed within the engine compartment.

  13. Remove the battery positive and negative cable (1) from the engine compartment.
