Installation Procedure

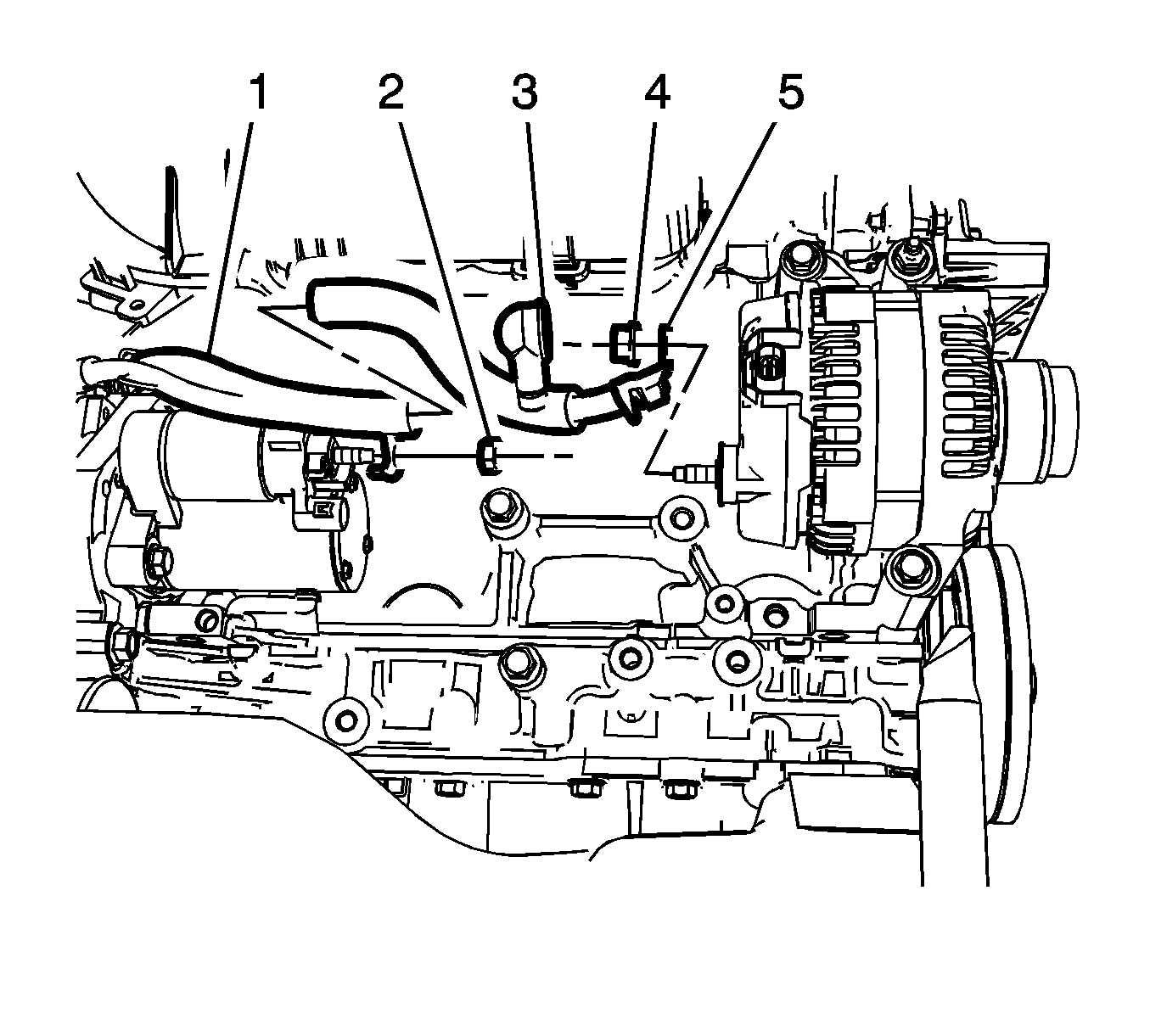

    Fig 1: Starter Solenoid Fastener
    GM2813639Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery positive cable terminal (5) and fastener (4) to the back of the generator. Tighten to 15 N.m (11 lb ft).
  2. Install the battery positive cable (1) to the starter solenoid and tighten the fastener (2) to 10 N.m (89 lb in).

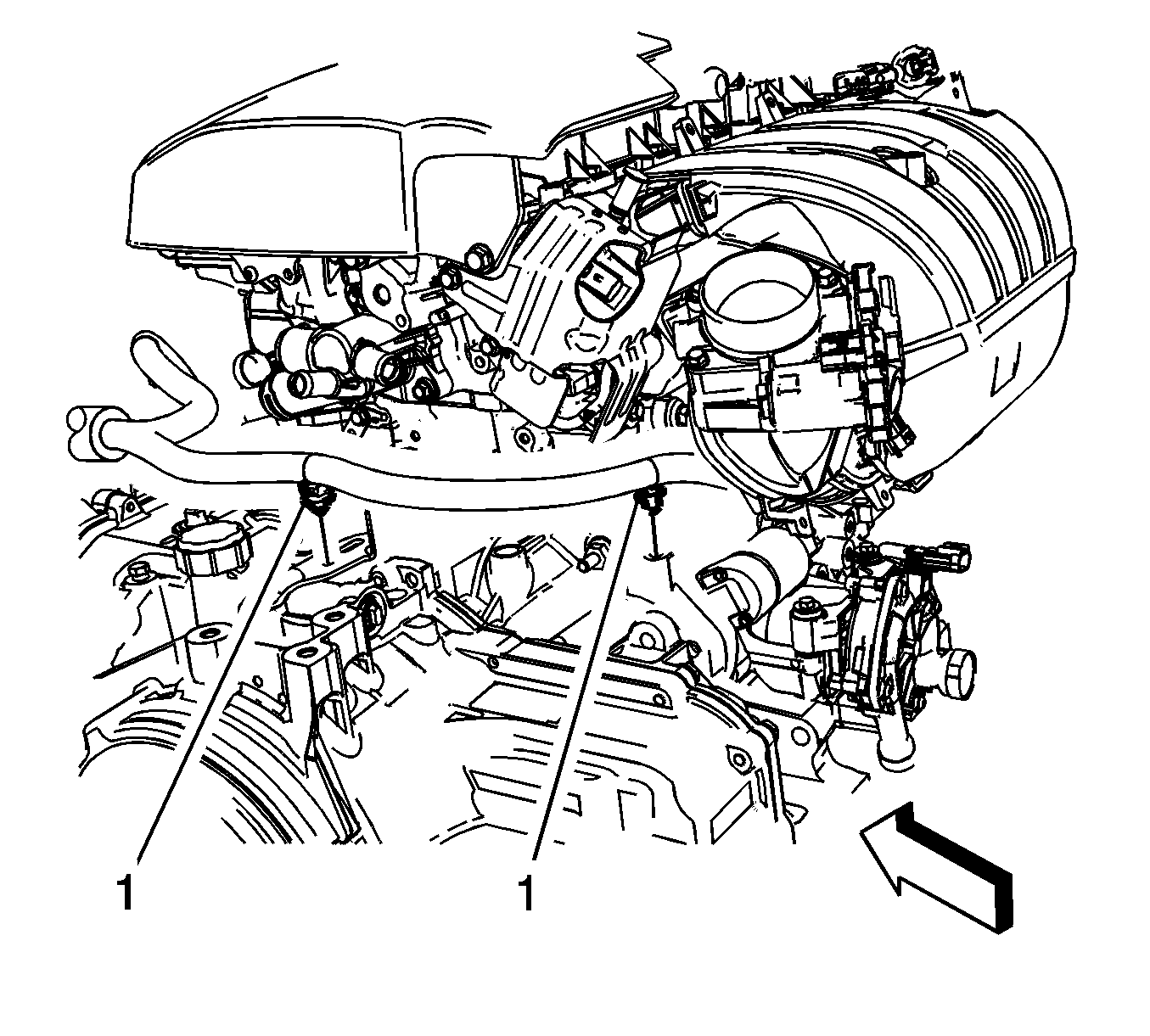

    3. Fig 2: Battery Positive And Negative Cable Retainers
    GM2813636Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery positive and negative cable retainers (1), to the engine and transmission shift cable bracket.

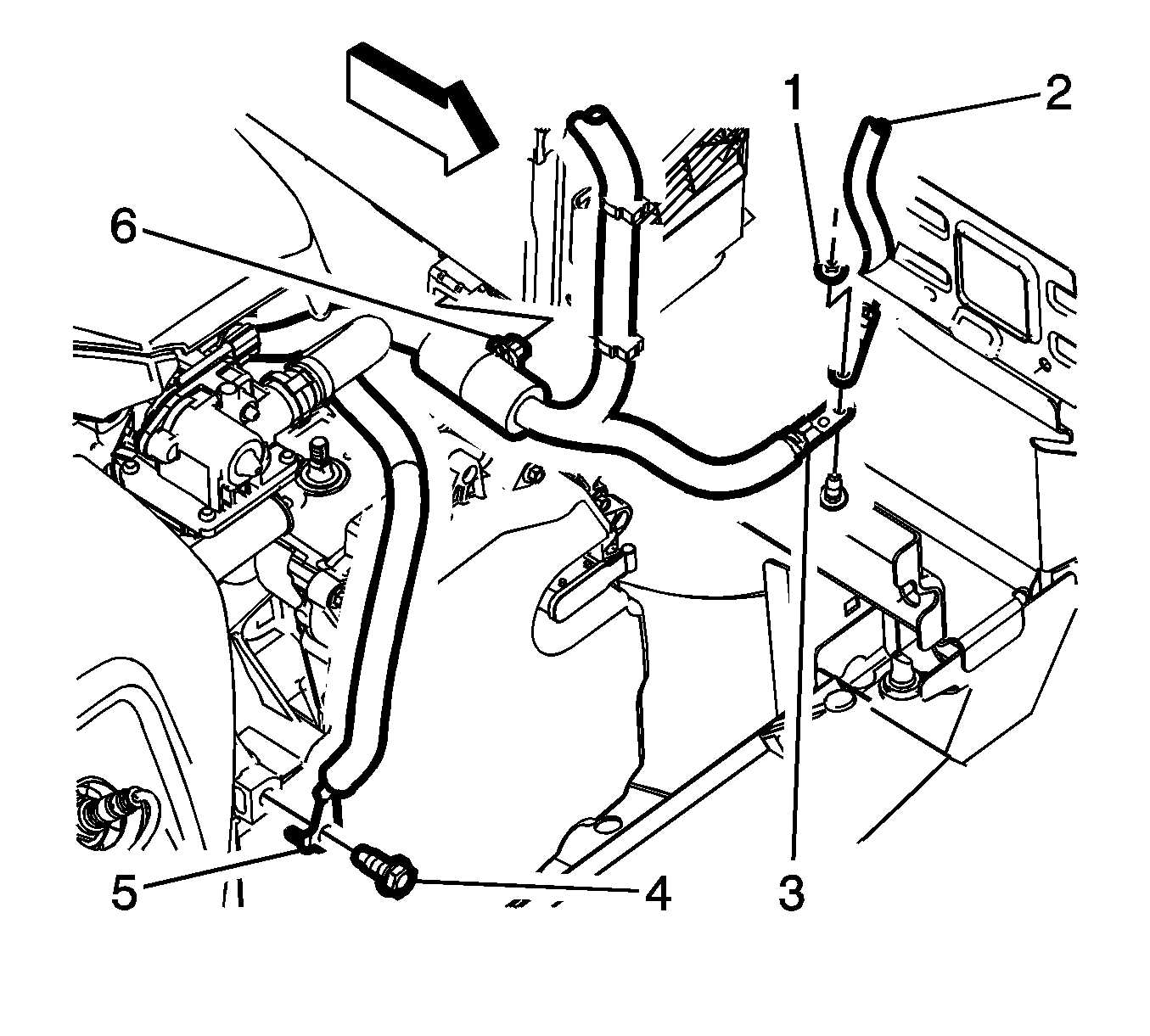

    4. Fig 3: Battery Negative Fastener
    GM2813634Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery negative cable terminal (5), to the transmission, and tighten the fastener (4) to 25 N.m (18 lb ft).
  5. Install the battery positive and negative cable ground terminal (3) and the battery negative cable (2) to the frame stud. Tighten the fastener (1) to 25 N.m (18 lb ft).
  6. Install the battery positive and negative cable retainer (6), to the battery tray bracket.

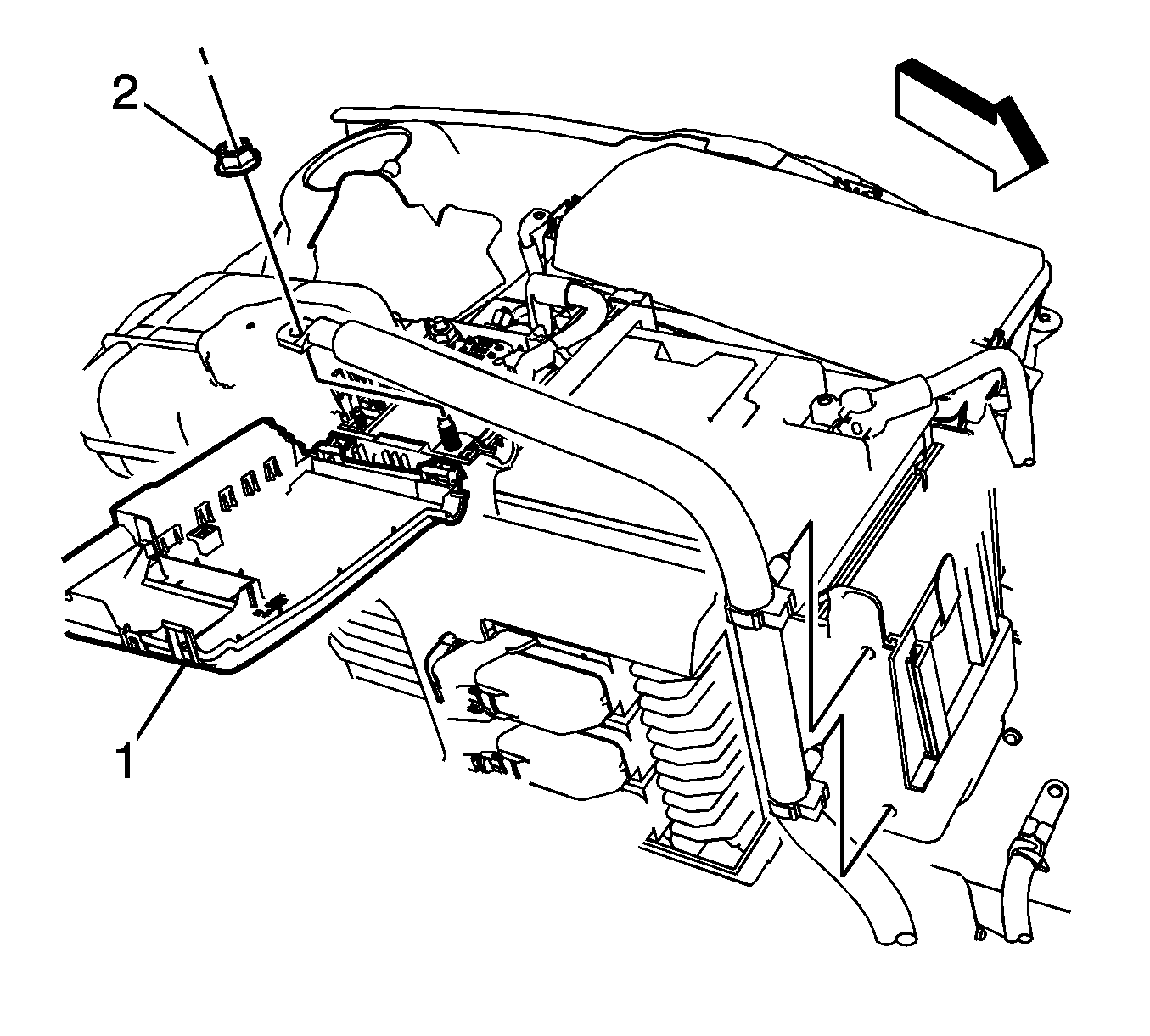

    7. Fig 4: Positive Battery Cable Terminal, Nut And Fuse Block Cover
    GM2195932Courtesy of GENERAL MOTORS COMPANY
  7. Install the battery positive cable terminal and fastener (2), to the battery fuse block. Tighten to 12 N.m (106 lb in).
  8. Close the battery fuse block cover (1).
  9. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
