Installation Procedure

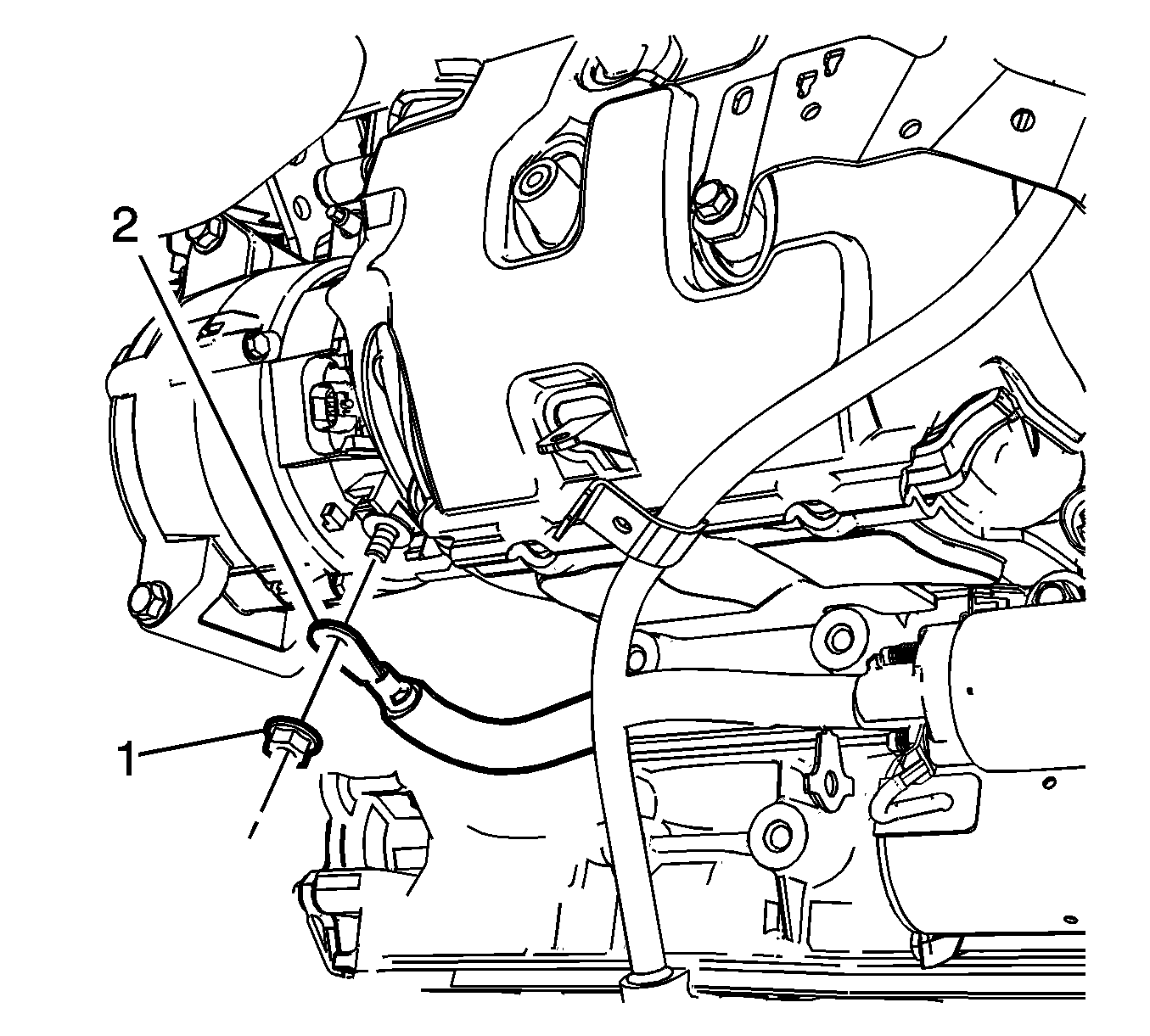

    Fig 1: Generator Fastener And Battery Positive Terminal
    GM2680837Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery positive cable terminal (2) and fastener (1) to the back of the generator. Tighten to 15 N.m (11 lb ft).

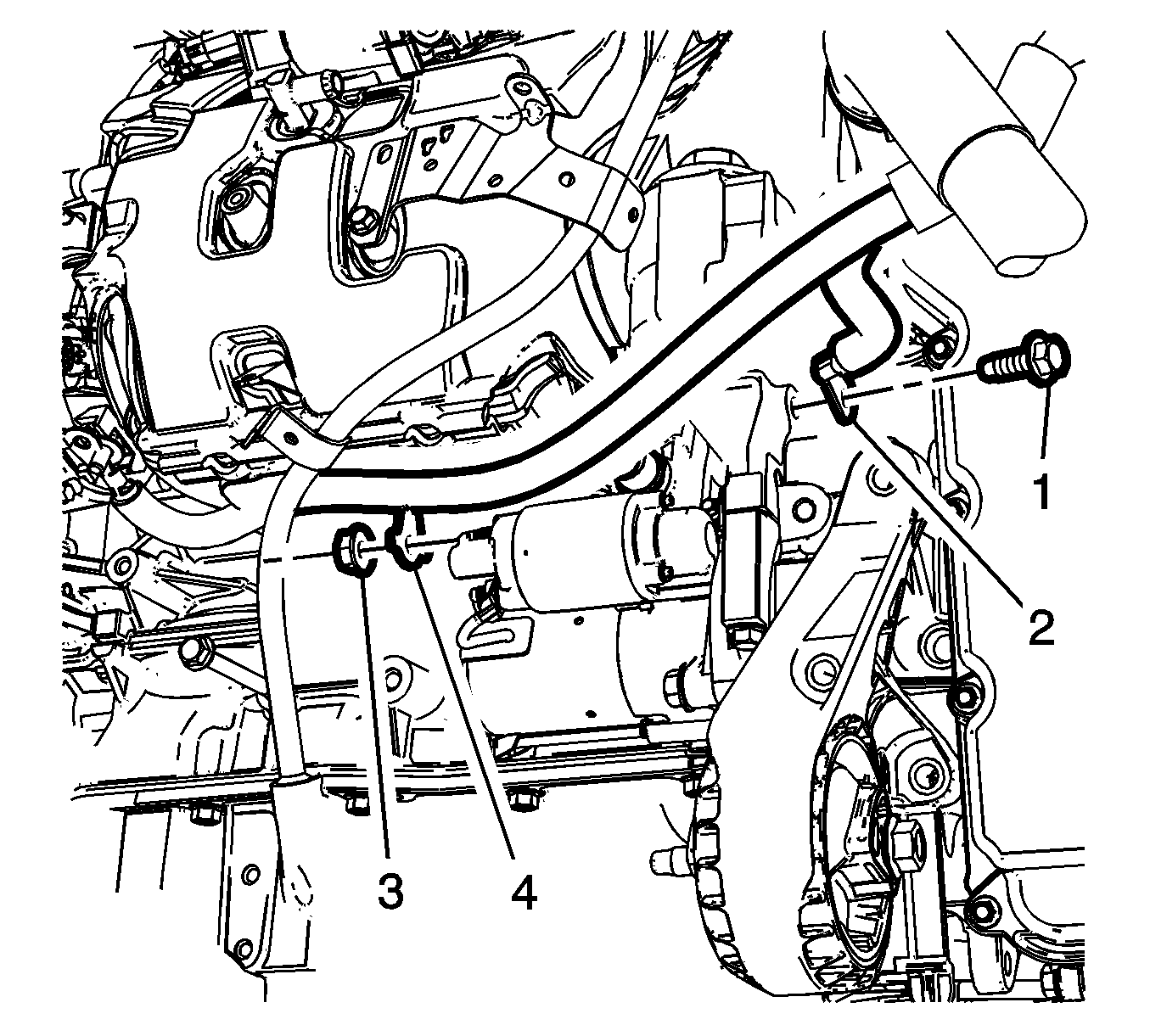

    2. Fig 2: Battery Positive Cable Terminal And Fastener
    GM2680835Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery positive cable terminal (4) and fastener (3) to the starter solenoid. Tighten to 10 N.m (89 lb in).
  3. Install the battery negative ground terminal (2) to the engine block and tighten the fastener (1) to 25 N.m (18 lb ft).

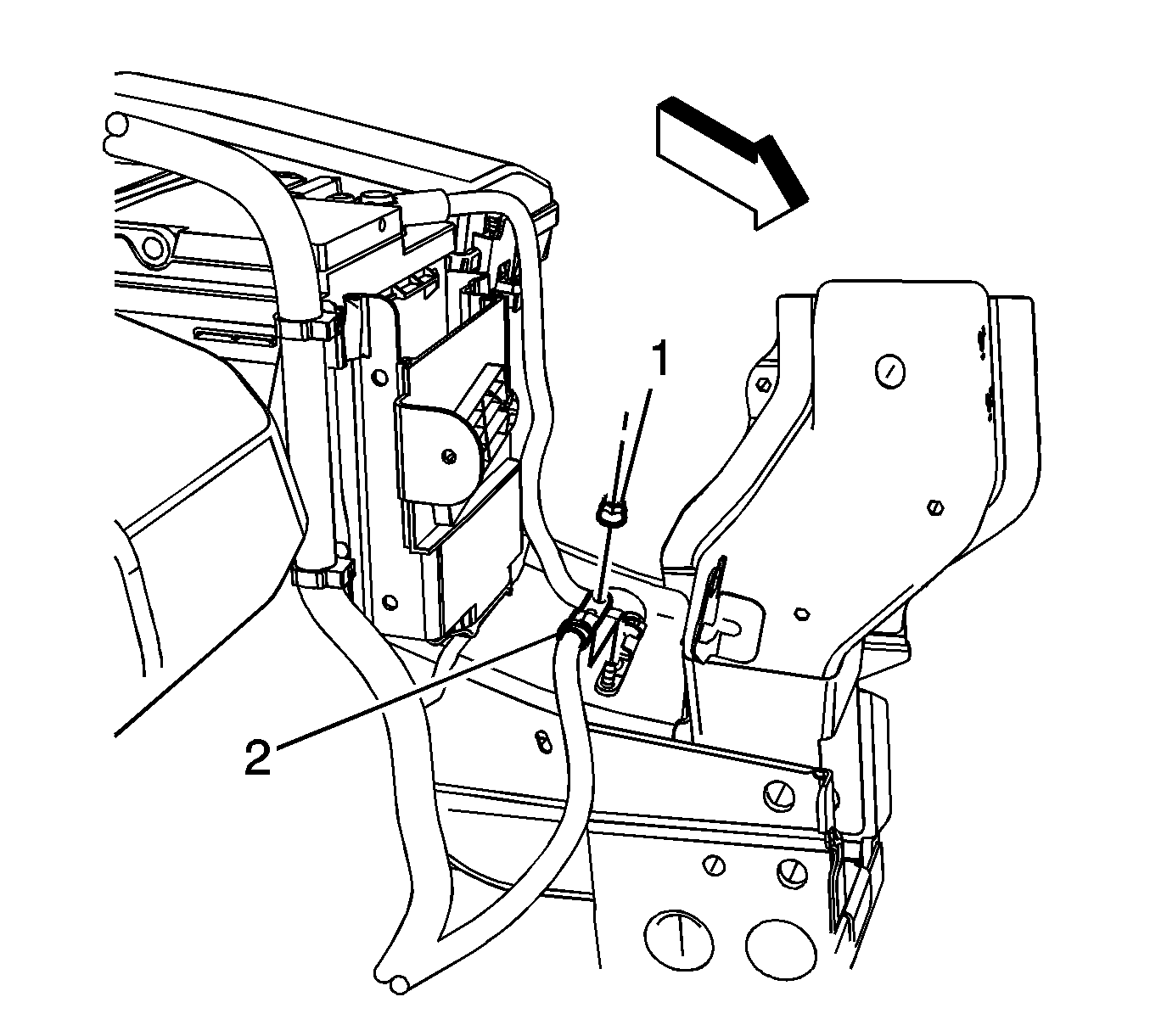

    4. Fig 3: Battery Negative Nut & Terminal
    GM2202529Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery negative cable terminal (2) and fastener (1) to the left front frame rail. Tighten to 9 N.m (80 lb in).
    5. Fig 4: Positive Battery Cable Terminal, Nut And Fuse Block Cover
    GM2195932Courtesy of GENERAL MOTORS COMPANY
  5. Install the positive battery cable terminal and fastener(2) to the battery fuse block. Tighten to 12 (106lbin).
  6. Close battery fuse block cover (1) and install battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
