Turbocharger Oil Return Pipe Replacement

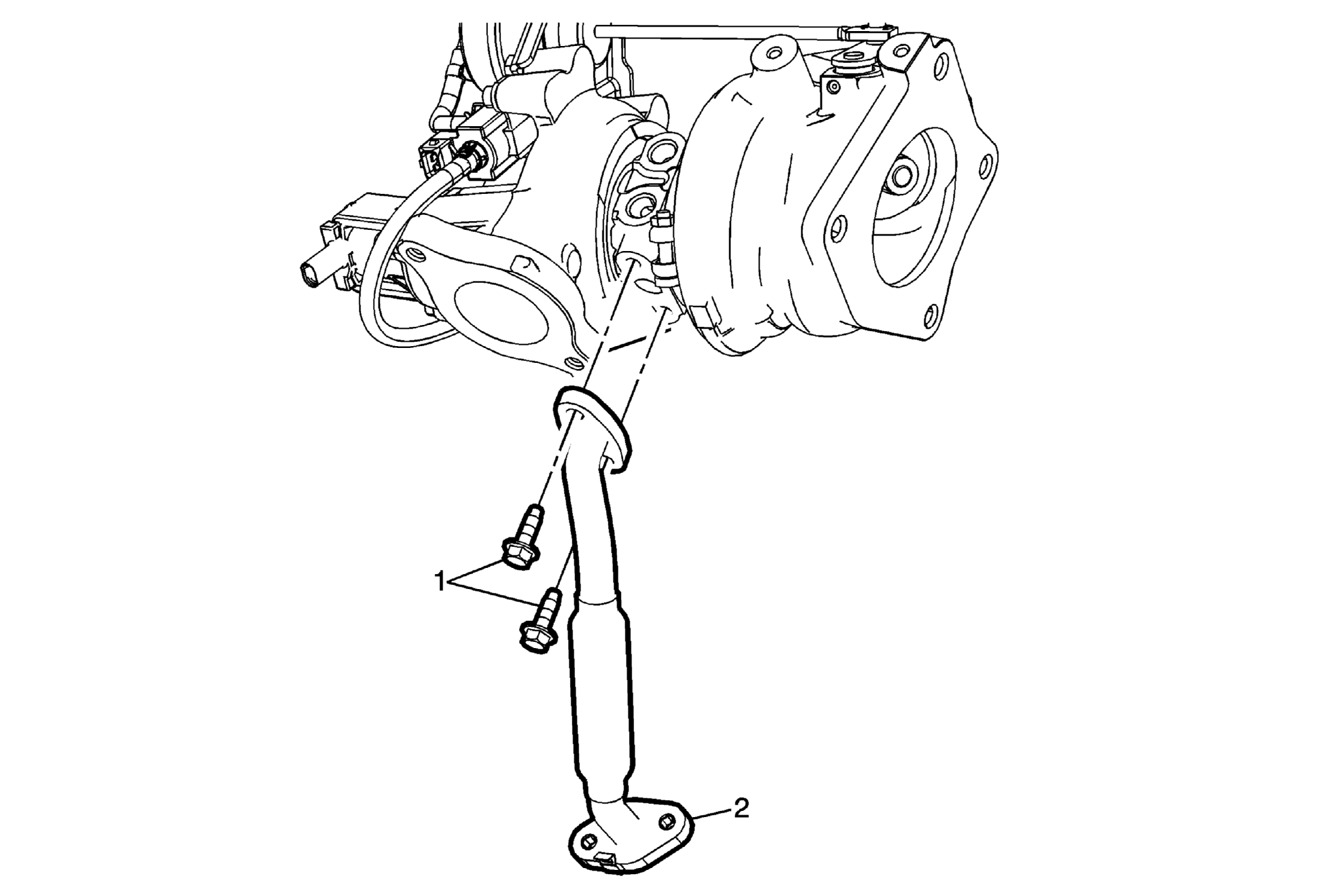

Fig 1: Turbocharger Oil Return Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the turbocharger. Refer to Turbocharger Replacement .
1	Turbocharger Oil Return Pipe Fastener (Qty;2) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Turbocharger Oil Return Pipe Procedure  A NEW turbocharger oil return gasket should be used whenever installing the pipe.
